GMA-125-R - Eaton 0.125A 250V Fast-Acting Glass Tube Fuse 5x20mm 10kA Interrupt Rating

GMA-125-R

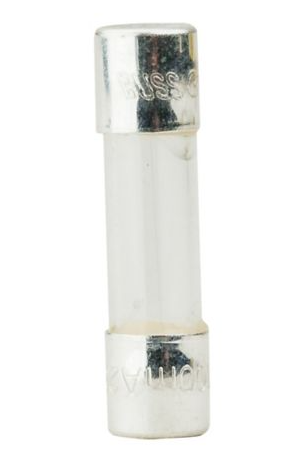

GMA-125-R is an Eaton Bussmann series fast-acting glass tube fuse rated at 0.125 amperes and 250 volts AC.This fuse features a 5 mm x 20 mm size, fast-acting blow characteristic, and a high interrupt rating of 10,000 amperes at 125 VAC and 35 amperes at 250 VAC. It is designed for electronic circuit protection with silver-plated brass endcaps and a glass tube construction.

• Amperage Rating: 0.125A
• Voltage Rating: 250 VAC, 32 VDC (self certified)
• Fuse Size: 5 mm x 20 mm
• Blow Characteristic: Fast-acting
• Interrupt Rating: 10 kA at 125 VAC, 35 AIC at 250 VAC
• Connection: Ferrule end x ferrule end
• Material: Silver-plated brass endcaps, glass tube
• Fuse Indicator: Non-indicating
• Mounting Style: Holder/clip
• Compliance: CE Marked, RoHS Compliant
• Response Time: 60 min at 135%, 2 min at 200%

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: GMA-125-R
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : GMA Series
• Type : GMA
• Voltage : 250
• Amperage : 125
• AIC rating : 35A@250V
• Connection : Ferrule
• Diameter : 5
• Barrels : 1

Product Data

• UPC : 05171264786
• GTIN : 00051712647861
• Country of Origin : China
• Dimensions : x 20 mm x
• Weight : 1
• Certification : CE, UL Guide JDYX, File E19180, CSA Certification Class 1422-01, File 53787, PSE Approval
