GMA-1-R - Eaton 1A 250V Fast-Acting Glass Tube Fuse, 5x20mm, 35AIC at 250VAC, Non-Indicating

GMA-1-R

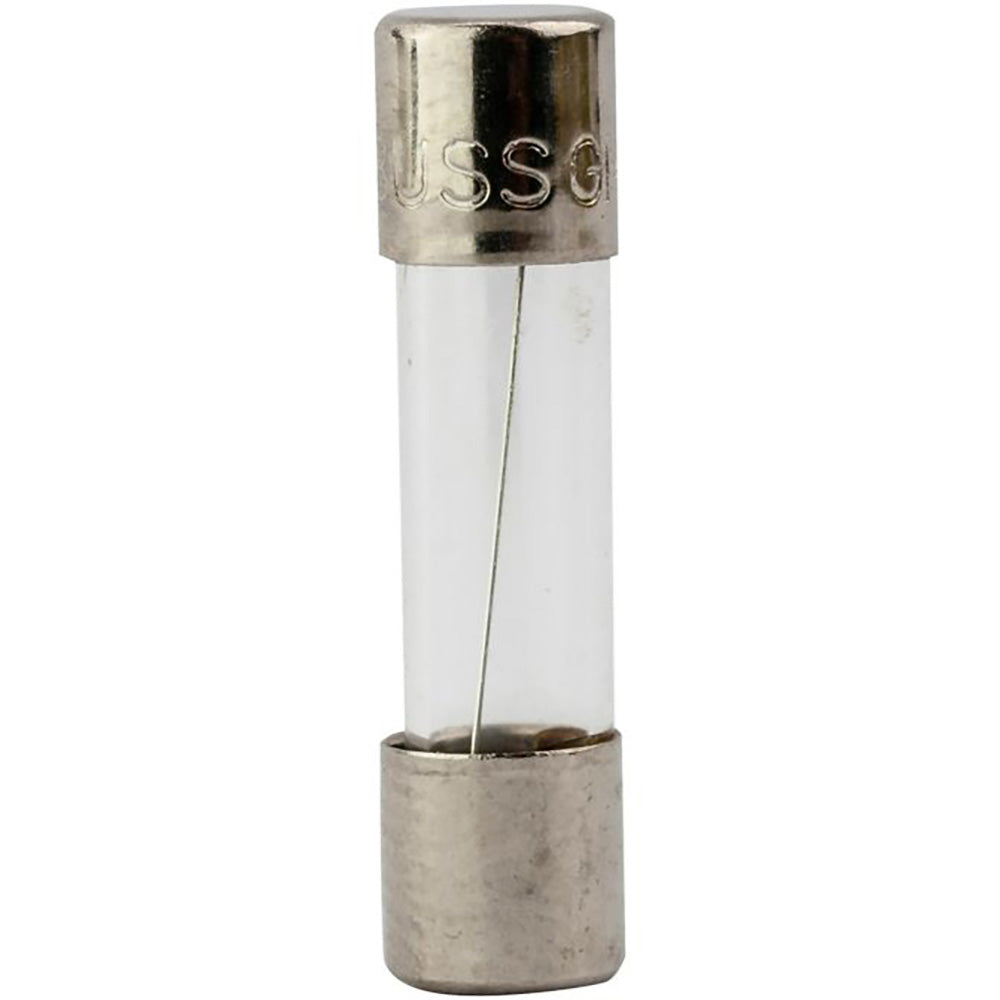

GMA-1-R is an Eaton Bussmann series fast-acting glass tube fuse rated for 1 amp and 250 volts AC.

This fuse features a 5 mm x 20 mm cylindrical glass body with nickel-plated brass endcaps, designed for electronic circuit protection. It has an interrupt rating of 35 AIC at 250 VAC and 10 kAIC at 125 VAC, with a fast response time of 60 minutes at 135% rated current and 2 minutes at 200%. The fuse is non-indicating and RoHS compliant with CE marking.

Key Specifications
• Amperage Rating: 1 A
• Voltage Rating: 250 VAC, 32 VDC (self certified)
• Fuse Type: Fast-acting glass tube
• Dimensions: 5 mm x 20 mm
• Interrupt Rating: 35 AIC at 250 VAC, 10 kAIC at 125 VAC
• Connection: Ferrule end x ferrule end
• Material: Nickel-plated brass endcaps, glass tube body
• Response Time: 60 min at 135%, 2 min at 200%
• Certifications: RoHS Compliant, CE Marked
• Fuse Indicator: Non-indicating

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: GMA-1-R
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : GMA Series
• Type : GMA
• Voltage : 250
• Amperage : 1
• AIC rating : 35A@250V
• Connection : Ferrule
• Diameter : 5
• Barrels : 1

Product Data

• UPC : 05171264783
• GTIN : 00051712647830
• Country of Origin : China
• Dimensions : x 20 mm x
• Weight : 0.00161
• Certification : CE, UL Guide JDYX, File E19180, CSA Certification Class 1422-01, File 53787, PSE Approval
