GMA-1.6-R - Eaton 1.6A 250V Fast-Acting Glass Tube Fuse, 5x20mm, Non-Indicating

GMA-1.6-R

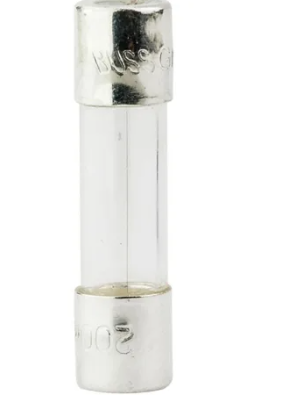

GMA-1.6-R is an Eaton Bussmann series fast-acting glass tube fuse rated at 1.6 amps and 250 volts AC, designed for electronic circuit protection.This fuse features a 5 mm x 20 mm glass tube construction with nickel-plated brass end caps, offering a low breaking capacity and fast response time. It has an interrupt rating of 10,000 AIC at 125 VAC and 100 AIC at 250 VAC. The fuse is non-indicating and requires a fuse holder for mounting. It complies with RoHS and carries CE marking, UL Listing, UL Recognition, CSA Certification, and PSE Approval.

Key Specifications
• Amperage Rating: 1.60 A
• Voltage Rating: 250 VAC, 32 VDC (self certified)
• Fuse Type: Fast-acting glass tube
• Physical Size: 5 mm x 20 mm
• Interrupt Rating: 10,000 AIC at 125 VAC, 100 AIC at 250 VAC
• Connection: Ferrule end x ferrule end
• Response Time: 60 min at 135%, 2 min at 200%
• Fuse Indicator: Non-indicating
• Material: Glass tube with nickel-plated brass end caps
• Certifications: RoHS Compliant, CE Marked, UL Listed, UL Recognized, CSA Certified, PSE Approved
• Mounting Type: Requires fuse holder

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: GMA-1.6-R
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : GMA Series
• Type : GMA
• Voltage : 250
• Amperage : 1.6
• AIC rating : 100A@250V
• Connection : Ferrule
• Diameter : 5
• Barrels : 1

Product Data

• UPC : 05171264780
• GTIN : 00051712647809
• Country of Origin : China
• Dimensions : x 20 mm x
• Weight : 1
• Certification : CE, UL Guide JDYX, File E19180, CSA Certification Class 1422-01, File 53787, PSE Approval
