Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

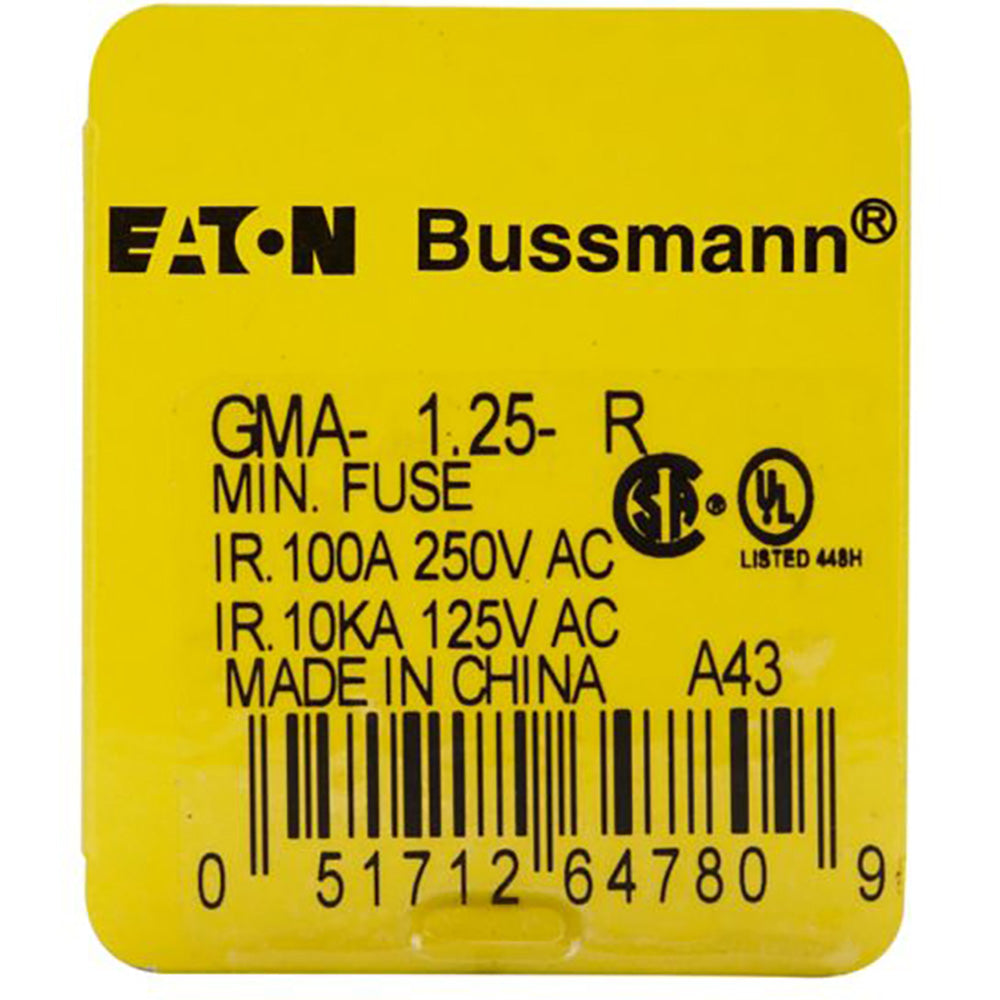

GMA-1.25-R
GMA-1.25-R is a fast-acting, glass tube cartridge fuse from Eaton, designed for reliable circuit protection in a wide range of applications.
This fuse features a 1.25A current rating and a 250V AC voltage rating, with a compact 5mm x 20mm size for easy installation in standard fuse holders. It is part of the GMA series, known for fast response to overcurrent conditions and low breaking capacity. The GMA-1.25-R is UL listed, CSA certified, and PSE approved, ensuring compliance with international safety standards.
-
Key Specifications
- Part Number: GMA-1.25-R
- Manufacturer: Eaton
- Amperage: 1.25A
- Voltage: 250V AC (32V DC self-certified)
- Poles: 1
- Mounting Type: Requires holder (cartridge, glass)
- Interrupt Rating: 100A at 250V AC, 10,000A at 125V AC
- Series/Frame: GMA Series
- Trip Unit: Fast-acting (no delay)
- Certifications: UL Listed, CSA Certified, PSE Approved
- Size: 5mm x 20mm
- Connection: Ferrule end
- Fuse Indicator: Non-indicating
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: GMA-1.25-R
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : GMA Series
- Type : GMA
- Voltage : 250
- Diameter : 5
- Barrels : 1
Product Data
- UPC : 05171264780
- GTIN : 00051712647809
- Country of Origin : China
- Dimensions : x 20 mm x
- Weight : 1
- Certification : CE, UL Guide JDYX, File E19180, CSA Certification Class 1422-01, File 53787, PSE Approval
