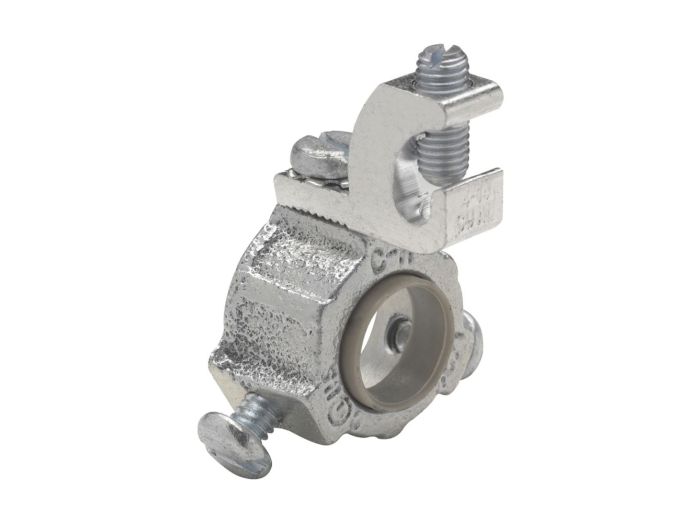

GLS11 Crouse-Hinds 5" Insulated Grounding Bushing, Aluminum Lug, #3/0–6 AWG

GLS11

GLS11 Crouse-Hinds 5" Insulated Grounding Bushing, Aluminum Lug, #3/0–6 AWG

The Crouse-Hinds GLS11 is a 5" insulated throat grounding bushing for threadless rigid and IMC conduit, rated 105°C and listed under UL File E6225 with cUL/CSA certification for Canada. Its malleable iron body and aluminum lug accept copper or aluminum grounding conductors from #3/0 to #6 AWG, qualifying it for NEC/CEC grounding terminations in ordinary, non-hazardous locations. The bushing is supplied with one set screw and external stainless steel hardware as standard, and carries a zinc-plated finish.

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Common Applications

• Grounding terminations on 5" rigid metal conduit (RMC) and intermediate metal conduit (IMC)
• Bonding and grounding at panelboards, switchboards, and service equipment
• Commercial and institutional building electrical infrastructure
• Industrial conduit systems requiring an insulated throat at the conductor entry

Key Features

• Insulated throat: Plastic liner protects conductor insulation at the bushing entry.
• Aluminum lug, #3/0–6 AWG: Accepts copper or aluminum grounding conductors across the listed range.
• Threadless set-screw mount: One set screw locks the bushing in position on threadless rigid/IMC conduit.
• Malleable iron body: Durable construction for demanding installations.
• 105°C rating: Suitable for standard NEC/CEC grounding applications.
• UL File E6225: UL listed and cUL/CSA certified for Canada.

Specifications

• Conduit type: Rigid / IMC
• Trade size: 5"
• Mounting: Threadless (set-screw type)
• Lug material: Aluminum
• Lug size: #3/0–6 AWG
• Body material: Malleable iron
• Temperature rating: 105°C
• Finish: Zinc plated
• Area classification: Ordinary / non-hazardous locations
• Standards: NEC / CEC
• Certifications: UL listed, cUL/CSA certified for Canada — UL File E6225

Product Identification

• Manufacturer: Eaton Crouse-Hinds series
• Catalog number: GLS11
• UPC: 784564112507
• Dimensions: 5.7" L × 5.6" W × 7.8" H
• Weight: 1.4 lb
• Trade size: 5"

FAQ

What is the Crouse-Hinds GLS11? It is a 5" insulated throat grounding bushing for threadless rigid/IMC conduit, with an aluminum lug rated for #3/0–6 AWG grounding conductors.

Is the GLS11 UL listed? Yes. It is UL listed and cUL/CSA cer

Specifications

• Part Number: GLS11
• Manufacturer : Eaton
• Brand : Crouse-Hinds

Product Data

• UPC : 784564112507
• GTIN : 00784564112507
• Dimensions : 5.7 in x 7.8 in x 5.6 in (Length/Depth x Height x Width)
• Weight : 1.4 lb
