Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
GLR15

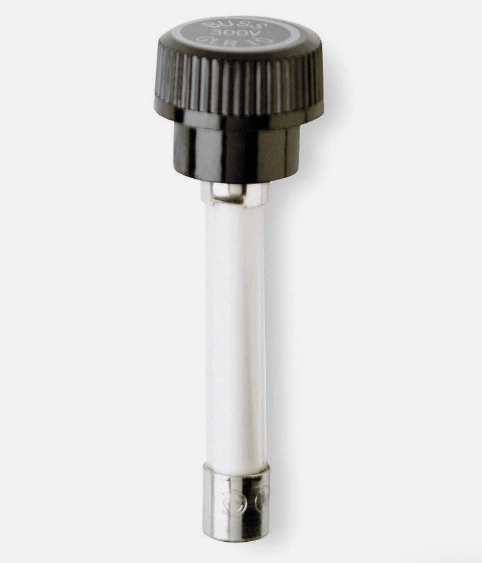

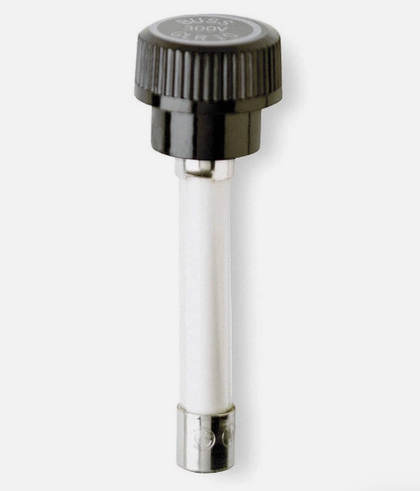

GLR15 is a fast-acting glass fuse from the Eaton GLR Series, designed for low voltage circuit protection applications requiring reliable performance and safety. This fuse features a cylindrical body style with a non-rejection design, making it suitable for a wide range of industrial and commercial uses. It is rated for 15A at 300V AC and offers an interrupting rating of 10,000A at 300V AC, providing robust protection against overcurrent events. The fuse is constructed with a glass body and features a ferrule connection for secure mounting.
- Amperage: 15A
- Voltage Rating: 300V AC
- Interrupt Rating: 10,000A at 300V AC
- Series: GLR
- Speed: Fast-Acting
- Body Style: Cylindrical
- Visual Indication: Non-Indicating
- Connection: Ferrule
- Mounting Type: Panel Mount (with separate clip)
- Agency Certifications: UL Listed, CSA Certified
Specifications
- Part Number: GLR15
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : GLR Series
- Type : GLR
- Voltage : 300
- Amperage : 15
- AIC rating : 10A@300V
- Connection : Ferrule
- Diameter : 0.63
- Barrels : 1
Product Data
- UPC : 051712716352
- GTIN : 00051712716352
- Weight : 0.08
