Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
GLR1

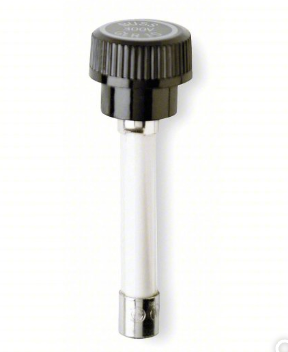

GLR1 is a fast acting specialty fuse from Cooper Bussmann designed for 1 amp, 300 volts AC applications.This fuse features a non-rejection style glass body with a 10,000 amp interrupting rating, suitable for low voltage circuit protection. It is UL listed to standard 248-14 and CSA certified, ensuring compliance with safety standards. The fuse and knob form an integral one-piece unit and can be panel mounted with a separate steel clip.
- Key Specifications
- Amperage: 1 Amp
- Voltage Rating: 300 Volts AC
- Fuse Type: Fast Acting Specialty Fuse
- Interrupt Rating: 10,000 Amps (10kA)
- Body Material: Glass
- Mounting Type: Panel mount with steel clip (optional)
- Fuse Style: Non-Rejection
- Certifications: UL Listed Std. 248-14, CSA Certified Class 1422-01
- Overall Length: 2.25 inches
- Diameter: 0.72 inches
Specifications
- Part Number: GLR1
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : GLR Series
- Type : GLR
- Voltage : 300
- AIC rating : 10A@300V
- Connection : Ferrule
- Diameter : 0.63
- Barrels : 1
Product Data
- UPC : 051712716215
- GTIN : 00051712716215
- Weight : 5.19
