Description
GHBGFEP1030

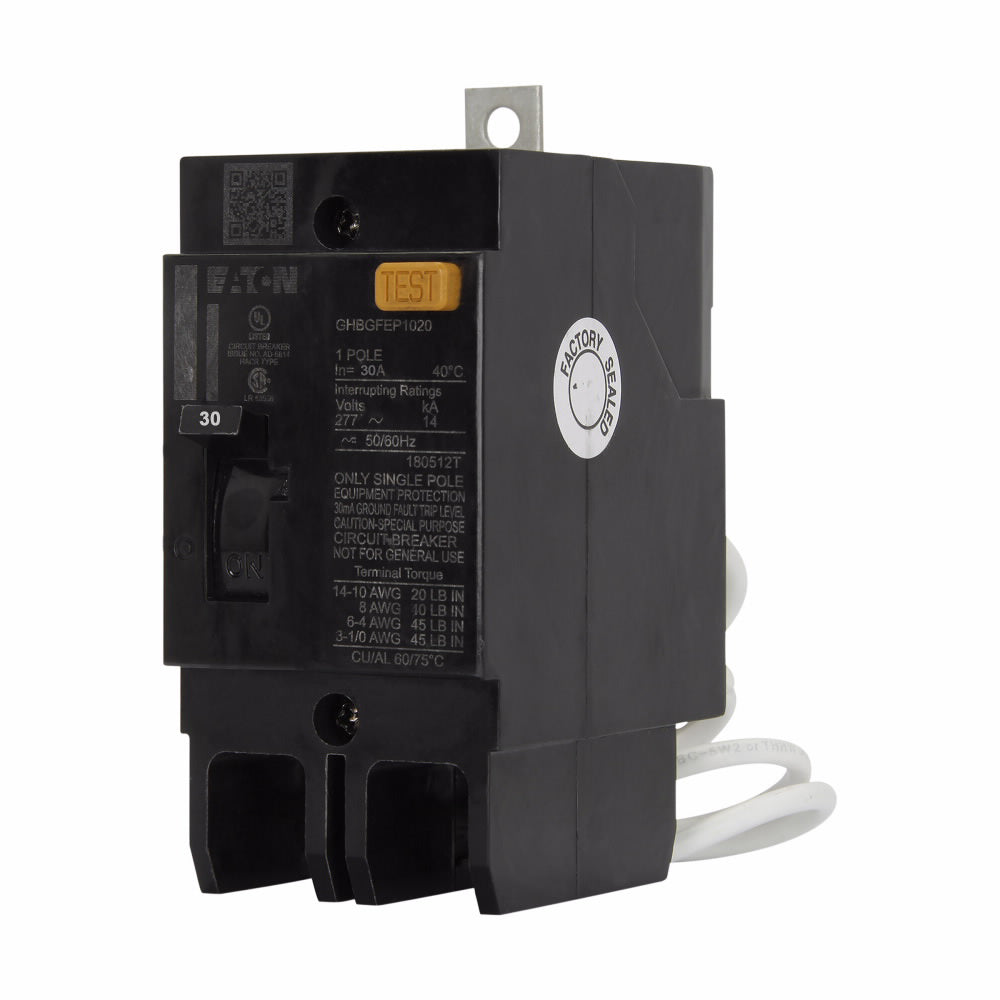

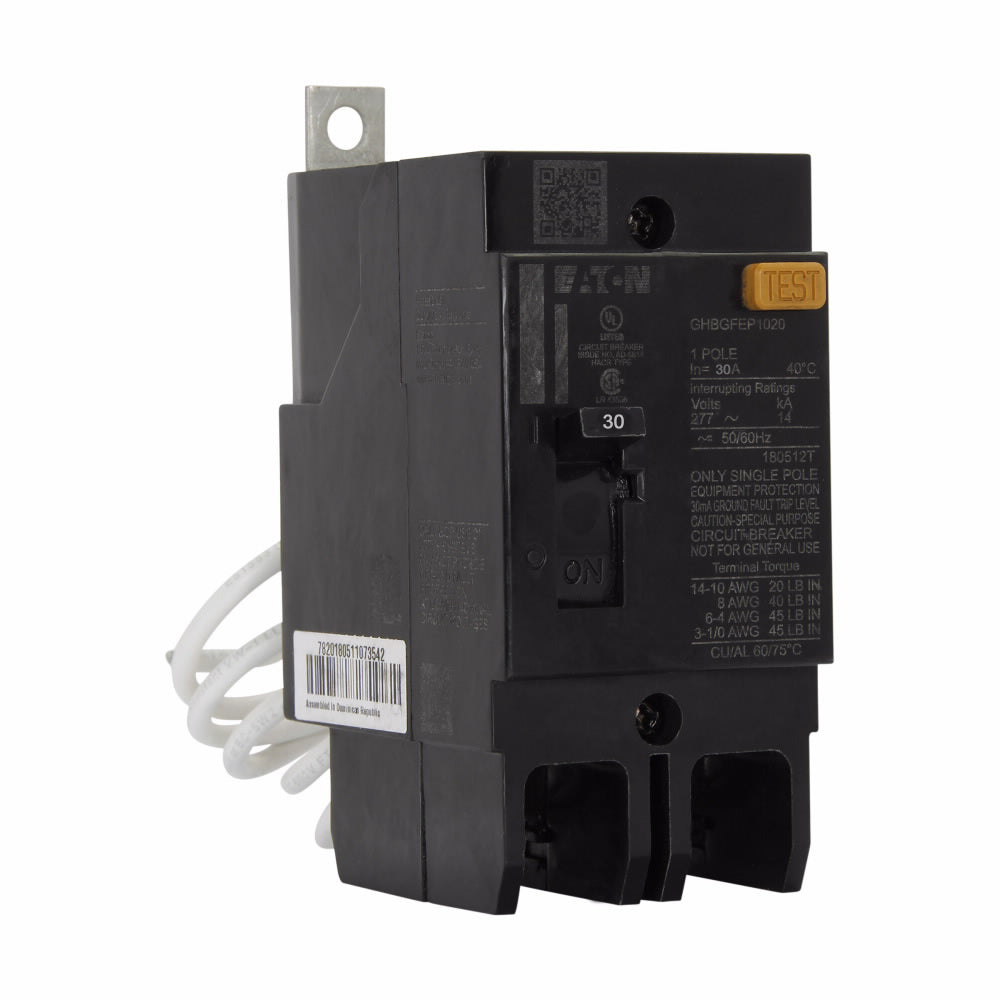

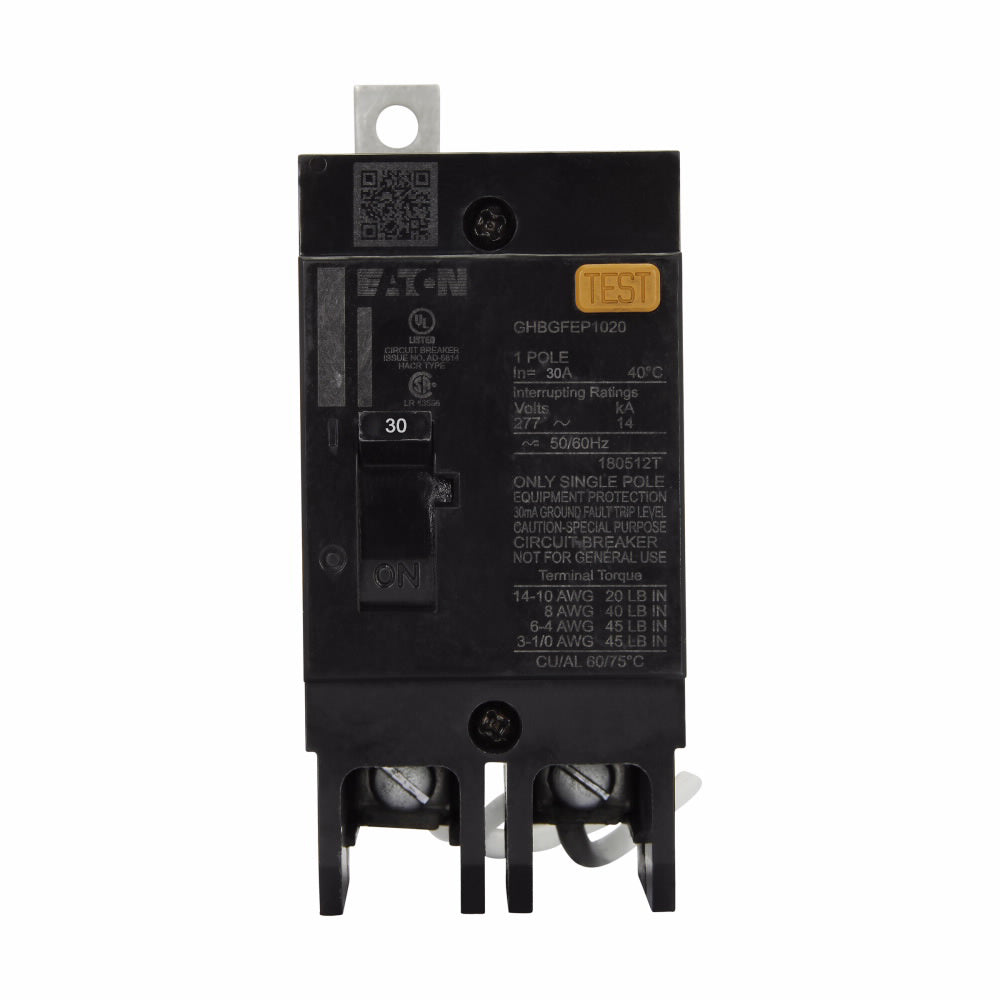

GHBGFEP1030 is a Cutler Hammer 1-pole molded case circuit breaker with a 30 amp rating designed for ground fault protection.This Eaton Series C GHB frame circuit breaker features a 30 amp current rating, 480Y/277 VAC and 125/250 VDC voltage ratings, and a 14kA interrupting rating at 277 VAC. It includes thermal magnetic protection with long time and instantaneous trip functions and mounts with a bolt-on connection.
- Key Specifications
- Manufacturer: Cutler Hammer (Eaton)
- Part Number: GHBGFEP1030
- Amperage: 30 A
- Voltage: 480Y/277 VAC, 125/250 VDC
- Poles: 1
- Frame/Series: GHB, Series C
- Mounting Type: Bolt-On
- Interrupt Rating: 14 kAIC at 277 VAC
- Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
- Certifications: UL Listed
- Part Number: GHBGFEP1030
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : GHBGFEP
- Voltage : 277
- Amperage : 30
- Phase : 1
- Poles : 1
- AIC rating : 14kA@277V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Screw Clamp
- Frame Size : 100/GHB
- Temp Rating : 28-158 ¡F (-2-70 ¡C)
- Breaker Type : Standard
- Protection : Thermal Magnetic
- UPC : 786679067444
- GTIN : 00786679067444
- Country of Origin : Dominican Republic
- Dimensions : 2.63 in x 4 in x 1 in (Length/Depth x Height x Width)
- Weight : 1.45
- Panel Type : Eaton Powerline Panelboards
- Standards : UL 569
- Certification : CSA Certified, UL Listed
