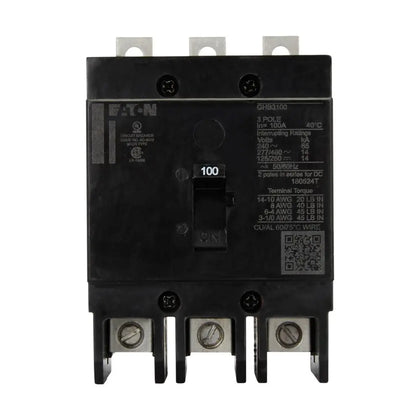

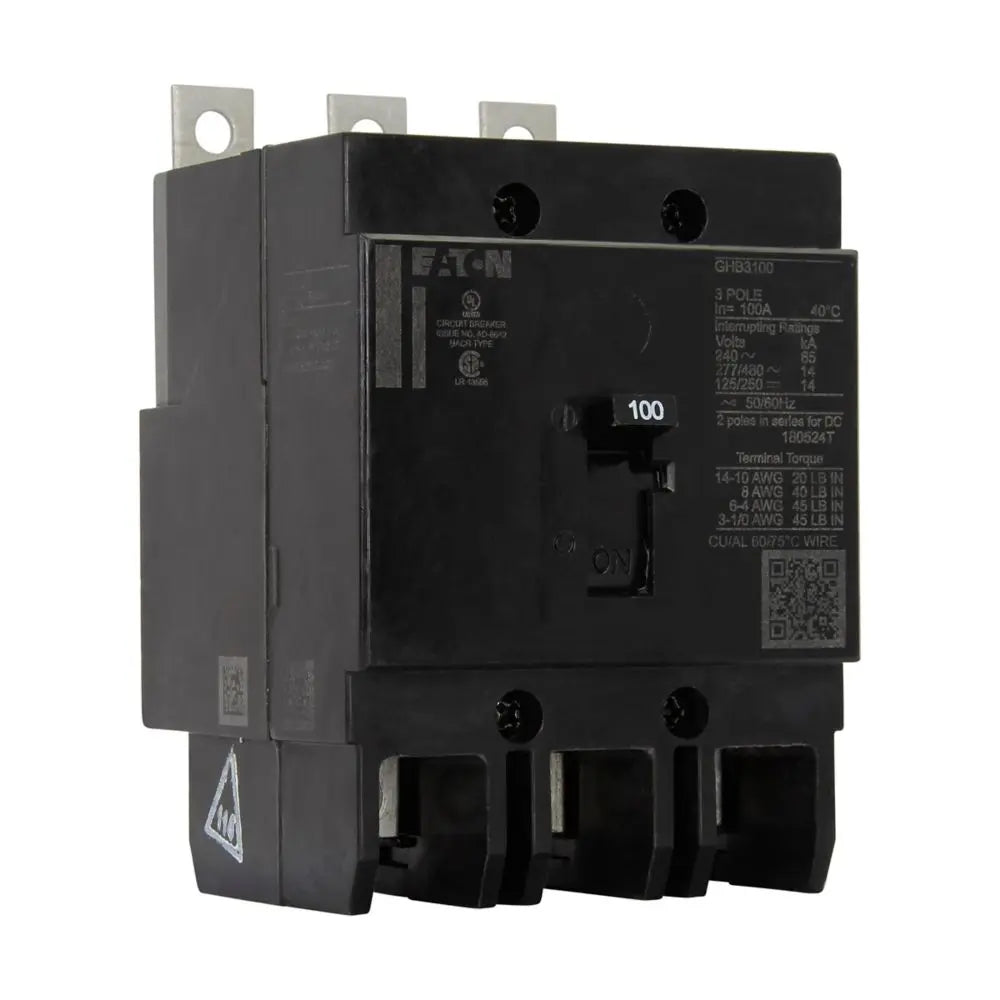

GHB3100V - Eaton 100A 480Y/277V 3-Pole Bolt-On Circuit Breaker Series C GHB Frame

GHB3100V

GHB3100V is a 100 Amp, 3-pole bolt-on molded case circuit breaker from Eaton's Series C GHB frame designed for 480Y/277V applications.This Eaton GHB3100V circuit breaker features a fixed thermal magnetic trip unit (T186), 14kA interrupt rating at 480Y/277 VAC, and is UL and CSA certified. It is suitable for industrial panelboard use with a bolt-on mounting type and supports 3-phase power systems.

• Amperage: 100 A
• Voltage Rating: 480Y/277 VAC, 125/250 VDC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 14 kAIC at 480Y/277 VAC
• Trip Unit: Fixed Thermal Magnetic (T186)
• Series/Frame: Eaton Series C GHB
• Certifications: UL Listed, CSA Certified
• Frequency: 50/60 Hz
• Phase: 3-Phase
• Application: Industrial Panelboard

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: GHB3100V
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : GHB
• Voltage : 480
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 14kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Screw Clamp
• Frame Size : 100/GHB
• Temp Rating : 28-158 ¡F (-2-70 ¡C)
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 78211499097
• GTIN : 00782114990971
• Country of Origin : Dominican Republic
• Dimensions : 2.63 in x 4 in x 3 in (Length/Depth x Height x Width)
• Weight : 1.8
• Panel Type : Eaton Powerline Panelboards
• Standards : UL 566
• Certification : CSA Certified, UL Listed
