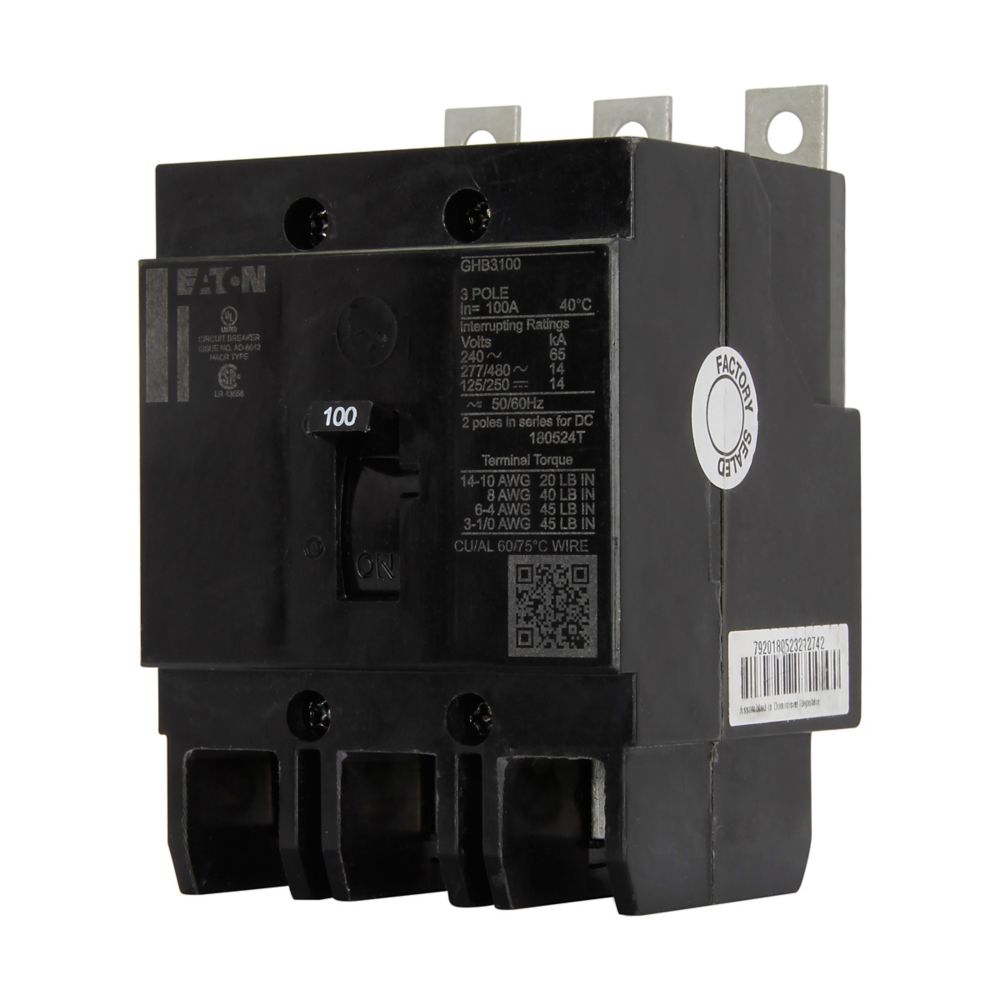

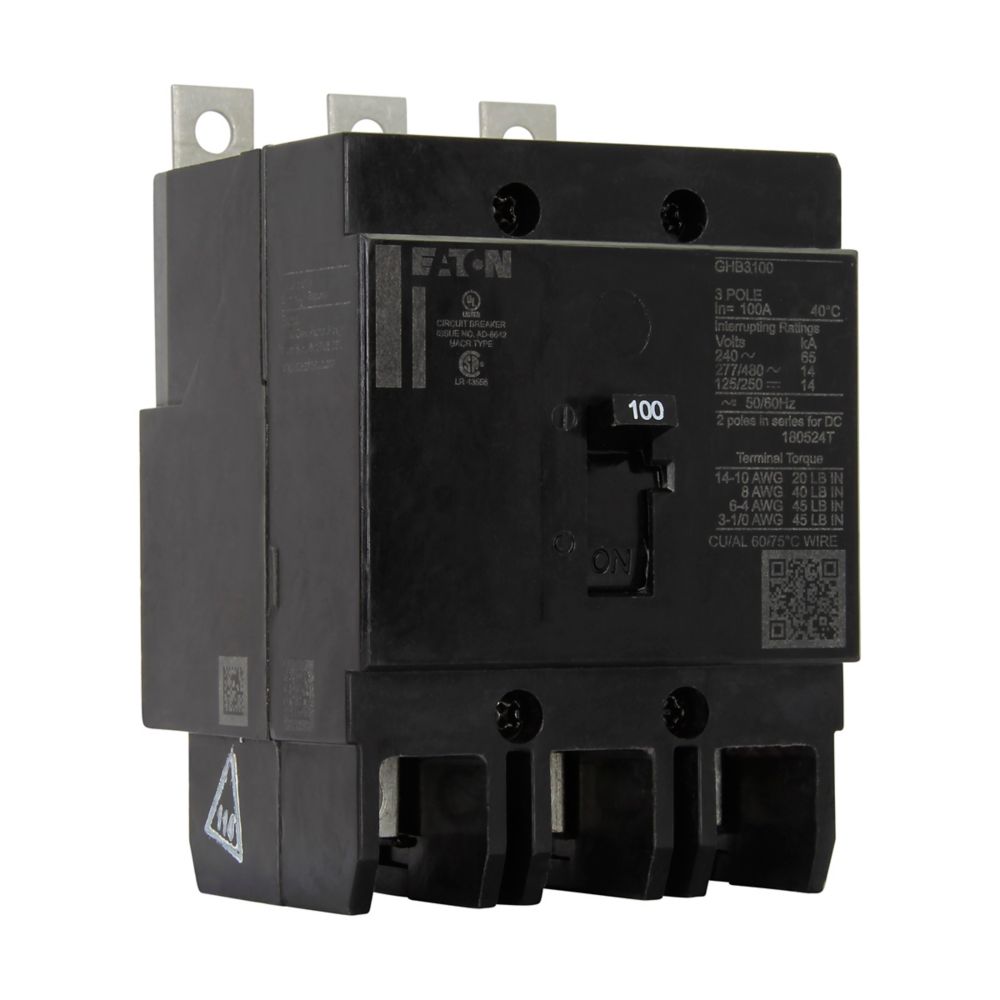

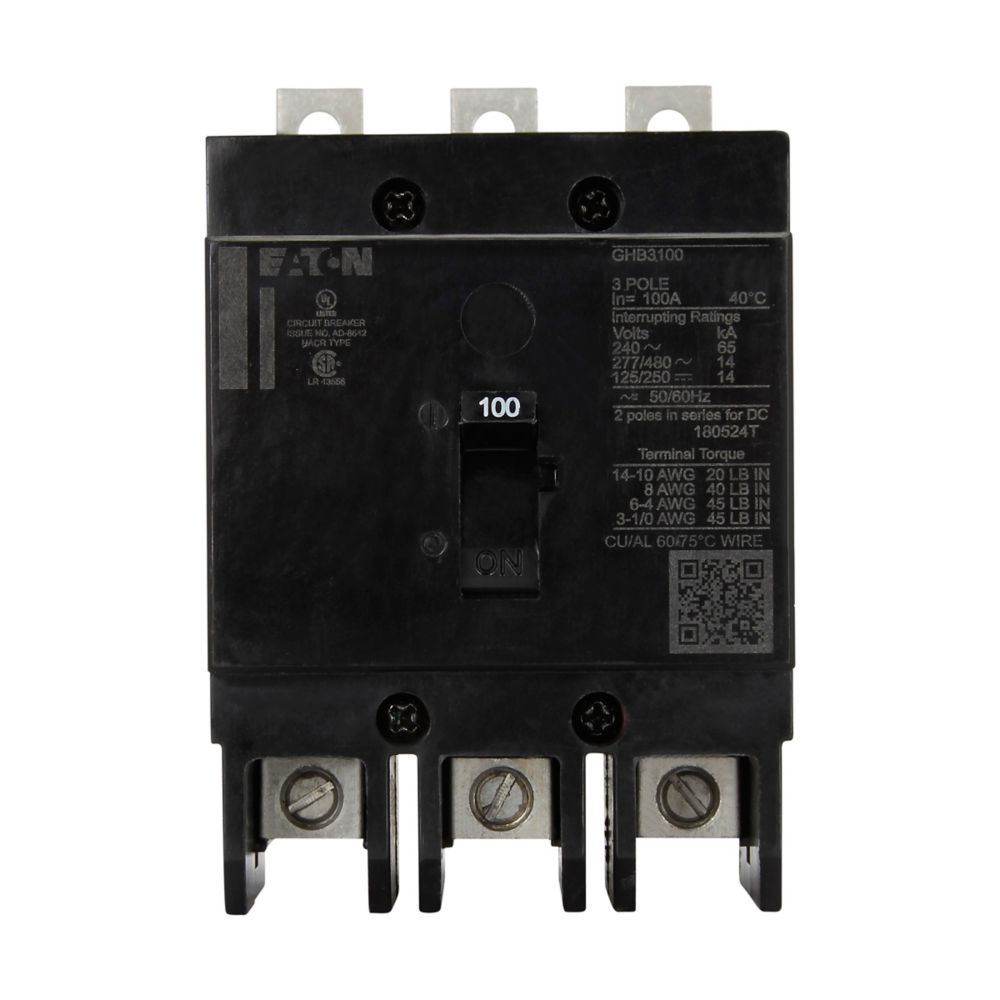

GHB3100S2 - Eaton 100A 277/480V 3-Pole GHB Series Molded Case Circuit Breaker Fixed Thermal-Magnetic Trip

GHB3100S2

GHB3100S2 is a 100 Amp, 3-pole molded case circuit breaker from Eaton's GHB Series designed for reliable circuit protection in industrial and commercial applications.This Eaton GHB3100S2 breaker features a fixed thermal and fixed magnetic trip unit, suitable for 277/480 VAC and 125/250 VDC systems. It has a bolt-on mounting type with a 14 kA interrupt rating at 480 VAC and 65 kA at 240 VAC, ensuring high fault current interruption capability. The breaker is part of Eaton's Series C NEMA G-frame family and is UL listed for safety and performance.

Key Specifications
• Amperage: 100 Amp
• Voltage Rating: 277/480 VAC, 125/250 VDC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 14 kA @ 480 VAC, 65 kA @ 240 VAC
• Series/Frame: Series C, GHB Frame
• Trip Unit: Fixed Thermal / Fixed Magnetic
• Certifications: UL Listed
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: GHB3100S2
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : GHB
• Voltage : 480
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 14kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Screw Clamp
• Frame Size : 100/GHB
• Temp Rating : 28-158 ¡F (-2-70 ¡C)
• Breaker Type : Standard
• Protection : Thermal Magnetic



Product Data

• UPC : 78667906054
• GTIN : 00786679060544
• Country of Origin : Dominican Republic
• Dimensions : 2.63 in x 4 in x 3 in (Length/Depth x Height x Width)
• Weight : 1.8
• Panel Type : Eaton Powerline Panelboards
• Standards : UL 565
• Certification : CSA Certified, UL Listed
