GHB2060 - Cutler Hammer Bolt-on 480V 60A 2 pole circuit breaker 14kA@480V

GHB2060

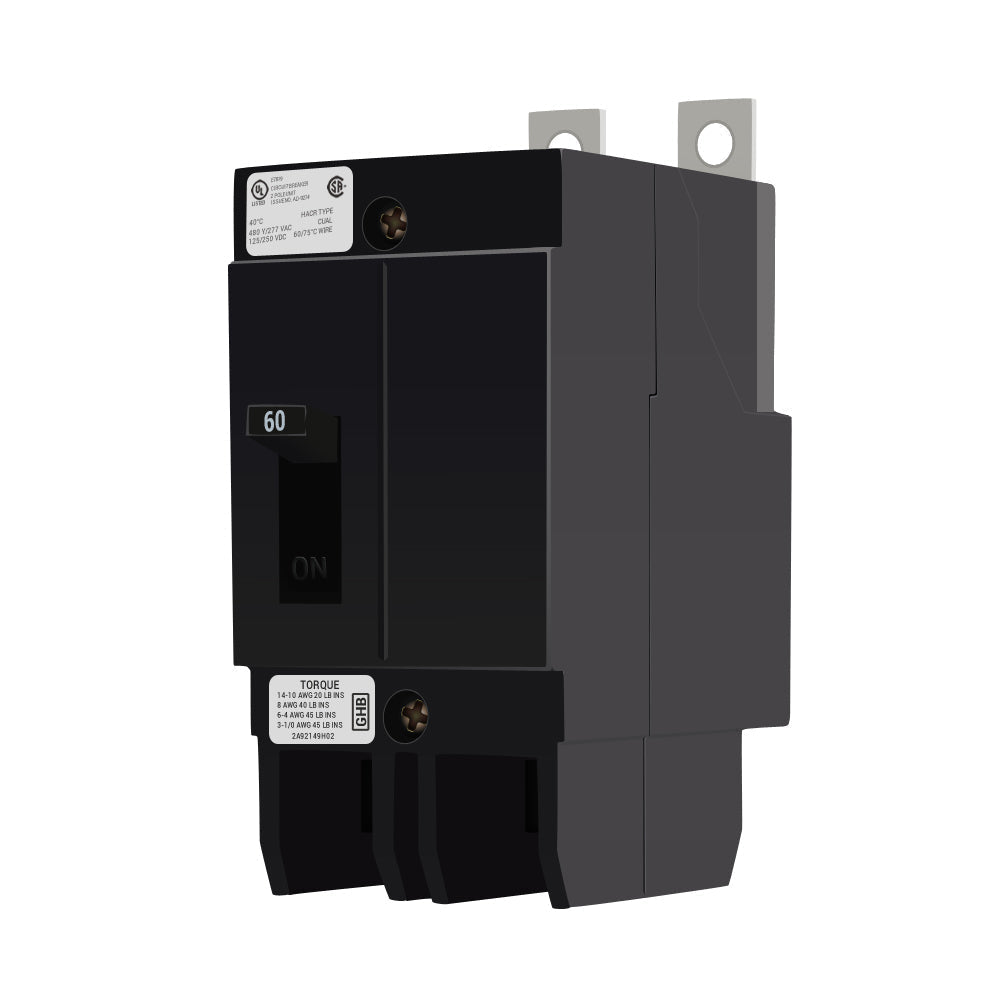

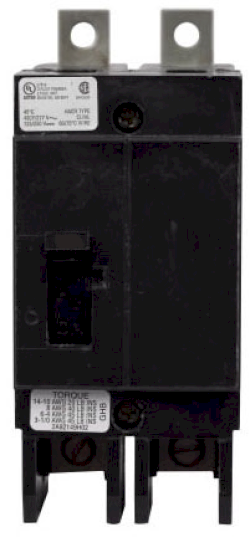

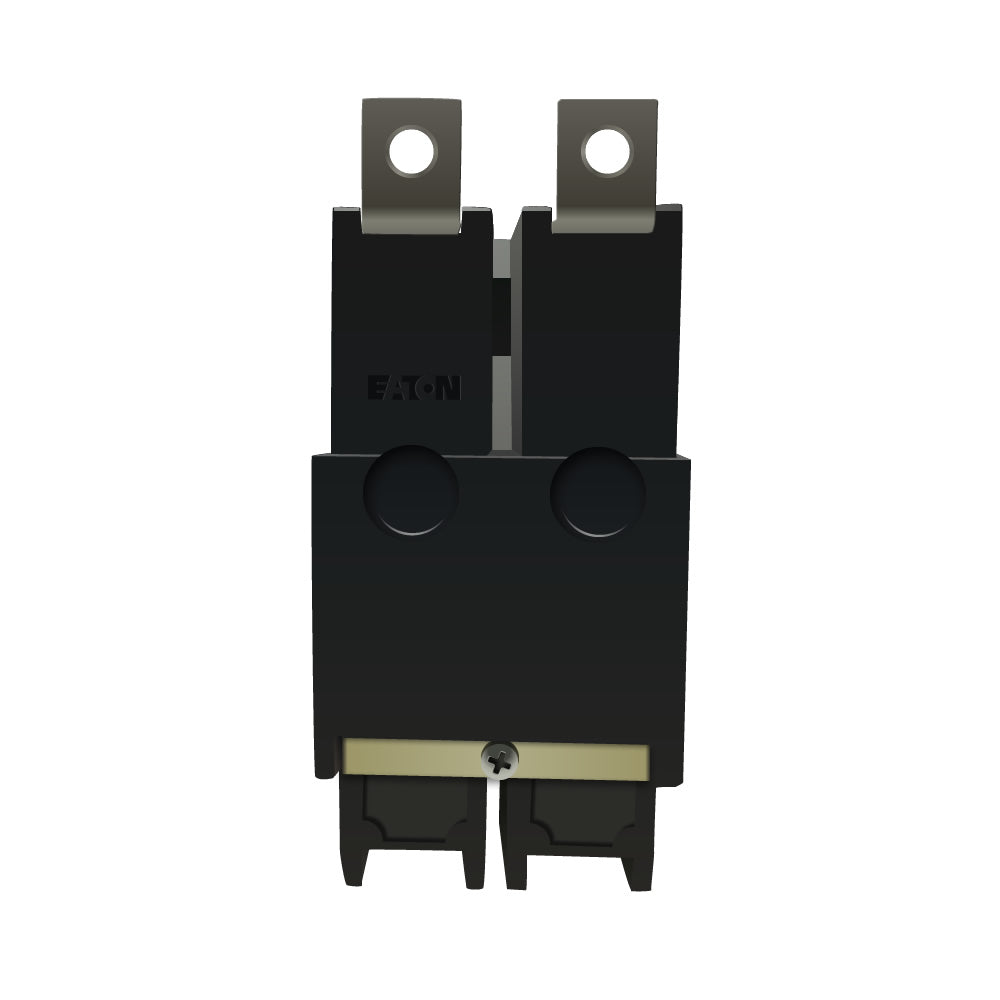

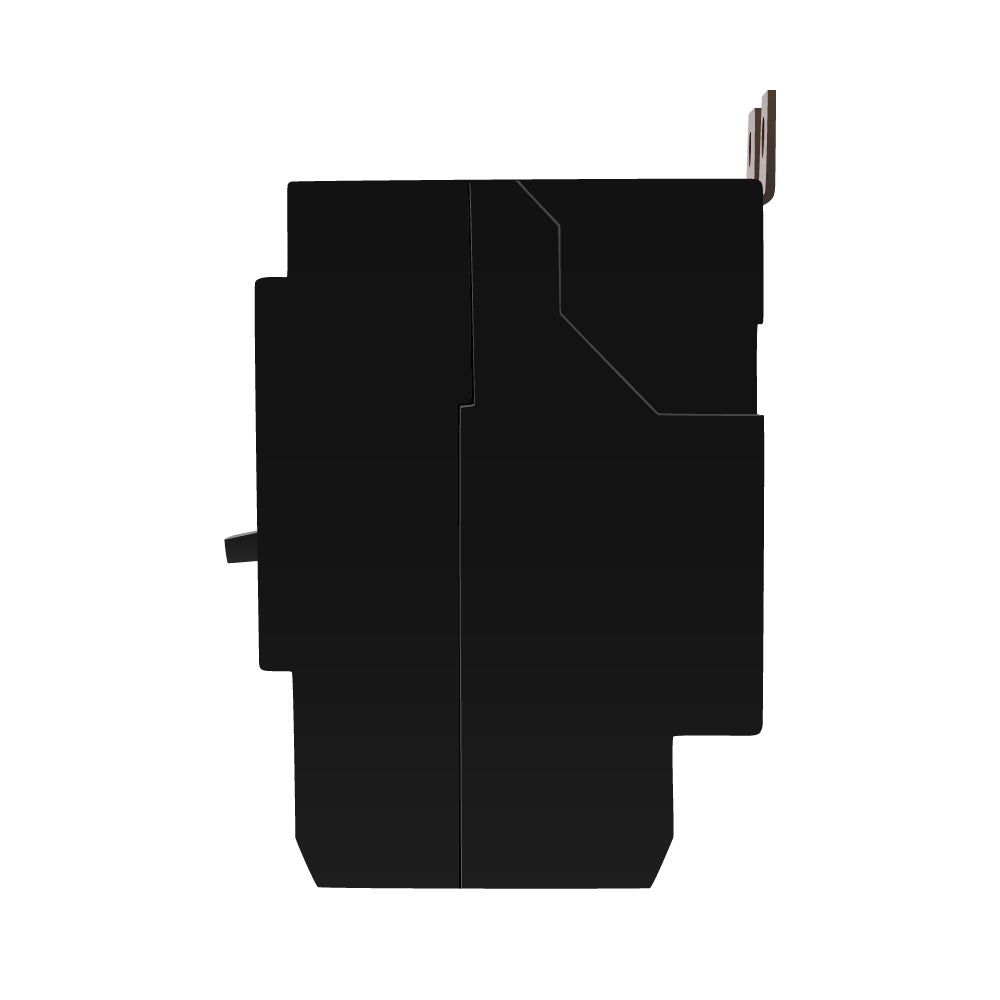

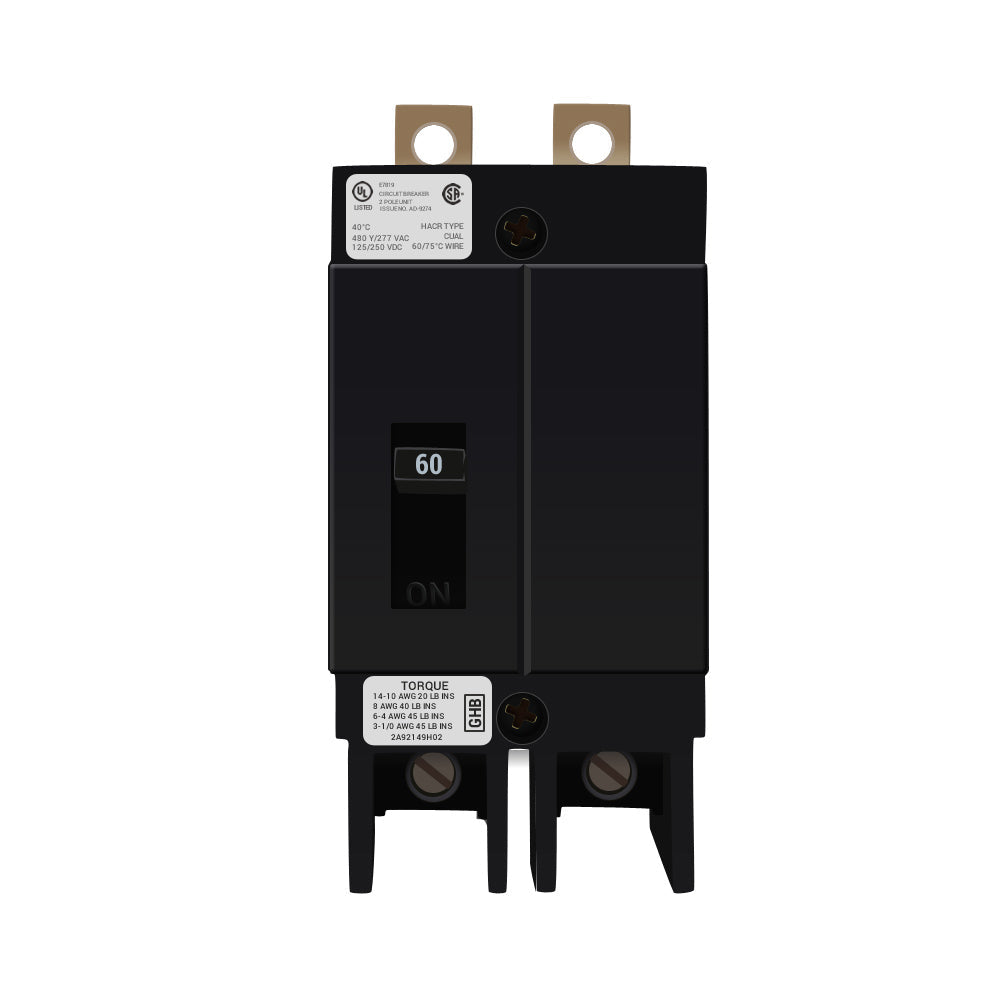

GHB2060 is an Eaton Cutler Hammer 60 amp, 2-pole molded case circuit breaker designed for reliable protection of branch and feeder circuits. This bolt-on style breaker is part of Eaton's GHB Series, providing dependable overcurrent protection for commercial and industrial panelboards. The GHB2060 features a compact molded case design, thermal-magnetic trip unit, and durable bolt-on connection for secure mounting. It supports operation up to 480V and is UL listed with an interrupt rating of 14kA@480V for consistent, high-performance protection. Key Specifications:

• Part Number: GHB2060
• Manufacturer: Eaton / Cutler-Hammer
• Series: GHB
• Amperage: 60A
• Poles: 2
• Voltage Rating: 480V
• Interrupt Rating: 14kA@480V
• Connection Type: Bolt-On
• Breaker Type(more...)


  Specifications

  • Part Number: GHB2060
  • Manufacturer : Eaton
  • Brand : Cutler Hammer
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Series C
  • Type : GHB
  • Voltage : 480
  • Amperage : 60
  • Phase : 1
  • Poles : 2
  • AIC rating : 14kA@480V
  • Connection : Bolt-On
  • Functions : LI - Long-Time and Instantaneous Trip
  • Terminal Connection : Screw Clamp
  • Frame Size : 100/GHB
  • Temp Rating : 28-158 ¡F (-2-70 ¡C)
  • MCM Size : Min. Wire Size 10 AWG Max. Wire Size 1/0 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Frequency : 50/60 Hz



  Product Data

  • UPC : 786679172407
  • GTIN : 00786679172407
  • Country of Origin : Dominican Republic
  • Dimensions : 2.63 in x 4 in x 2 in (Length/Depth x Height x Width)
  • Weight : 1.15
  • Panel Type : Eaton Powerline Panelboards
  • Standards : UL 516
  • Certification : CSA Certified, UL Listed
  • Wire Size : 10 to 1/0 AWG
