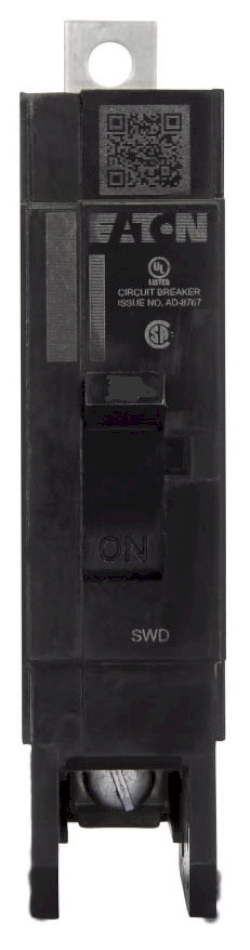

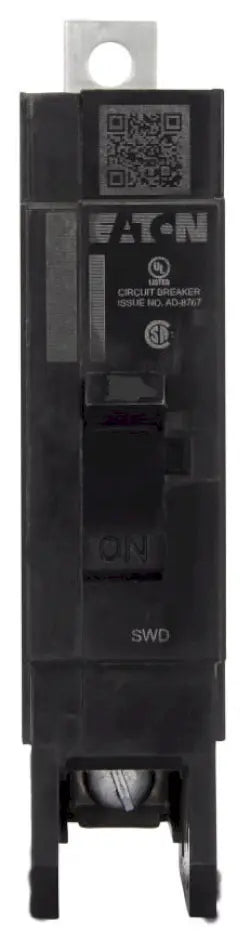

GHB1090 - Eaton 90 Amp 277 VAC 1 Pole Molded Case Circuit Breaker C Series Fixed Thermal/Magnetic Trip

GHB1090

GHB1090 is a 90 Amp, 1 Pole molded case circuit breaker from Eaton's C Series designed for reliable circuit protection.This Eaton GHB1090 breaker features a fixed thermal and fixed magnetic trip unit, suitable for 277 VAC and 125 VDC applications. It has a 14 kA interrupt rating at 277 VAC and a bolt-on mounting type within the G-frame series. Certified for 50/60 Hz frequency, it provides robust protection in panelboard installations.

Key Specifications
• Amperage: 90 Amp
• Voltage Rating: 277 VAC / 125 VDC
• Poles: 1 Pole
• Interrupt Rating: 14 kA at 277 VAC
• Trip Unit: Fixed Thermal / Fixed Magnetic
• Series/Frame: C Series, G-frame
• Mounting Type: Bolt-On
• Frequency: 50/60 Hz
• Circuit Breaker Type: Molded Case
• Certifications: Industry standard certifications (specific certifications not listed)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: GHB1090
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : GHB
• Voltage : 480
• Amperage : 90
• Phase : 1
• Poles : 1
• AIC rating : 14kA@277V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Screw Clamp
• Frame Size : 100/GHB
• Temp Rating : 28-158 ¡F (-2-70 ¡C)
• Breaker Type : Standard
• Protection : Thermal Magnetic



Product Data

• UPC : 786679021767
• GTIN : 00786679021767
• Country of Origin : Dominican Republic
• Dimensions : 2.63 in x 4 in x 1 in (Length/Depth x Height x Width)
• Weight : 0.9
• Panel Type : Eaton Powerline Panelboards
• Standards : UL 503
• Certification : CSA Certified, UL Listed
