Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
GHB1070

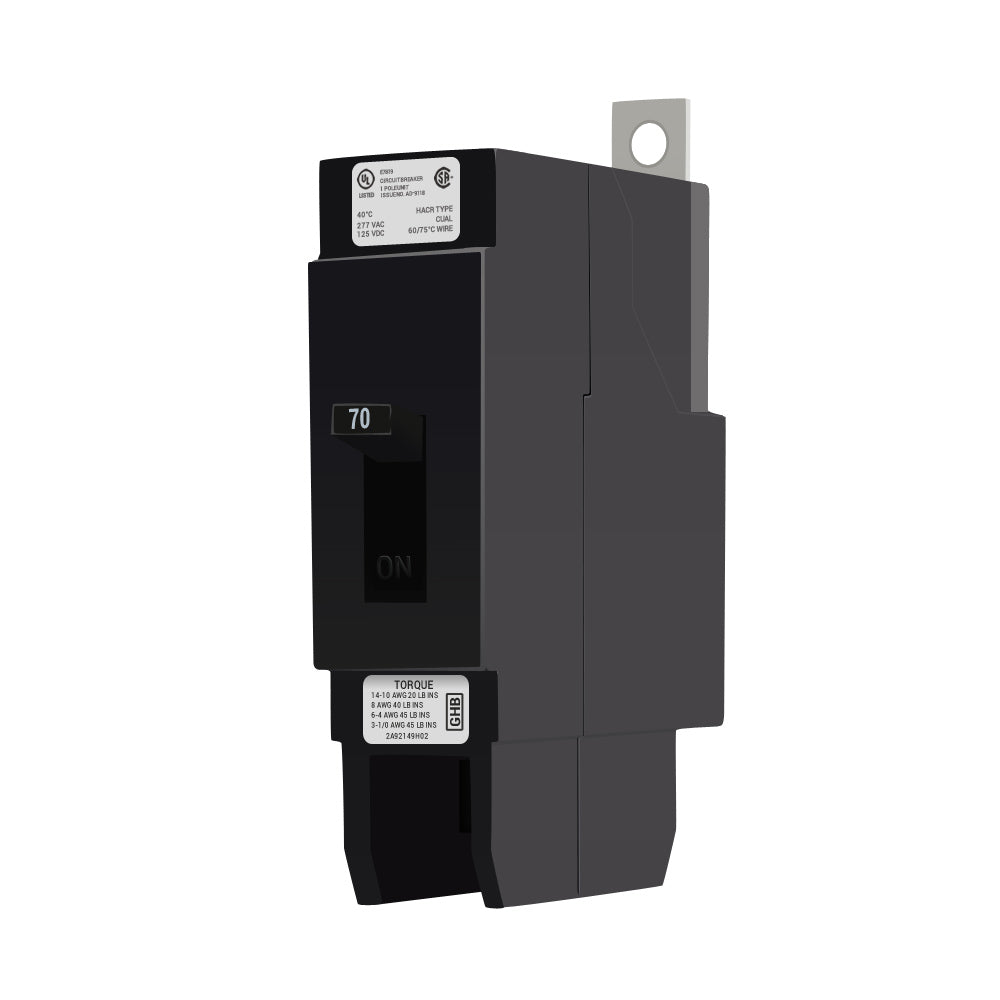

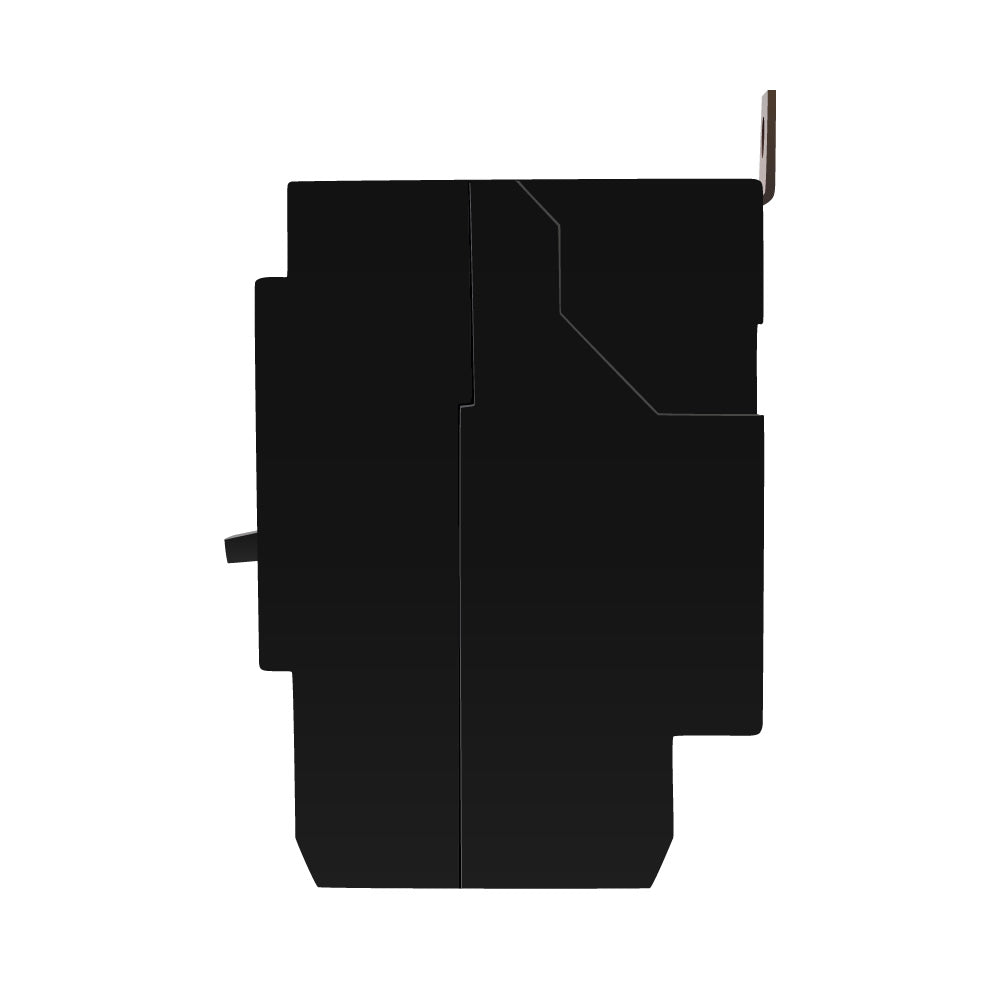

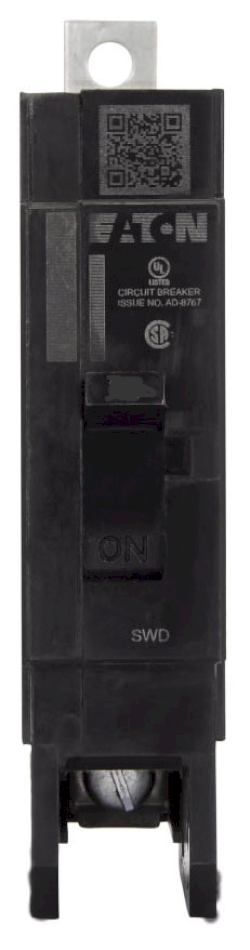

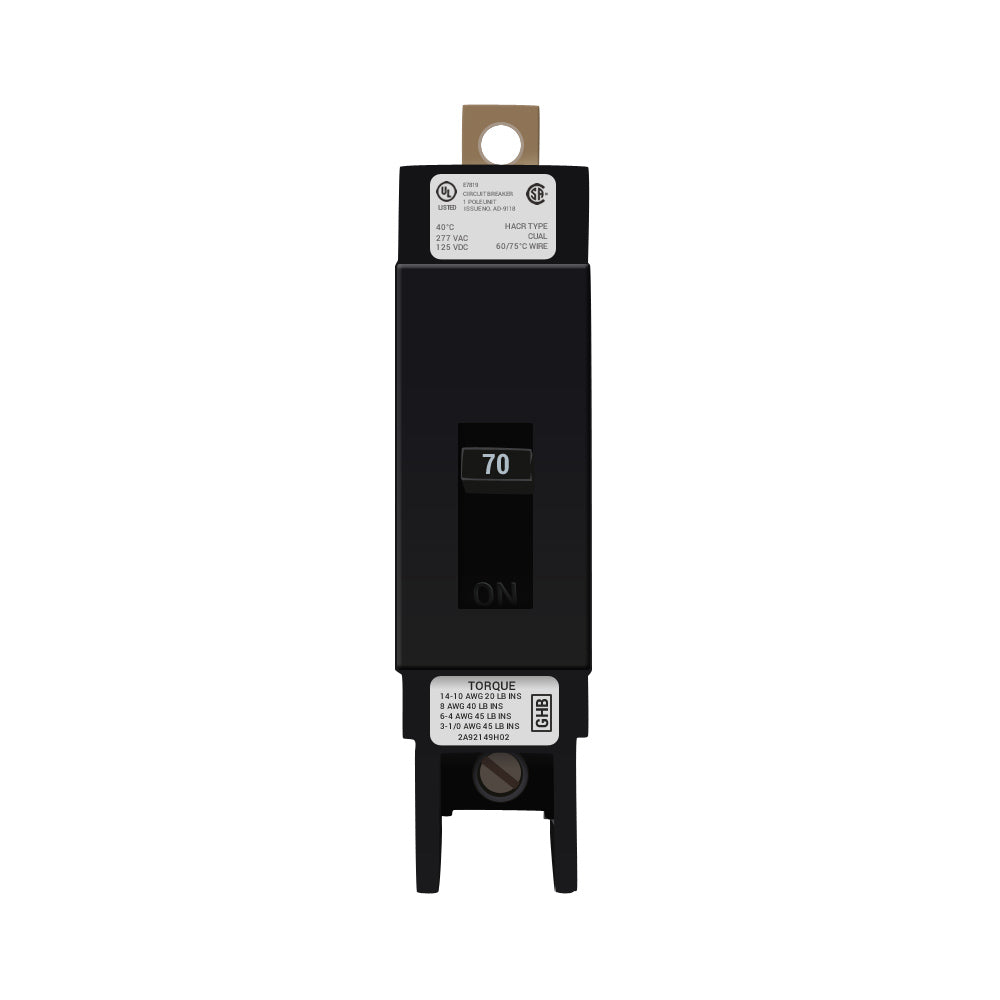

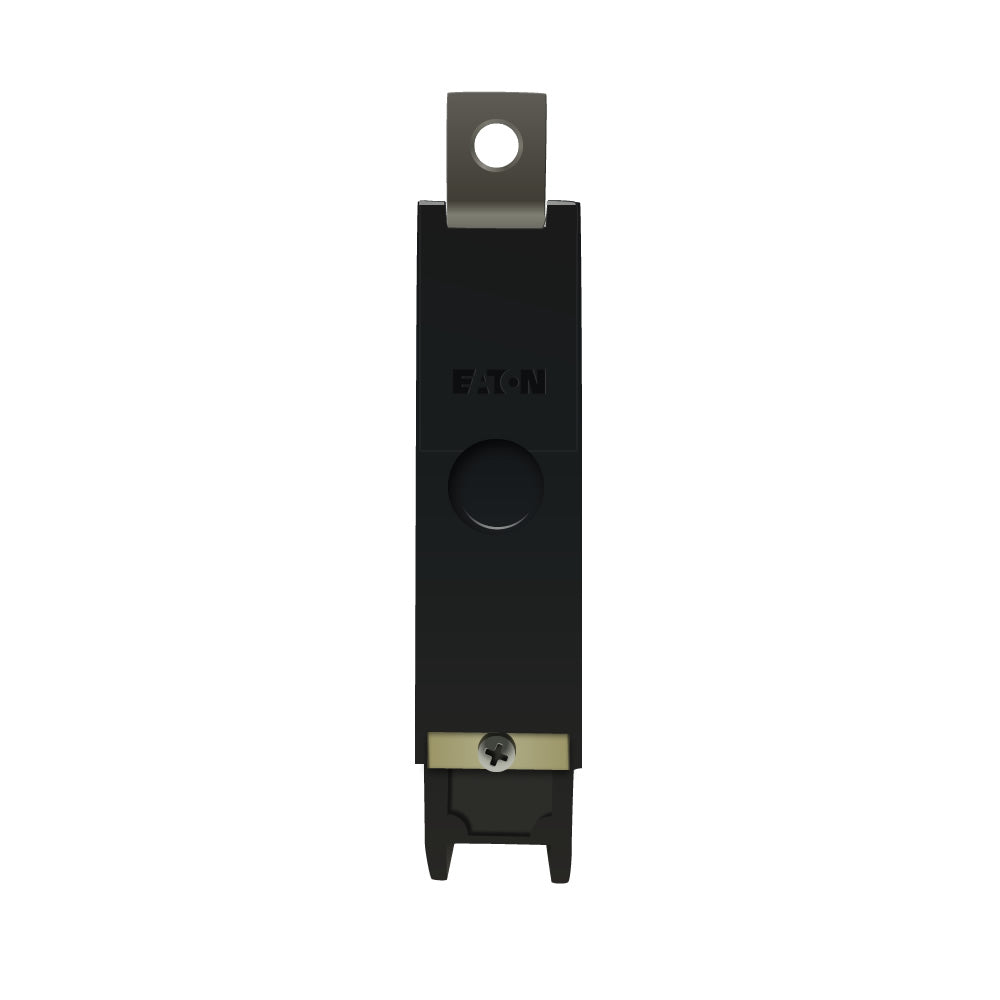

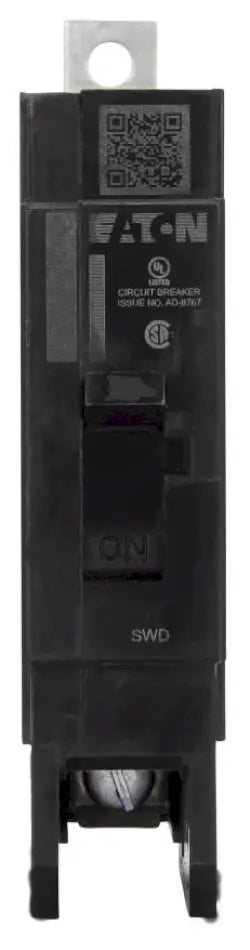

GHB1070 is a Westinghouse 1 pole, 70 amp, 480 Volt bolt-on circuit breaker designed for reliable power distribution protection.This molded case circuit breaker features a thermal magnetic trip unit and is part of the G frame series. It has an interrupt rating of 14kA at 277V and is suitable for panelboard mounting. The breaker is UL listed and designed for industrial and commercial electrical applications requiring dependable overcurrent protection.
- Key Specifications
- Amperage: 70A
- Voltage: 480V AC / 277V AC
- Poles: 1
- Mounting Type: Bolt-On
- Interrupt Rating: 14kA @ 277V
- Frame/Series: G Frame
- Trip Unit: Thermal Magnetic
- Certifications: UL Listed
- Part Number: GHB1070
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : GHB
- Voltage : 480
- Amperage : 70
- Phase : 1
- Poles : 1
- AIC rating : 14kA@277V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Screw Clamp
- Frame Size : 100/GHB
- Temp Rating : 28-158 ¡F (-2-70 ¡C)
- Breaker Type : Standard
- Protection : Thermal Magnetic
- UPC : 786679021743
- GTIN : 00786679021743
- Country of Origin : Dominican Republic
- Dimensions : 2.63 in x 4 in x 1 in (Length/Depth x Height x Width)
- Weight : 0.7
- Panel Type : Eaton Powerline Panelboards
- Standards : UL 501
- Certification : CSA Certified, UL Listed
