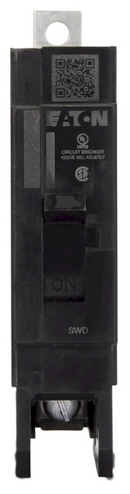

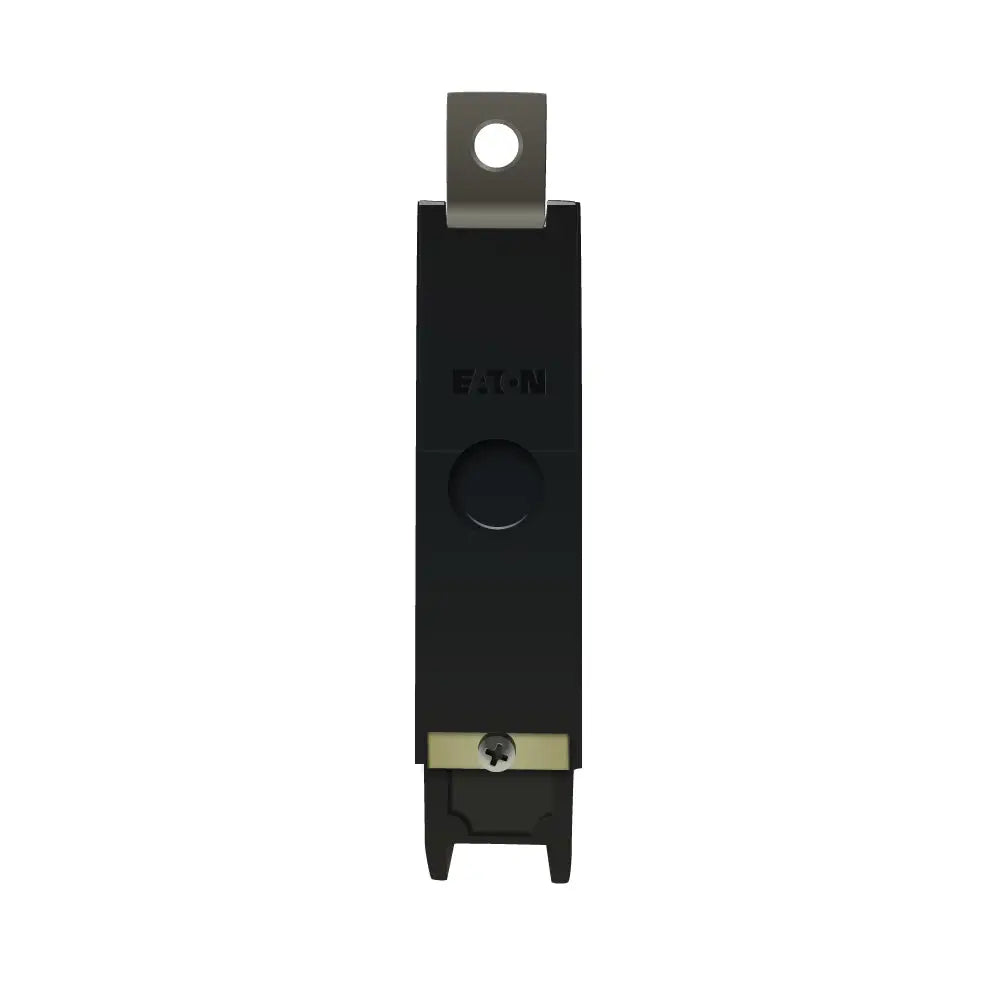

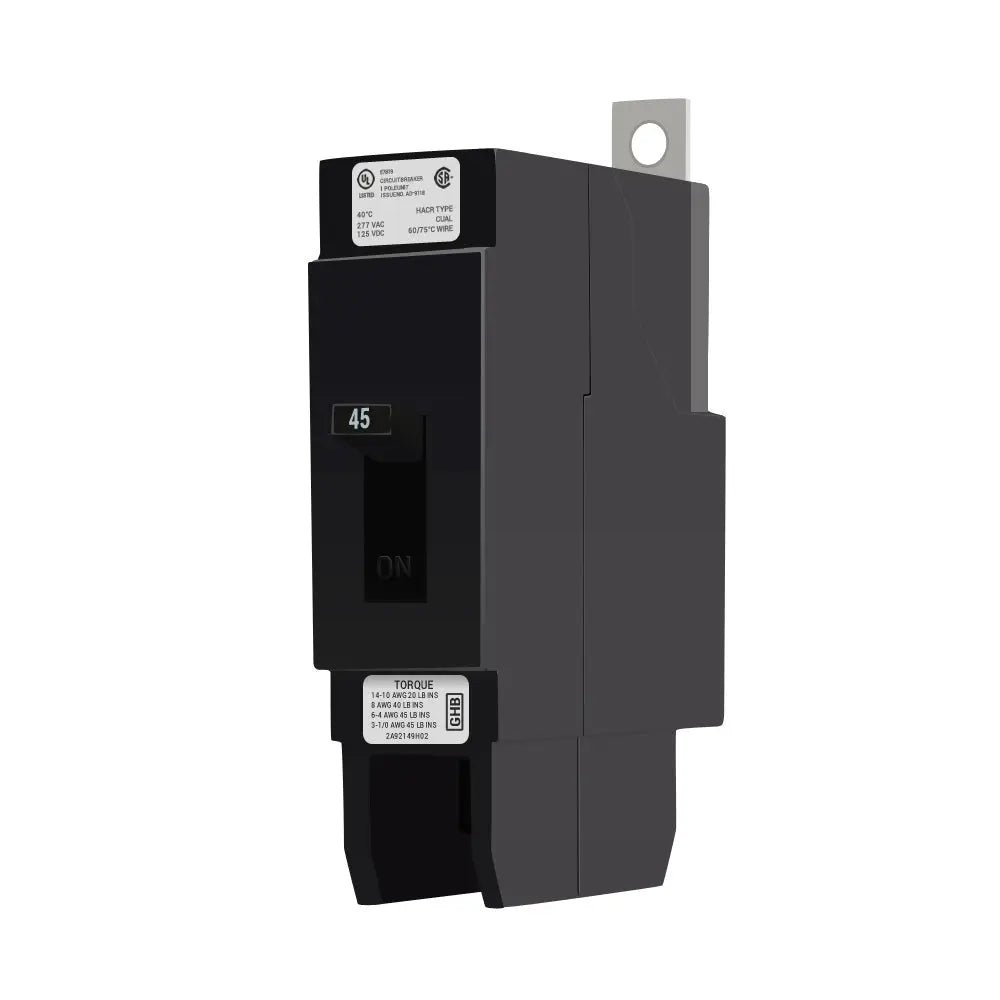

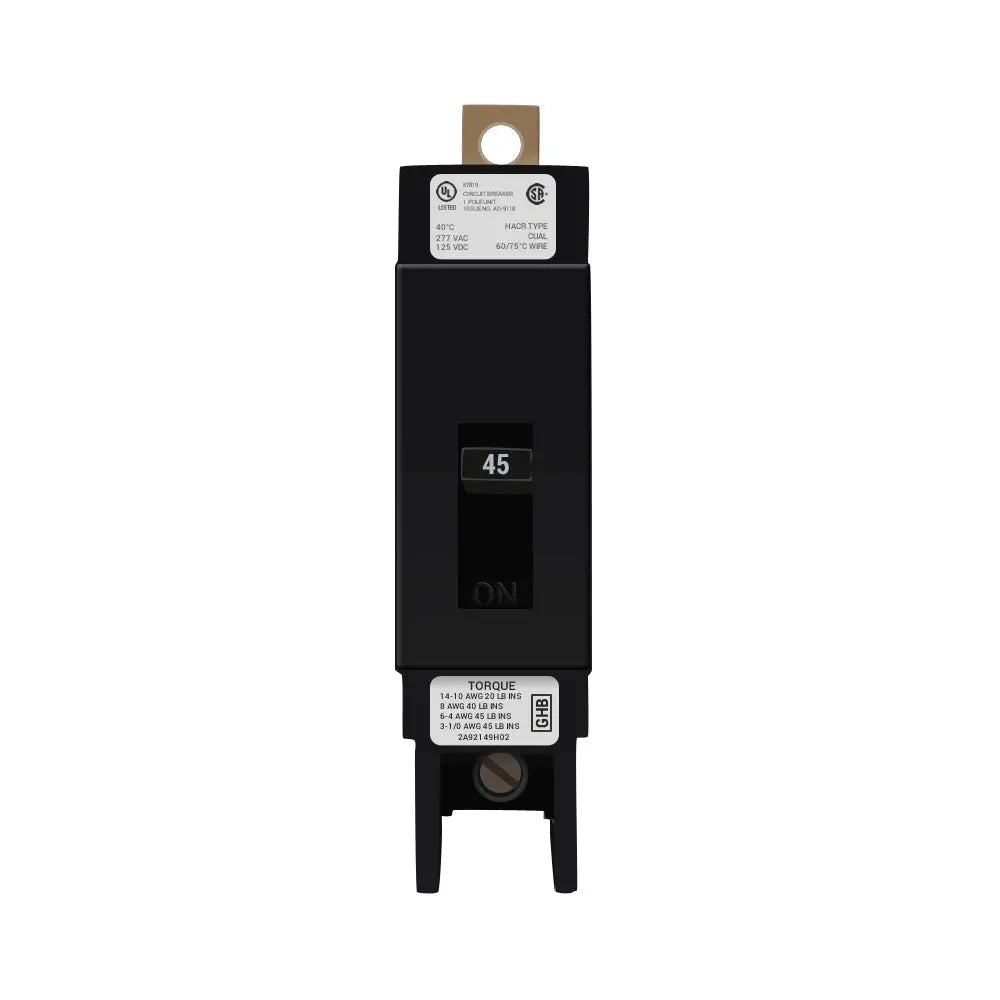

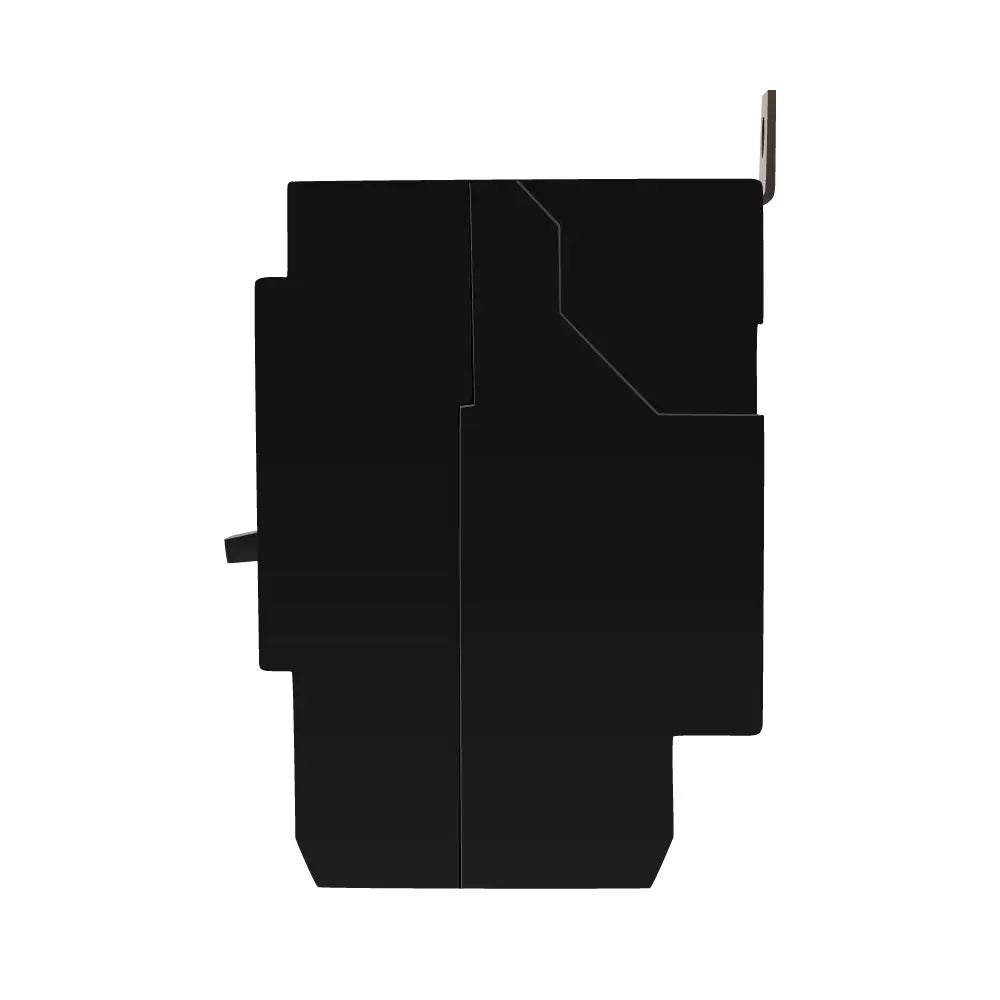

GHB1045 - Cutler Hammer 45A 1-Pole 277/480VAC Molded Case Circuit Breaker

GHB1045

GHB1045 is a 1-pole molded case circuit breaker designed for reliable protection in commercial and industrial applications. This Cutler Hammer breaker features a 45A current rating and is rated for 277/480VAC and 125VDC systems. It utilizes a fixed thermal and fixed magnetic trip unit for dependable overcurrent protection. The breaker is designed for bolt-on panelboard mounting and features screw terminal connections for secure wiring. With an interrupt rating of 14kAIC at 277VAC and 65kAIC at 120VAC, it meets the demands of high fault current environments. The GHB1045 is part of the C Series Type GHB frame and is suitable for a wide range of power distribution needs.

• Part Number: GHB1045
• Manufacturer: Cutler Hammer
• Amperage: 45A
• Poles: 1
• Voltage: 277/480VAC, 125VDC
• Mounting Type: Bolt-On Panelboard
• Interrupt Rating: 14kAIC @ 277VAC, 65kAIC @ 120VAC
• Series/Frame: C Series Type GHB
• Trip Unit: Fixed Thermal/Fixed Magnetic
• Terminal Type: Screw Terminal
• Application: Commercial, Industrial Power Distribution
• Standards: UL Listed&lt(more...)


  Specifications

  • Part Number: GHB1045
  • Manufacturer : Eaton
  • Brand : Cutler Hammer
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Series C
  • Type : GHB
  • Voltage : 480
  • Amperage : 45
  • Phase : 1
  • Poles : 1
  • AIC rating : 14kA@277V
  • Connection : Bolt-On
  • Functions : LI - Long-Time and Instantaneous Trip
  • Terminal Connection : Screw Clamp
  • Frame Size : 100/GHB
  • Temp Rating : 28-158 ¡F (-2-70 ¡C)
  • Breaker Type : Standard
  • Protection : Thermal Magnetic



  Product Data

  • UPC : 786679006382
  • GTIN : 00786679006382
  • Country of Origin : Dominican Republic
  • Dimensions : 2.63 in x 4 in x 1 in (Length/Depth x Height x Width)
  • Weight : 0.9
  • Panel Type : Eaton Powerline Panelboards
  • Standards : UL 498
  • Certification : CSA Certified, UL Listed
