Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
GGX3

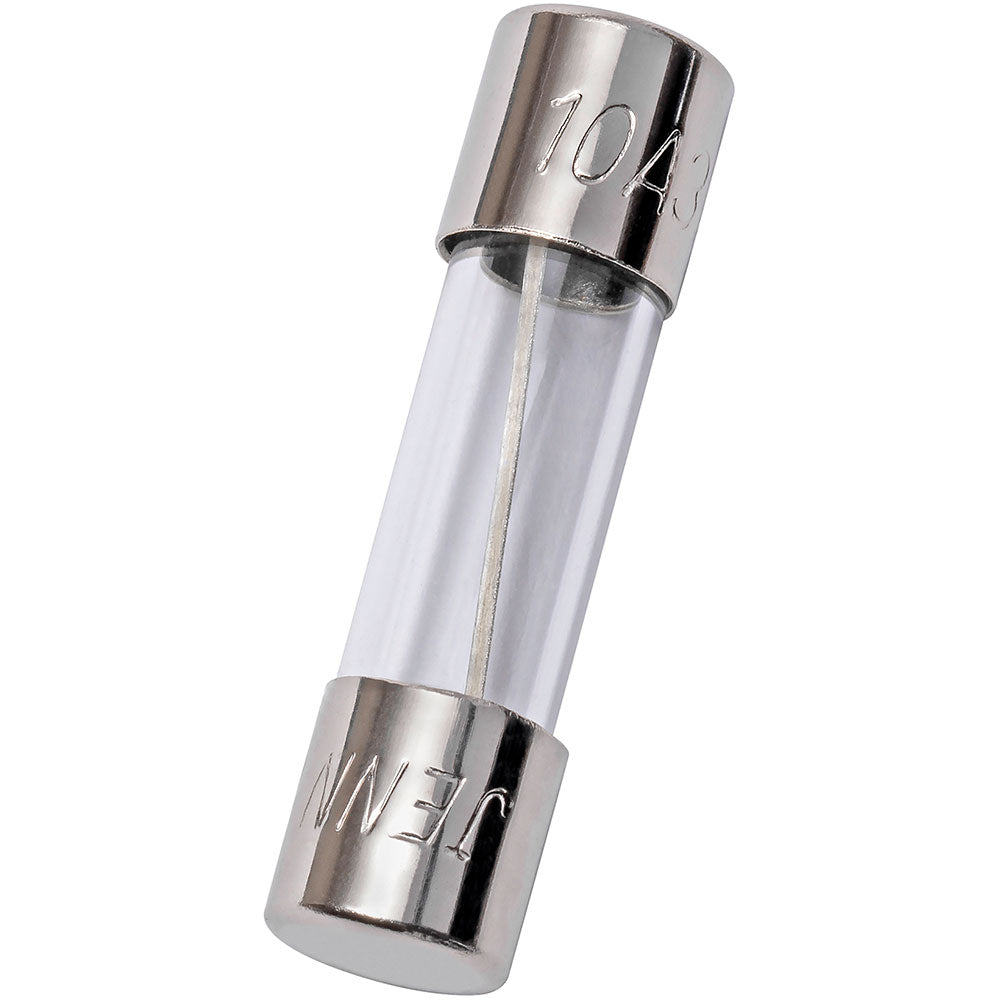

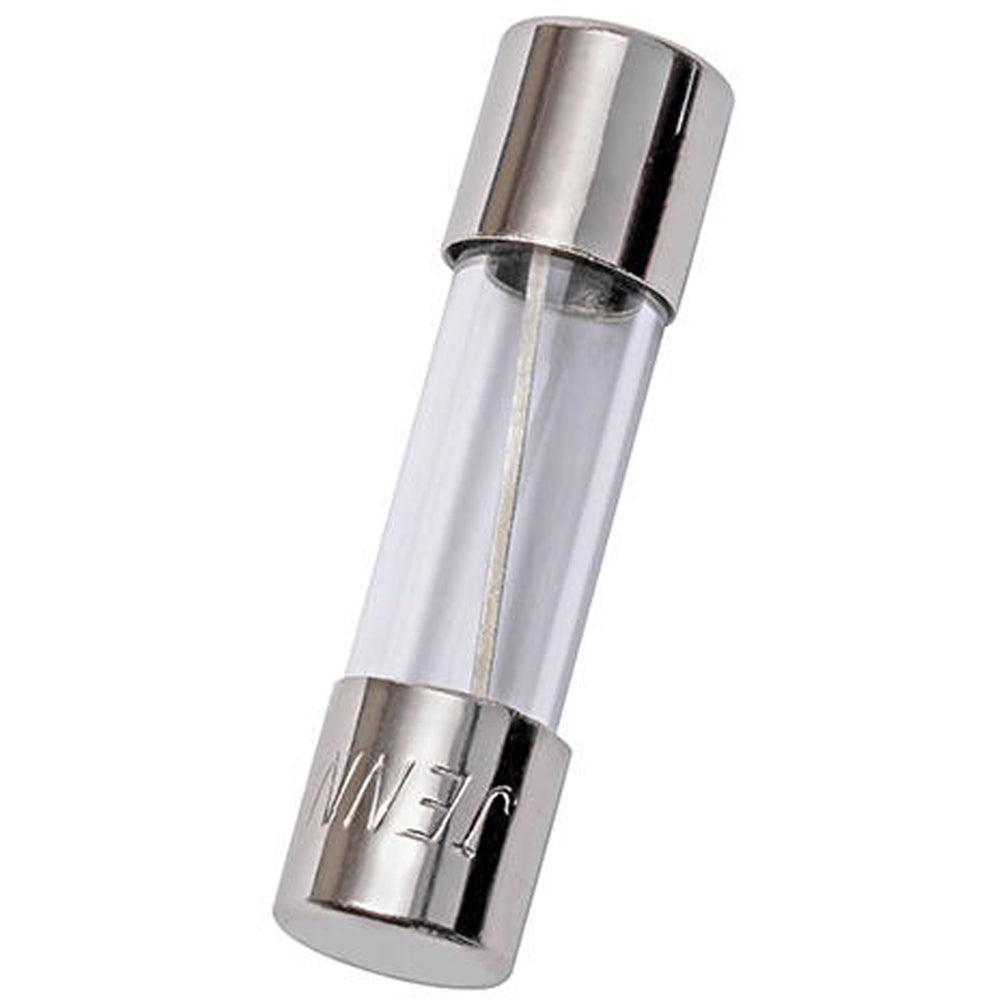

GGX3 is a Mersen fast acting miniature fuse rated at 3 amperes and 125 volts AC with a 10 kiloamp interrupt rating.This cylindrical glass tube fuse features a 1/4 inch diameter by 1 inch length body size, designed for clip mounting with ferrule terminals. It is a single-pole, non-indicating, non-rejection type fuse suitable for low voltage applications requiring fast-acting protection. The GGX series fuse is UL recognized and provides reliable circuit protection with a 10kA interrupting capacity at 125VAC.
- Amperage Rating: 3 A
- Voltage Rating: 125 VAC
- Interrupt Rating: 10 kA
- Poles: 1
- Body Type: Cylindrical Glass Tube
- Dimensions: 1/4 in diameter x 1 in length
- Mounting Type: Clip Mount with Ferrule Terminal
- Series: GGX
- Fast Acting
- Non-Indicating
- UL Recognized
Specifications
- Part Number: GGX3
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Type : GGX
- Voltage : 125
- Amperage : 3
- AIC rating : 10kA@125V
- Connection : Ferrule
- Diameter : 0.25
- Barrels : 1
- Velocity : Fast Acting
Product Data
- UPC : 078200176114
- GTIN : 00782001761141
- Country of Origin : China
- Dimensions : x 1 in x
- Weight : 0.01
- Certification : UL
