Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
GGX2-1/2

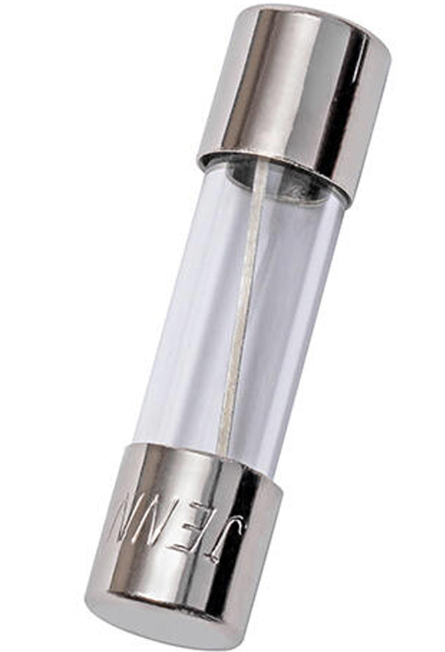

GGX2-1/2 is a Mersen Ferraz Shawmut 2.5 amp, 125 volt, 1-pole supplemental fuse designed for fast-acting circuit protection.This fuse features a miniature glass tube construction with a 1/4 inch diameter and 1 inch length. It has an interrupting rating of 10kA at 125 volts AC and is UL approved. The GGX2-1/2 is ideal for protecting electronic circuits requiring fast-acting supplemental fuses.
- Key Specifications
- Amperage: 2.5 Amps
- Voltage Rating: 125 Volts AC
- Poles: 1
- Fuse Type: Supplemental
- Speed: Fast-Acting
- Dimensions: 1/4 inch diameter x 1 inch length
- Interrupt Rating: 10,000 Amps at 125V AC
- Mounting Type: Ferrule connection
- Certifications: UL Listed
- Part Number: GGX2-1/2
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Type : GGX
- Voltage : 250
- Amperage : 2
- AIC rating : 10kA@125V
- Connection : Ferrule
- Diameter : 0.25
- Barrels : 1
- Velocity : Fast Acting
- UPC : 78200176893
- GTIN : 00782001768935
- Weight : 0.01
