Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
GGM8

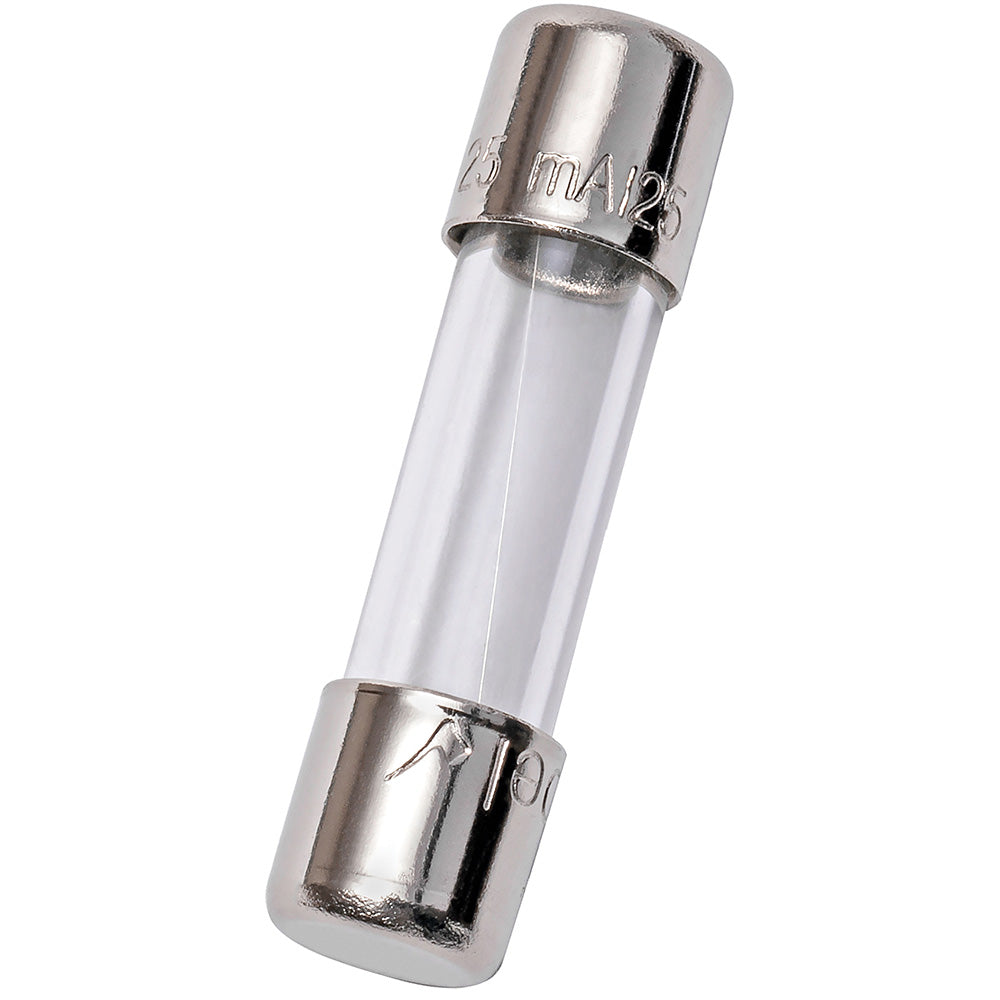

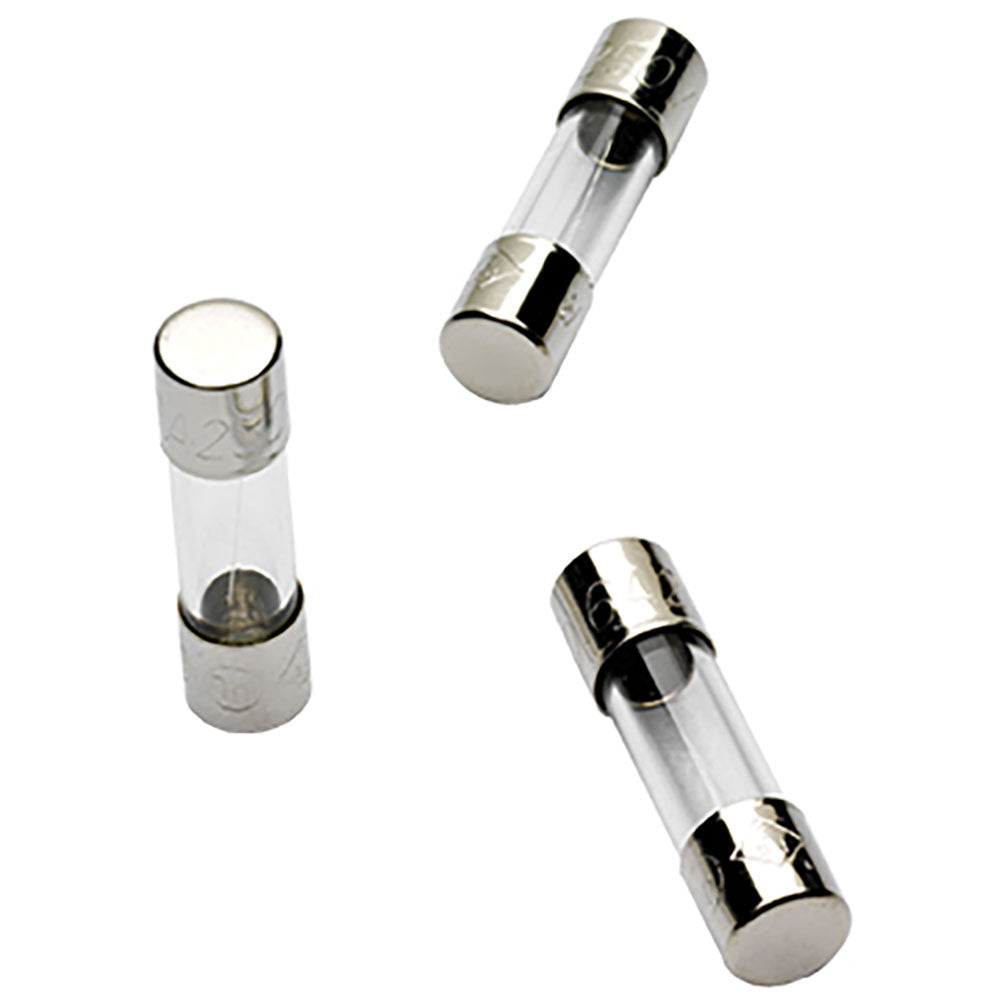

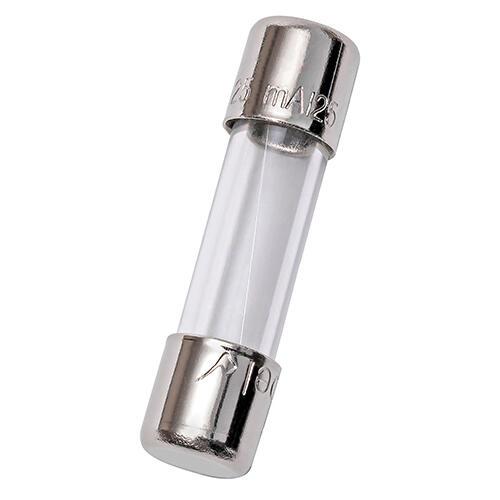

GGM8 is an Eaton 8 Amp, 250 Volt fast acting glass fuse from the GGM Series designed for low voltage circuit protection.GGM8 features a 5mm x 20mm glass tube construction with nickel-plated brass end caps and a fast acting characteristic suitable for protecting sensitive electronic equipment. It has an interrupting rating of 10,000 AIC at 125 VAC and is UL Listed and CSA Certified.
- Key Specifications
- Amperage: 8 Amps
- Voltage Rating: 250 Volts AC
- Fuse Type: Fast Acting Glass Tube
- Physical Size: 5mm x 20mm
- Interrupting Rating: 10,000 AIC @ 125 VAC
- Series: GGM
- Mounting Type: Inline Fuse
- Certifications: UL Listed, CSA Certified
- Connection: Ferrule
- Manufacturer: Eaton
Specifications
- Part Number: GGM8
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : GGM Series
- Type : GGM
- Voltage : 125
- Amperage : 8
- AIC rating : 10kA@125Vac
- Connection : Ferrule
- Diameter : 5
- Barrels : 1
Product Data
- UPC : 78200176223
- GTIN : 00782001762230
- Country of Origin : China
- Dimensions : x 0.79 in x
- Weight : 0.005
