Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
GGM4

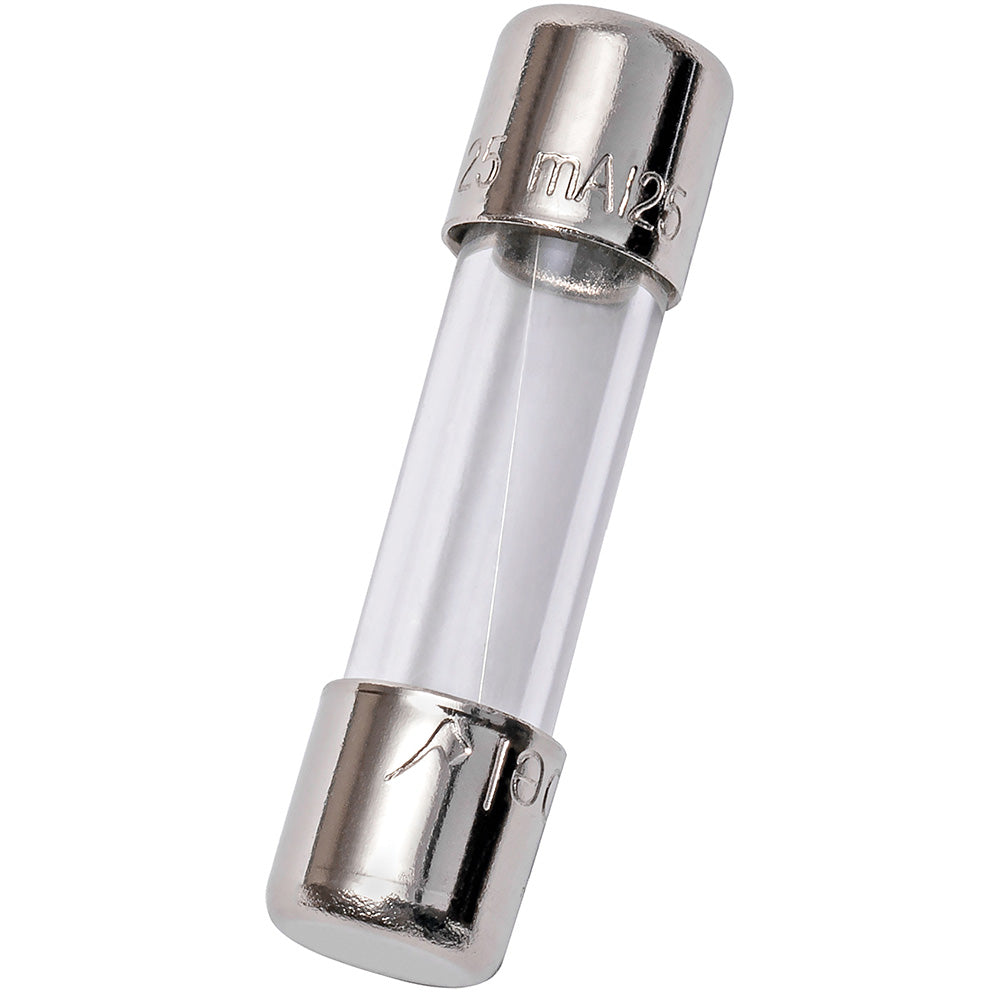

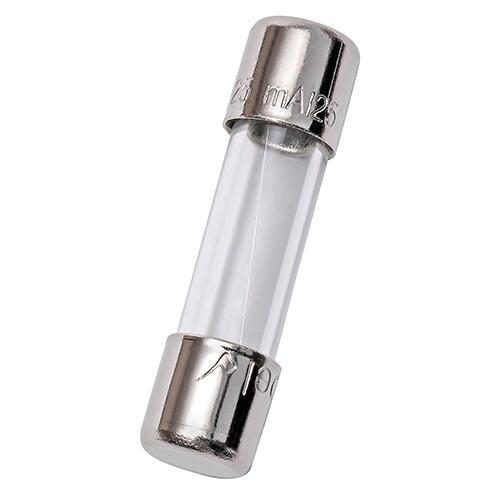

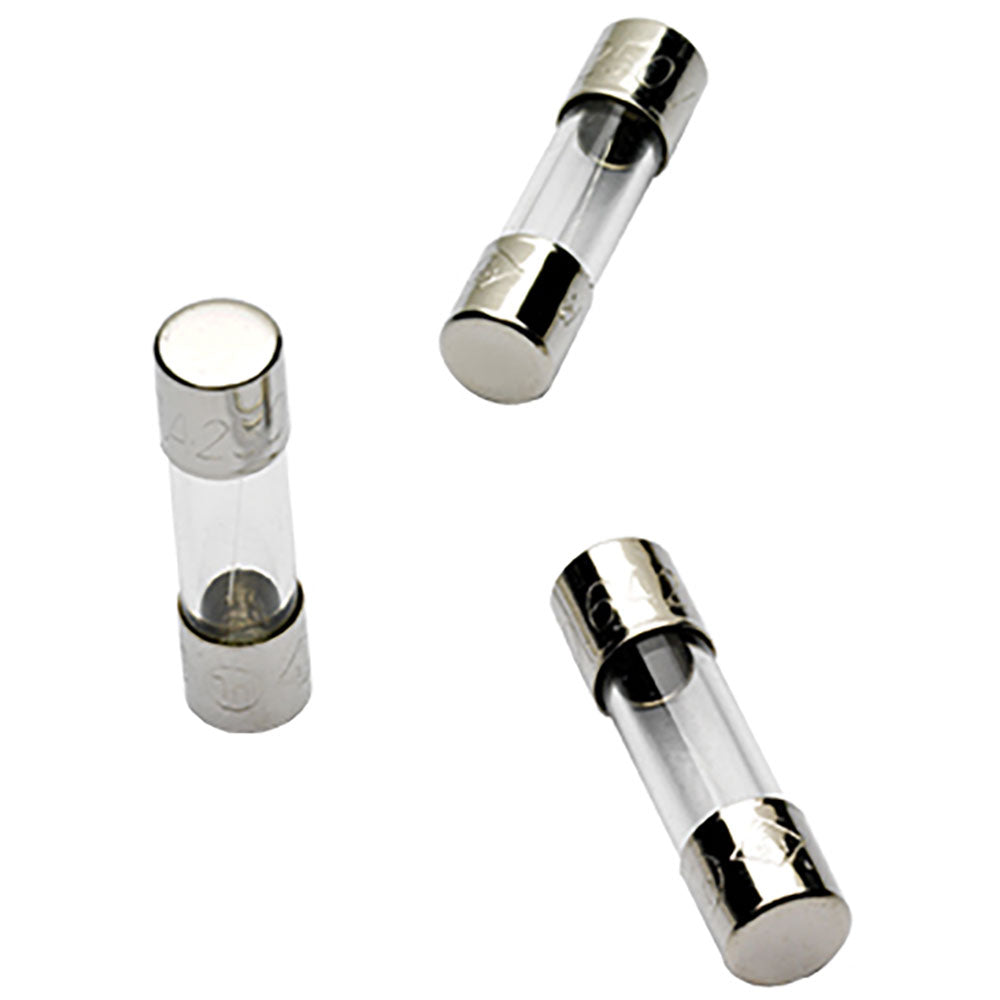

GGM4 is a fast-acting miniature glass fuse designed for reliable overcurrent protection in low-current circuits. This Eaton GGM Series fuse features a 4A current rating, 125VAC voltage rating, and a 5x20mm physical size with ferrule terminals. It is commonly used in appliances, electronics, and lighting fixtures for supplemental protection.
- Amperage Rating: 4A
- Voltage Rating: 125VAC
- Fuse Size: 5x20mm
- Mounting Type: Clip
- Interrupting Rating: 10kA @ 125VAC
- Series/Frame: GGM
- Speed/Characteristic: Fast-Acting
- Connection Type: Ferrule
- Body Material: Glass
- Fuse Class: Supplemental
- AC/DC: AC
- RoHS Compliant: Yes
Specifications
- Part Number: GGM4
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : GGM Series
- Type : GGM
- Voltage : 125
- Amperage : 4
- AIC rating : 10kA@125Vac
- Connection : Ferrule
- Diameter : 5
- Barrels : 1
Product Data
- UPC : 78200176219
- GTIN : 00782001762193
- Country of Origin : China
- Dimensions : x 0.79 in x
- Weight : 0.08
- Certification : Ul Listed Csa Certified
