Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
GGM1/2

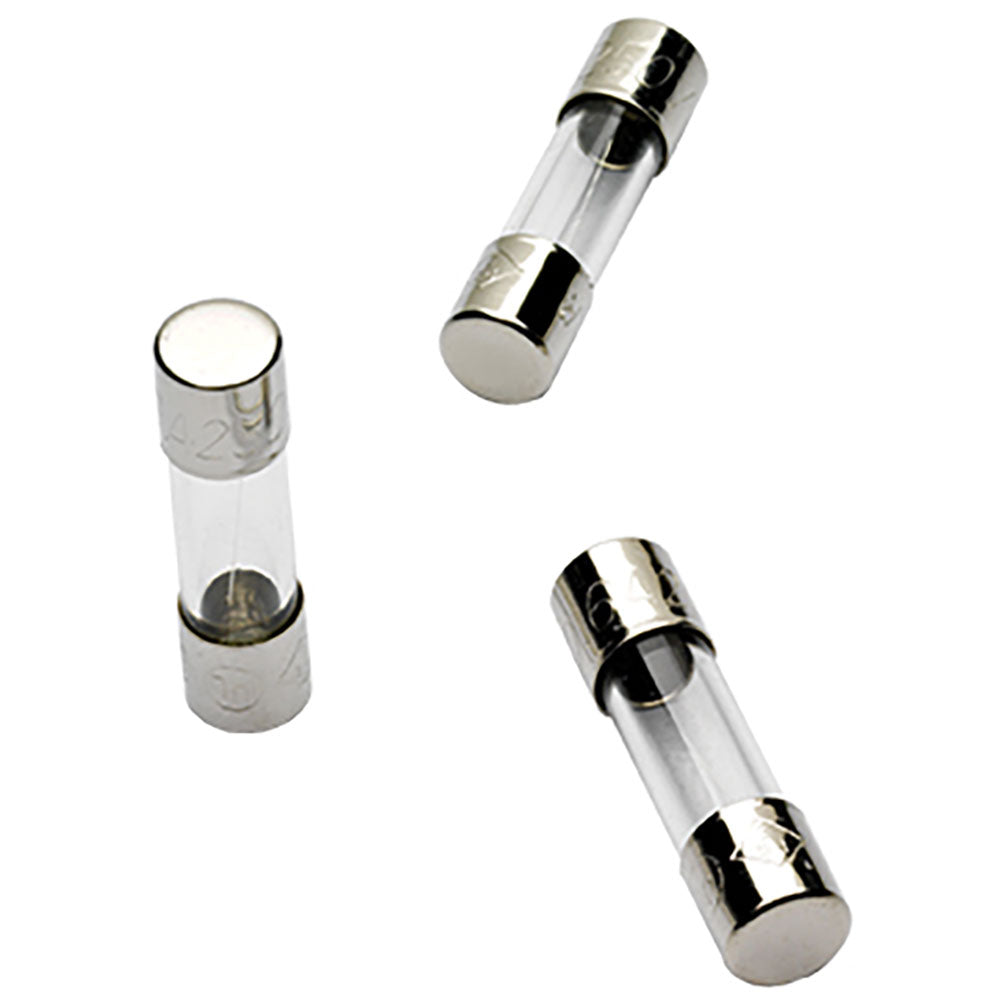

GGM1/2 is a Ferraz Shawmut fast acting glass fuse rated for 1/2 amp and 250 volts AC with a compact 5mm x 20mm size.
This fuse features a fast acting characteristic with a 200 amp interrupting rating at 250VAC and 10,000 amp interrupting rating at 125VAC. It is UL Listed and CSA Certified, designed for low voltage applications requiring reliable circuit protection in a small form factor.
- Amperage: 1/2 Amp
- Voltage: 250 Volts AC
- Fuse Type: Fast Acting Glass Tube
- Physical Size: 5mm x 20mm
- Interrupting Rating: 200 AIC @ 250VAC
- Interrupting Rating: 10,000 AIC @ 125VAC
- Mounting Type: Ferrule Connection
- Certifications: UL Listed, CSA Certified
- Series/Frame: GGM
- Poles: Single Pole
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: GGM1/2
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : GGM Series
- Type : GGM
- Voltage : 250
- Amperage : 1
- AIC rating : 200A@250Vac
- Connection : Ferrule
- Diameter : 5
- Barrels : 1
Product Data
- UPC : 782001762070
- GTIN : 00782001762070
- Weight : 5
