Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage
Description
GGM1/16

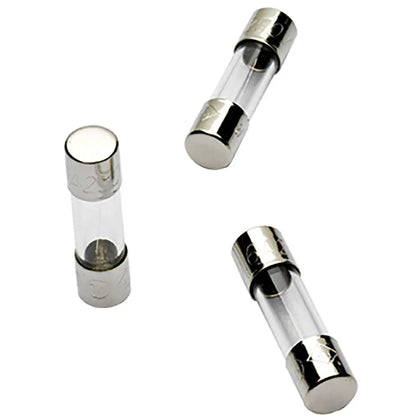

GGM1/16 is a fast-acting, glass tube fuse designed for supplemental circuit protection in electronic applications.
This Eaton fuse features a 1/16A (0.0625A) current rating, 250V AC voltage rating, and a compact 5mm x 20mm glass body. It is fast-acting for quick response to overcurrent conditions and is suitable for use in a variety of electronic circuits. The fuse is UL Listed and CSA Certified for safety and compliance.
-
Key Specifications
- Part Number: GGM1/16
- Manufacturer: Eaton
- Amperage: 1/16A (0.0625A)
- Voltage: 250V AC
- Poles: 1
- Mounting Type: Clip (ferrule)
- Interrupt Rating: 100 AIC @ 250VAC
- Series/Frame: GGM
- Trip Unit: Fast-acting (quick blow)
- Body Material: Glass
- Dimensions: 5mm x 20mm
- Certifications: UL Listed, CSA Certified
- Supplemental Protection
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: GGM1/16
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : GGM Series
- Type : GGM
- Voltage : 250
- Amperage : 1
- AIC rating : 100A@250Vac
- Connection : Ferrule
- Diameter : 5
- Barrels : 1
Product Data
- Weight : 0.08
