Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage
Description
GGM1/10

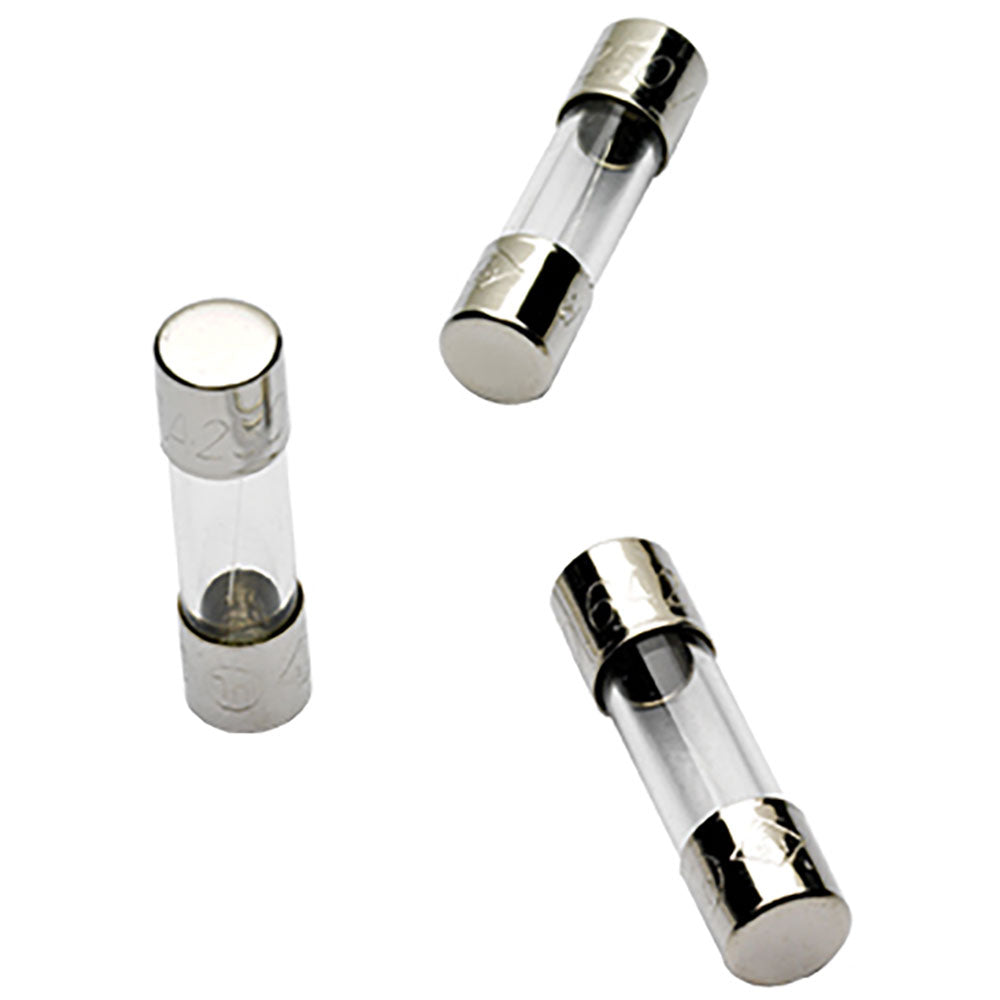

GGM1/10 is a fast-acting glass cylindrical fuse from Eaton's GGM series, designed for reliable circuit protection in low-amperage applications. This fuse features a 5 mm diameter and 20 mm length, making it suitable for a wide range of industrial and commercial equipment. The GGM1/10 fuse is engineered for circuits requiring precise protection with a 0.1 ampere current rating and a maximum voltage of 250 volts AC. It is constructed with a glass tube body and nickel-plated end caps for durability and consistent performance. The fuse is fast-acting, providing quick response to overcurrent conditions to help prevent equipment damage.
- Series: GGM
- Amperage: 0.1 A
- Voltage: 250 V AC
- Physical Size: 5 mm x 20 mm
- Mounting Type: Clip
- Interrupt Rating: 100 kA at 125 V AC
- Speed: Fast-Acting
- Construction: Glass tube with nickel-plated end caps
- Application: Low-amperage circuit protection
- Standards: UL Listed, CSA Certified
Specifications
- Part Number: GGM1/10
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : GGM Series
- Type : GGM
- Voltage : 250
- Amperage : 1
- AIC rating : 200A@250Vac
- Connection : Ferrule
- Diameter : 5
- Barrels : 1
Product Data
- Weight : 5.19
