Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
GGC8/10

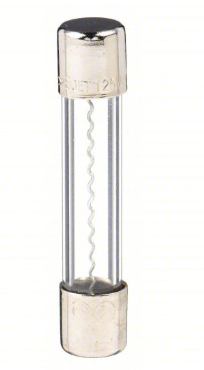

GGC8/10 is an Eaton fast acting glass tube fuse rated at 8 Amps and 250 Volts AC designed for circuit protection.This fuse features a 1/4 inch by 1 1/4 inch physical size with nickel plated brass end caps, providing reliable fast acting protection for electrical circuits. It has an interrupting rating of 10,000 AIC at 125 VAC and 35 AIC at 250 VAC, suitable for low voltage applications requiring quick response to overcurrent conditions.
- Amperage Rating: 8 A
- Voltage Rating: 250 V AC
- Fuse Type: Fast Acting Glass Tube
- Physical Size: 1/4 inch x 1 1/4 inch
- End Caps: Nickel Plated Brass
- Interrupting Rating: 10,000 AIC @ 125 VAC, 35 AIC @ 250 VAC
- Mounting Type: Cartridge
- Certifications: UL Listed, CSA Certified
Specifications
- Part Number: GGC8/10
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : GGC Series
- Type : GGC
- Voltage : 250
- Amperage : 8
- AIC rating : 200kA@250Vac
- Connection : Ferrule
- Diameter : 0.25
- Barrels : 1
Product Data
- UPC : 782001769949
- Country of Origin : China
- Weight : 0.01
