Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage
Description
GGC3/16

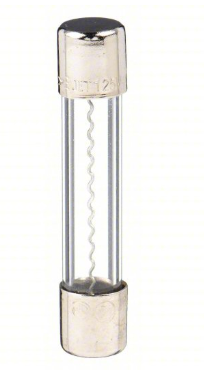

GGC3/16 is a fast-acting miniature glass tube fuse designed for supplemental circuit protection in electronic and general-purpose applications.
This compact fuse features a 1/4 inch diameter by 1-1/4 inch length form factor with nickel-plated brass end caps. The GGC3/16 is rated for 250 VAC and provides reliable overcurrent protection with a 10 kA interrupting rating at 125 VAC and 200 AIC at 250 VAC. UL Listed and CSA Certified, this fuse meets industry standards for safety and performance.
- Amperage Rating: 3/16A (0.1875A)
- Voltage Rating: 250 VAC
- Interrupting Rating: 10 kA @ 125VAC, 200 AIC @ 250VAC
- Fuse Type: Supplemental, Fast-Acting
- Physical Size: 1/4 inch diameter x 1-1/4 inch length
- End Cap Material: Nickel-plated brass
- Mounting Type: Clip
- Certifications: UL Listed, CSA Certified
- Series: GGC (Glass Ceramic)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: GGC3/16
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : GGC Series
- Type : GGC
- Voltage : 250
- Amperage : 3
- AIC rating : 200kA@250Vac
- Connection : Ferrule
- Diameter : 0.25
- Barrels : 1
Product Data
- Weight : 0.08
