Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
GGC3

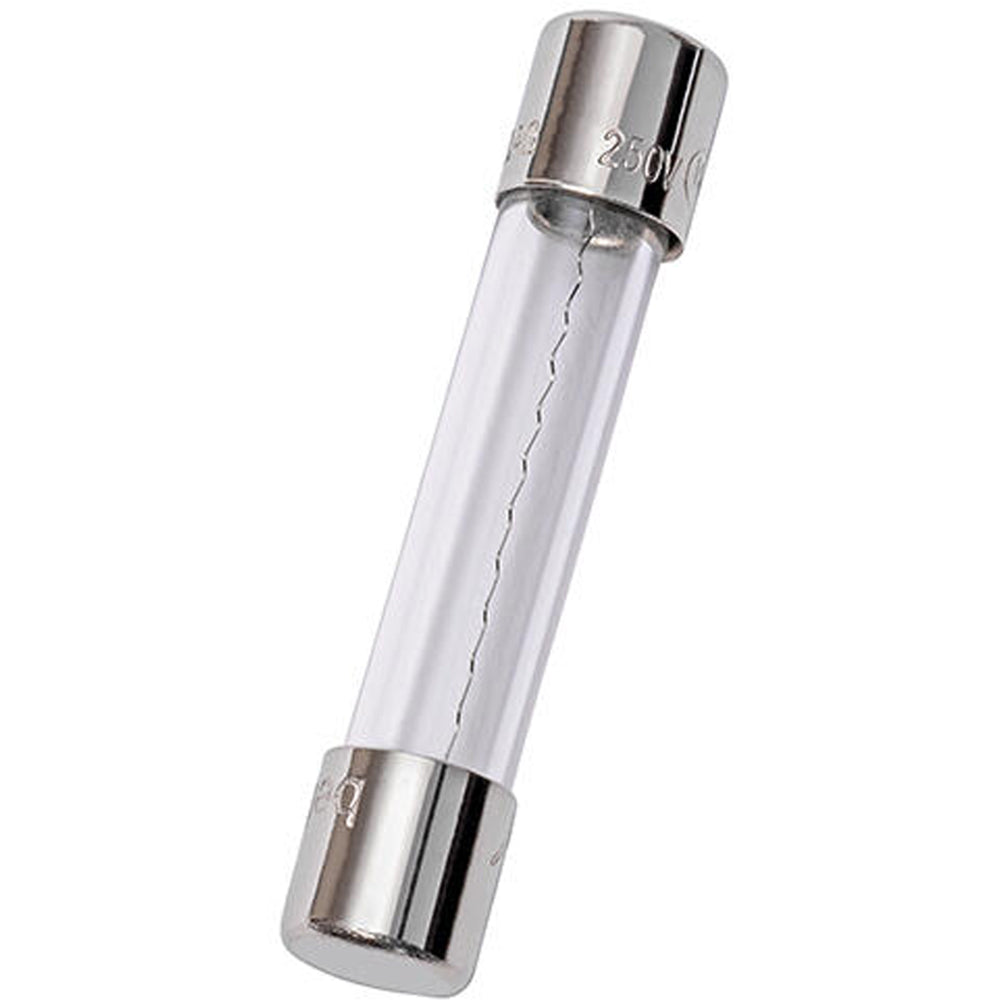

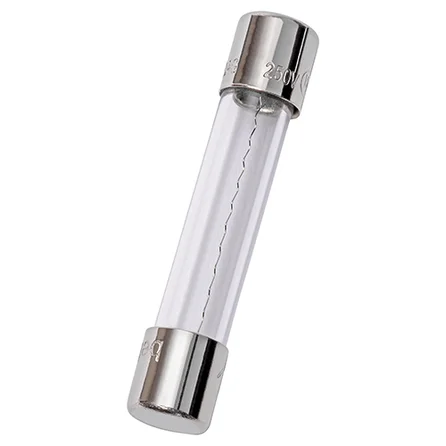

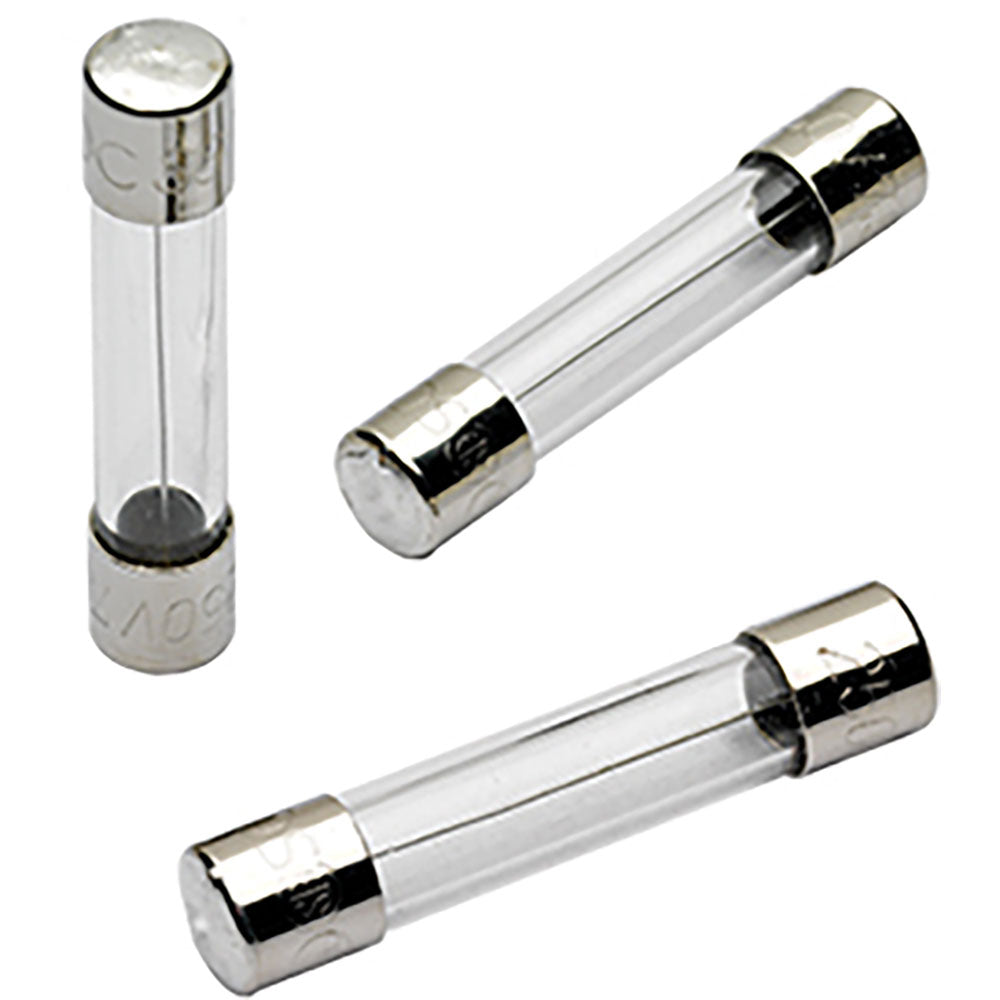

GGC3 is a Ferraz Shawmut fast acting miniature glass fuse rated for 3 amps and 250 volts AC.This fuse features a cylindrical glass body measuring 1/4 inch diameter by 1-1/4 inch length, designed for clip mounting with ferrule terminals. It provides overcurrent protection with a 200 amp interrupting rating at 250VAC and 10,000 amp interrupting rating at 125VAC. The GGC3 fuse is UL Listed and CSA Certified, suitable for low-current circuit protection in appliances and electronics.
- Key Specifications
- Amperage: 3 Amps
- Voltage Rating: 250 Volts AC
- Fuse Type: Fast Acting
- Body Size: 1/4" diameter x 1-1/4" length
- Mounting Type: Clip
- Terminal Type: Ferrule
- Interrupting Rating: 200 AIC @ 250VAC, 10,000 AIC @ 125VAC
- Body Material: Glass
- Certifications: UL Listed, CSA Certified
- Fuse Class: Supplemental
- RoHS Compliant: Yes
Specifications
- Part Number: GGC3
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : GGC Series
- Type : GGC
- Voltage : 250
- Amperage : 3
- AIC rating : 200kA@250Vac
- Connection : Ferrule
- Diameter : 0.25
- Barrels : 1
Product Data
- UPC : 078200176070
- GTIN : 00782001760700
- Country of Origin : China
- Dimensions : x 1-1/2 in x
- Weight : 5
- Certification : CSA, UL
