Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
GGC25

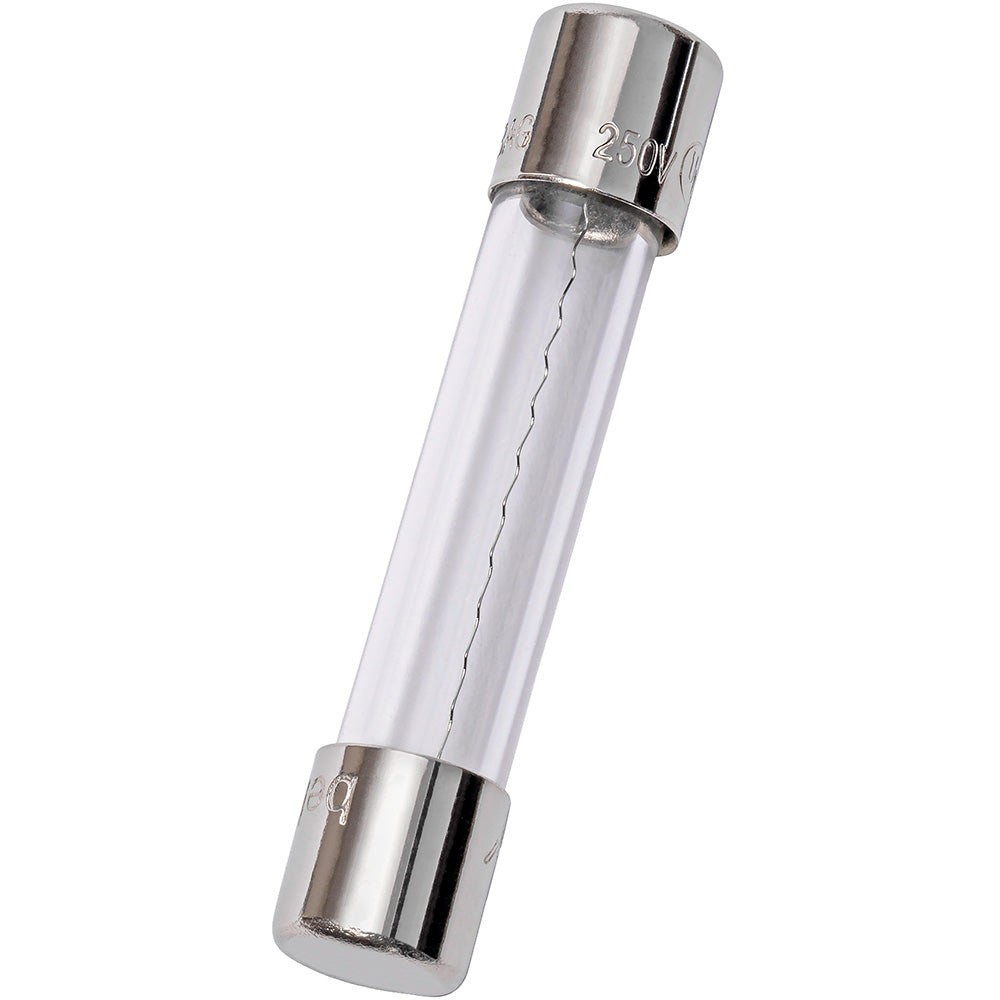

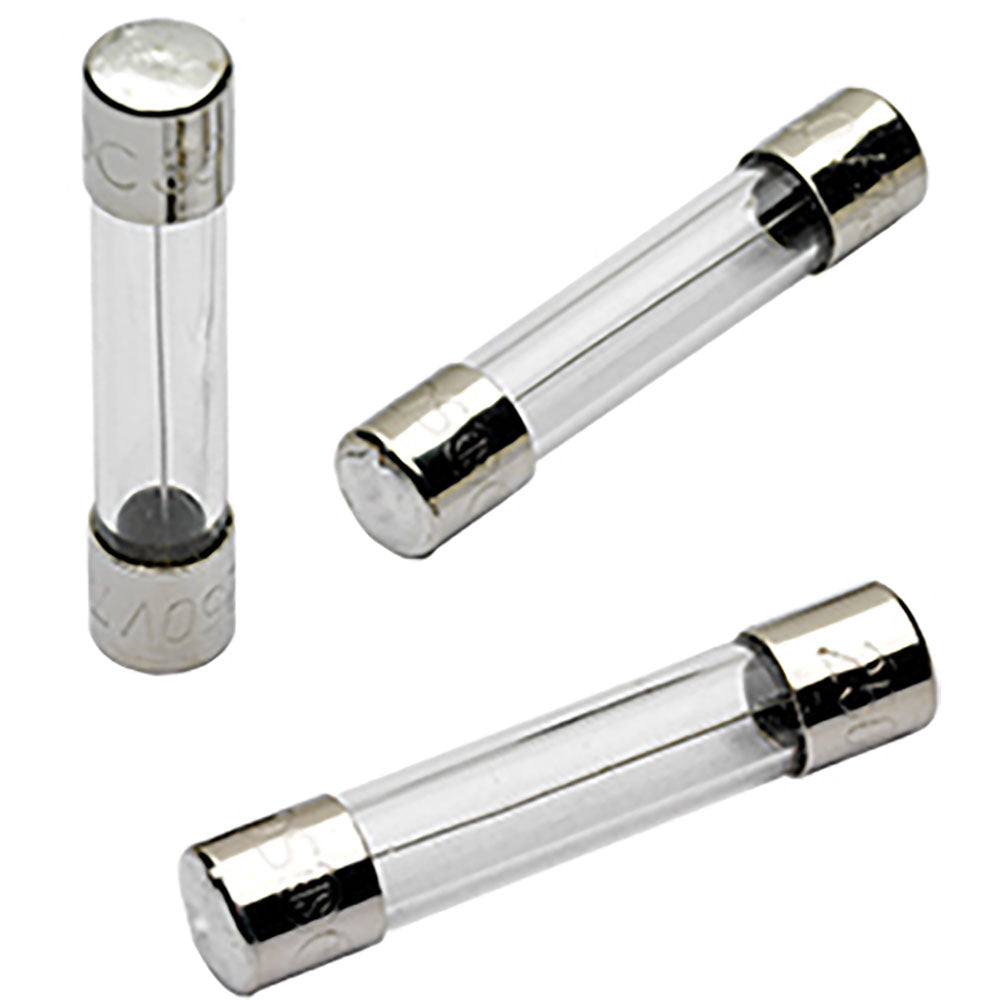

GGC25 is a fast acting glass fuse from Eaton's GGC Series, designed for reliable circuit protection in low voltage applications. This fuse features a 25A current rating, 32V AC voltage rating, and a 1/4" x 1 1/4" (6.3 x 32mm) physical size. It is constructed with a glass body and nickel-plated brass end caps for durability and consistent performance. The GGC25 is a supplemental class fuse, suitable for use in electronic and industrial equipment where fast-acting protection is required.
- Part Number: GGC25
- Manufacturer: Eaton
- Series: GGC Series
- Amperage: 25A
- Voltage: 32V AC
- Mounting Type: Clip
- Fuse Class: Supplemental
- Interrupt Rating: 1,000 AIC @ 32V AC
- Response Time: Fast Acting
- Body Material: Glass
- End Cap Material: Nickel Plated Brass
- Physical Size: 1/4" x 1 1/4" (6.3 x 32mm)
Specifications
- Part Number: GGC25
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : GGC Series
- Type : GGC
- Voltage : 32
- Amperage : 25
- AIC rating : 1000kA@32Vac
- Connection : Ferrule
- Diameter : 0.25
- Barrels : 1
Product Data
- UPC : 078200176080
- GTIN : 00782001760809
- Weight : 5.19
- Certification : Ul Listed Csa Certified
