Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
GGC12

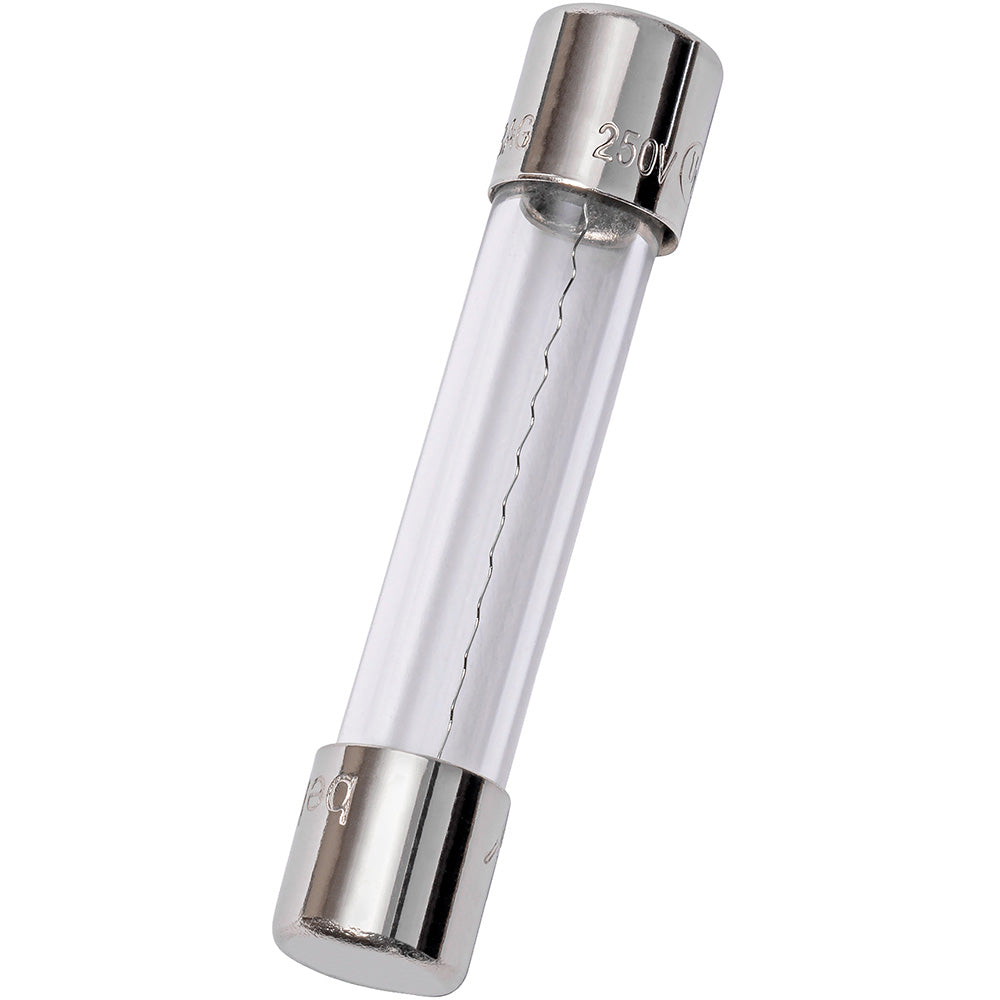

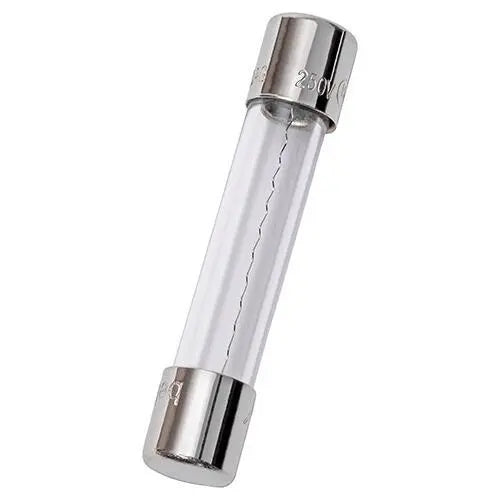

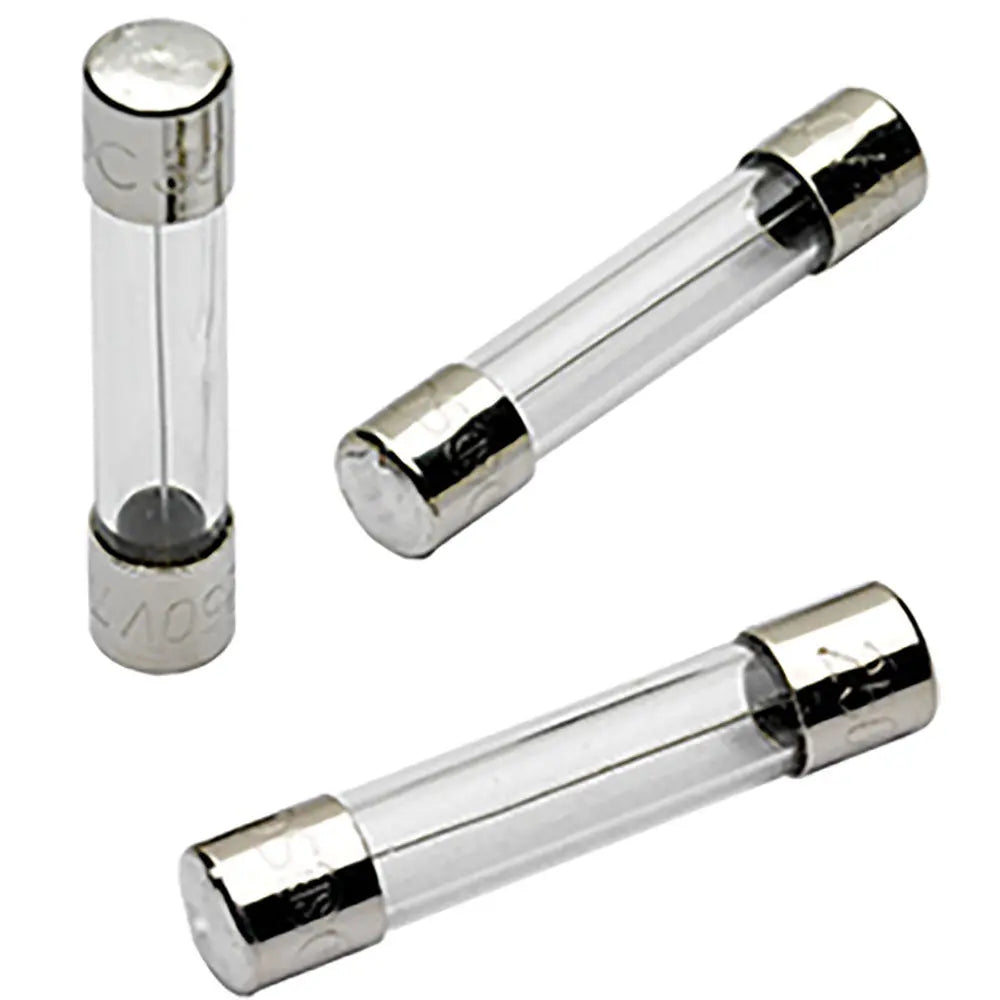

GGC12 is a fast-acting miniature fuse manufactured by Eaton, rated for 12 amps and 125 volts AC with a 10,000 amp interrupt rating.This fuse features a single-pole design with a 1/4 inch diameter by 1-1/4 inch length glass tube body and clip mounting type. It is UL listed and CSA certified, suitable for electronic circuit protection requiring fast response to overcurrent conditions.
- Amperage: 12 A
- Voltage Rating: 125 VAC
- Poles: Single
- Mounting Type: Clip Mount
- Interrupt Rating: 10,000 AIC (10 kA)
- Fuse Type: Fast-Acting
- Body Size: 1/4 in Dia x 1-1/4 in Length
- Certifications: UL Listed, CSA 248-14, RoHS Compliant
- Series: GGC Miniature Fuse
- Non-indicating, single element
Specifications
- Part Number: GGC12
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : GGC Series
- Type : GGC
- Voltage : 125
- Amperage : 12
- AIC rating : 10kA@250Vac
- Connection : Ferrule
- Diameter : 0.25
- Barrels : 1
Product Data
- UPC : 78200176077
- GTIN : 00782001760779
- Country of Origin : China
- Dimensions : x 1-1/2 in x
- Weight : 0.01
- Certification : UL, CSA
