Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
GGC10

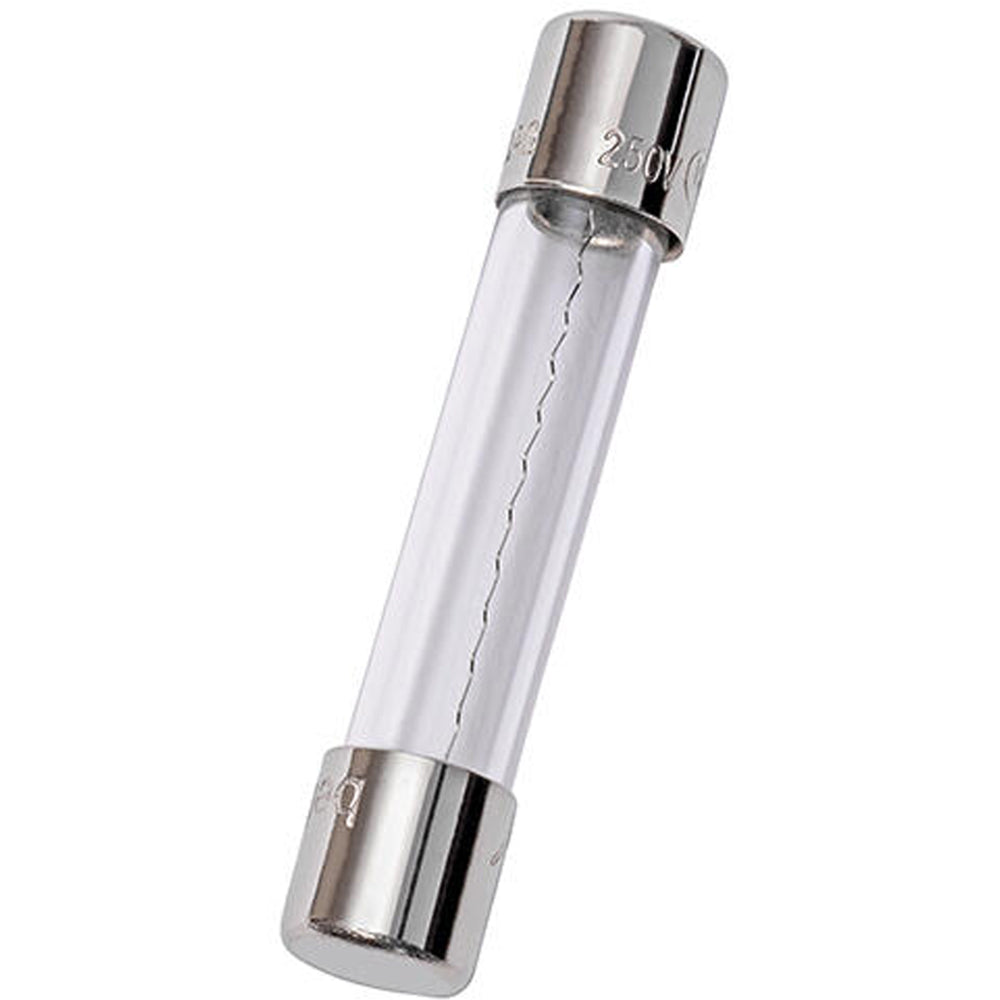

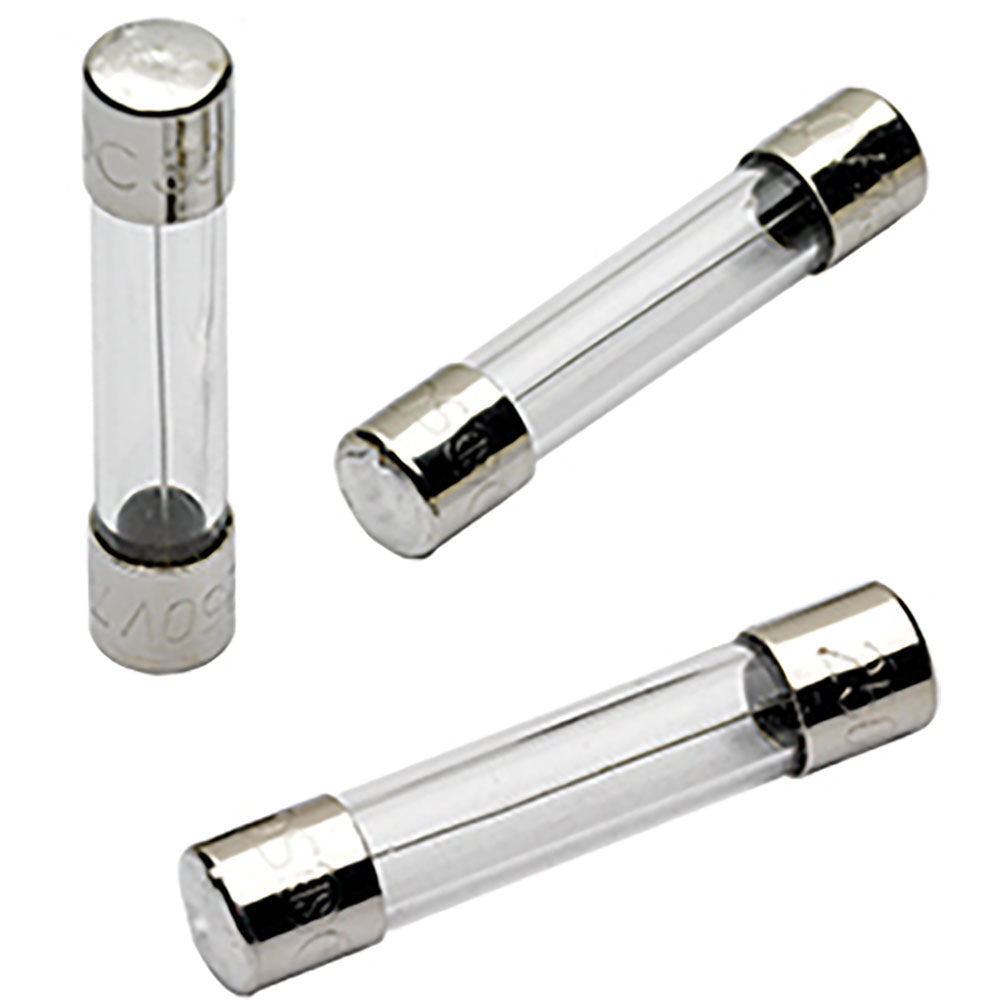

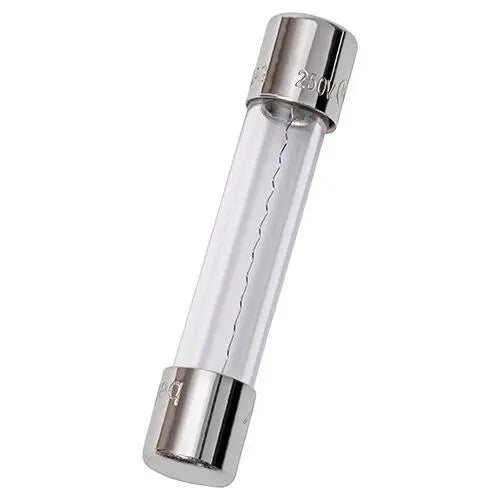

GGC10 is a Ferraz Shawmut fast-acting miniature fuse rated for 10 amps and 250 volts AC with a 1/4" x 1-1/4" glass body.
This fuse features a fast-acting trip unit designed for low voltage applications, with a ferrule connection type and a 200kA interrupt rating at 250VAC. It is UL recognized and CSA certified, suitable for protecting electrical circuits requiring quick response to overcurrent conditions.
- Key Specifications
- Amperage: 10 Amps
- Voltage Rating: 250 VAC
- Fuse Type: Fast Acting
- Body Size: 1/4" diameter x 1-1/4" length (6.3 x 32 mm)
- Connection: Ferrule
- Interrupt Rating: 200kA @ 250 VAC
- Certifications: UL Recognized, CSA Certified
- Mounting Type: Inline fuse holder compatible
- Series: GGC Miniature Fuse
- Part Number: GGC10
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : GGC Series
- Type : GGC
- Voltage : 250
- Amperage : 10
- AIC rating : 200kA@250Vac
- Connection : Ferrule
- Diameter : 0.25
- Barrels : 1
- UPC : 78200176076
- GTIN : 00782001760762
- Country of Origin : China
- Dimensions : x 1-1/2 in x
- Weight : 0.08
- Certification : CSA, UL
