Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
GGC1-6/10

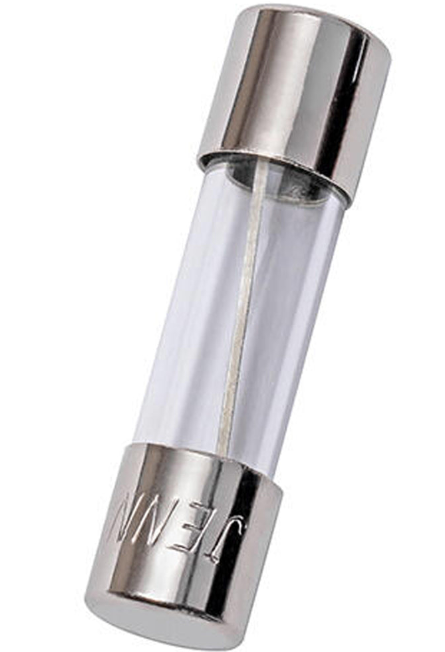

GGC1-6/10 is a fast-acting glass fuse from the Eaton GGC Series, designed for reliable overcurrent protection in low-current circuits. This fuse features a cylindrical glass body and is commonly used in electronics, appliances, and lighting applications where fast response to overloads is required. The GGC1-6/10 fuse operates at 250V AC and provides 1.6A of current protection. It has a 6x32mm size and is mounted using a clip-style terminal. The fuse is fast-acting, meaning it quickly interrupts the circuit in the event of an overload or short circuit, helping to prevent damage to sensitive equipment.
- Part Number: GGC1-6/10
- Manufacturer: Eaton
- Series: GGC
- Rated Voltage: 250V AC
- Rated Current: 1.6A
- Body Material: Glass
- Mounting Type: Clip
- Interrupt Rating: 10 kA at 125V AC, 200A at 250V AC
- Body Style: Cylindrical
- Speed/Characteristic: Fast-Acting
- Terminal Type: Ferrule
- Dimensions: 6x32mm
Specifications
- Part Number: GGC1-6/10
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : GGC Series
- Type : GGC
- Voltage : 250
- Amperage : 1
- AIC rating : 200kA@250Vac
- Connection : Ferrule
- Diameter : 0.25
- Barrels : 1
Product Data
- UPC : 78200176067
- GTIN : 00782001760670
- Country of Origin : China
- Dimensions : x 1-1/2 in x
- Weight : 0.6
- Certification : UL, CSA
