Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage
Description
GGC1-3/4

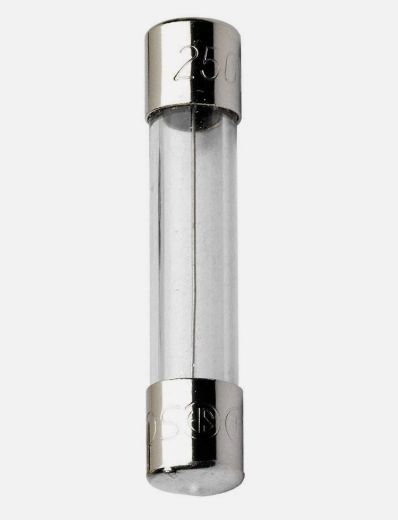

GGC1-3/4 is a fast-acting, glass tube fuse from Eaton, designed for reliable circuit protection in a wide range of electronic and electrical applications.
This cylindrical fuse features a visible element for easy inspection, a non-rejection style body, and is rated for 250V AC. It is part of the GGC series, known for consistent performance and quick response to overcurrent conditions. The fuse is suitable for use in panels and equipment where space is limited and fast interruption is required.
-
Key Specifications
- Amperage: 3/4A
- Voltage: 250V AC
- Poles: 1
- Mounting Type: Cylindrical, non-rejection
- Interrupt Rating: 10kA at 125V AC, 200A at 250V AC
- Series/Frame: GGC
- Trip Unit: Fast-acting
- Body Material: Glass
- Dimensions: 1/4" diameter x 1-1/4" length
- Visual Indication: Yes
- Certifications: Not specified
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: GGC1-3/4
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : GGC Series
- Type : GGC
- Voltage : 250
- Amperage : 1
- AIC rating : 200kA@250Vac
- Connection : Ferrule
- Diameter : 0.25
- Barrels : 1
Product Data
- Weight : 0.6
