Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage
Description
GGC1-1/2

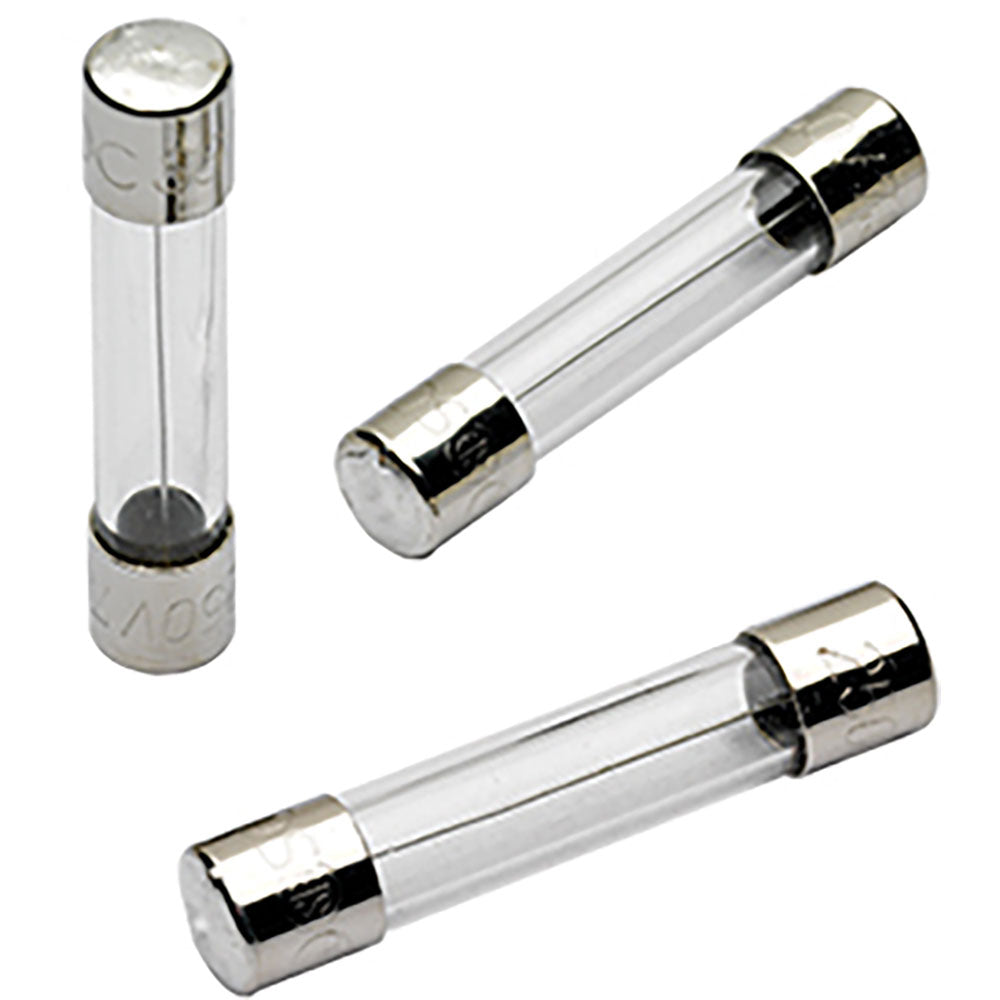

GGC1-1/2 is a fast-acting glass fuse from Eaton's GGC series, designed for reliable circuit protection in low-voltage applications. This fuse features a 0.5A current rating and a maximum voltage of 250V AC, making it suitable for a wide range of electrical systems. The GGC1-1/2 fuse is constructed with a cylindrical glass body and nickel-plated brass end caps for durability and secure connections. It is non-indicating, meaning it does not provide visual indication when blown. The fuse is fast-acting, providing quick response to overcurrent conditions to protect sensitive equipment.
- Series: GGC
- Speed: Fast-Acting
- Amps: 0.5A
- AC Voltage Rating: 250V AC
- Visual Indication: Non-Indicating
- Interrupt Rating: 100kA at 205V AC
- Body Style: Cylindrical
- Body Material: Glass
- End Cap Material: Nickel-plated Brass
- Mounting Type: Barrel
- DC Voltage Rating: Not Rated
- Certifications: UL Listed, CSA Component Acceptance
Specifications
- Part Number: GGC1-1/2
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : GGC Series
- Type : GGC
- Voltage : 250
- Amperage : 1
- AIC rating : 200kA@250Vac
- Connection : Ferrule
- Diameter : 0.25
- Barrels : 1
Product Data
- Weight : 12
