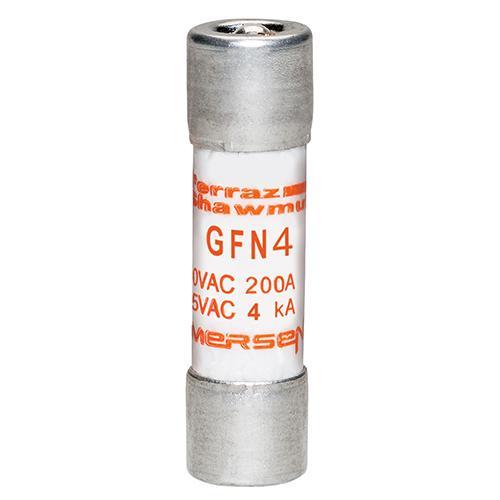

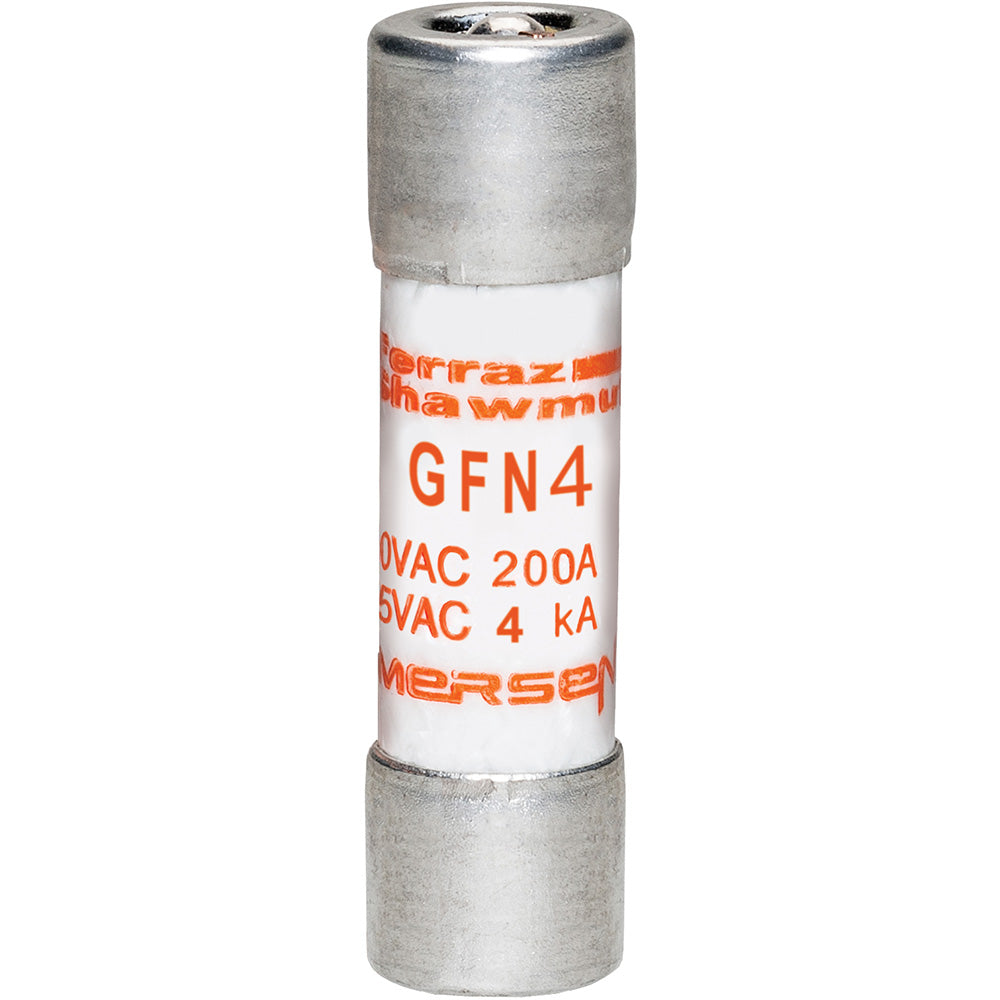

GFN4 - Mersen 4 Amp 250 Volt Midget Time Delay Fuse Indicating Ferrule Terminal

GFN4

GFN4 - Mersen GFN4 is a 4A time-delay midget fuse with pin indicator for supplemental circuit protection.The Mersen GFN4 belongs to the GFN series of indicating midget fuses in 10x38mm (13/32 x 1-1/2 inch) size. It features time-delay characteristics with 12 second response at 200% rating, ferrule terminals, cartridge/cylindrical body made of poly tube or glass, and a pin indicator that pops out on blown fuse for visual or remote signaling. Rated at 250VAC with 200kA AC interrupt rating, it suits control and solenoid circuits.Key Specifications

• Amperage Rating: 4A
• Voltage Rating: 250VAC
• Class: Midget
• Series/Frame: GFN
• Speed: Time Delay
• Dimensions: 10x38mm (13/32 x 1-1/2 inch)
• Body Material: Poly Tube or Glass
• Terminal Type: Ferrule
• Mounting: Clip
• Interrupt Rating: 200kA AC
• Indicating: Yes, Pin Indicator
• Certifications: UL 248-14 (File E33925), CSA C22.2 No. 248.14

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: GFN4
• Manufacturer : Mersen
• Brand : Mersen
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : GFN
• Type : GFN
• Voltage : 240 AC
• Amperage : 4
• AIC rating : 100kA@240V
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• Diameter : 0.41
• Class Rating : Midget
• Configuration : Single
• Barrels : 1

Product Data

• UPC : 078200176172
• GTIN : 00782001761721
• Country of Origin : Mexico
• Weight : 5.19
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• Certification : UL listed
