GFN3/10 - Eaton Bussmann Series 0.3A 250V Time-Delay Fuse Dual Element Non-Indicating

GFN3/10

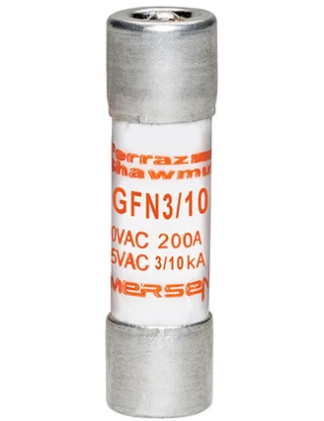

GFN3/10 is a Mersen midget time-delay fuse rated for 0.3A at 250VAC with a 200kA interrupt rating, designed for supplemental protection of circuits requiring time-delay and blown fuse indication such as solenoid and control circuits. This cartridge-style fuse features a pin indicator that visually signals when the fuse has operated and can actuate a switch for remote signaling. The fuse delivers a 12-second time-delay at 200% rating and is compatible with UltraSafe fuse holders.

• Current Rating: 0.3A (3/10A)
• Voltage Rating: 250VAC
• Fuse Class: Midget
• Speed: Time Delay
• Body Style: Cartridge
• Termination: Ferrule
• Interrupt Rating: 200kA
• Pin Indicator: Yes
• Frequency: 50/60Hz
• UL Listed: Standard 248-14 (File E33925)
• CSA Certified: Standard C22.2 No. 248.14
• Physical Size: 13/32 in Dia x 1.5 in L

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: GFN3/10
• Manufacturer : Mersen
• Brand : Mersen
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : GFN
• Type : GFN
• Voltage : 240 AC
• Amperage : 3
• AIC rating : 100kA@240V
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• Diameter : 0.41
• Class Rating : Midget
• Configuration : Single
• Barrels : 1

Product Data

• UPC : 78200176154
• GTIN : 00782001761547
• Country of Origin : Mexico
• Weight : 3
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• Certification : UL listed
