Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
GFN20

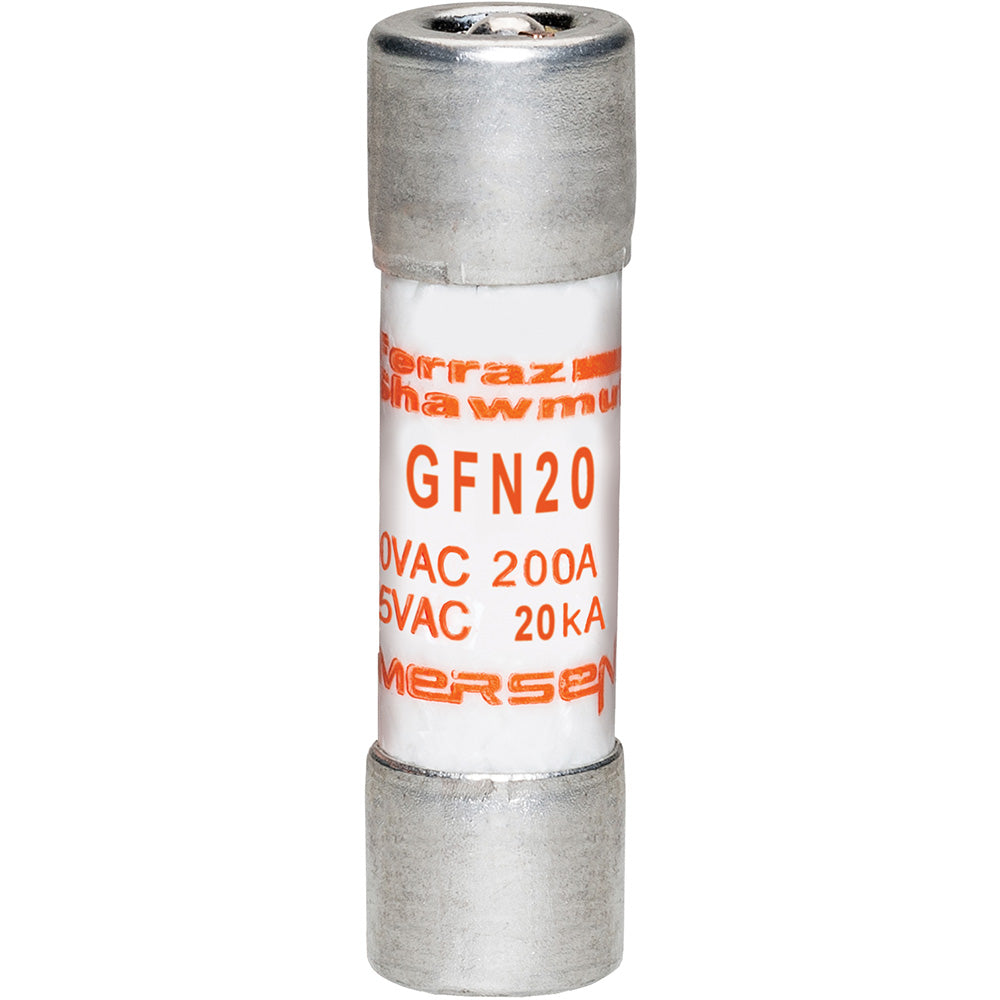

GFN20 - Mersen GFN20 is a 20A 250VAC midget time delay fuse with pin indicator for reliable circuit protection.The Mersen GFN20 midget fuse features time delay characteristics, pin indicator for visual blown fuse identification, and ferrule terminals. It measures 13/32 inch diameter by 1-1/2 inch length with 12 second time delay at 200% rating. Designed for use with UltraSafe fuse holders, it provides high performance in demanding applications.
- Amperage: 20A
- Voltage Rating: 250VAC
- Fuse Class: Midget
- Speed: Time Delay
- Indicator: Pin Type
- Dimensions: 13/32" x 1-1/2"
- Terminals: Ferrule
- Mounting: Clip
- Certifications: UL Listed, CSA Certified
- Interrupting Rating: 200kA @ 250VAC
Specifications
- Part Number: GFN20
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : GFN
- Type : GFN
- Voltage : 240 AC
- Amperage : 20
- AIC rating : 100kA@240V
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Diameter : 0.41
- Class Rating : Midget
- Configuration : Single
- Barrels : 2
Product Data
- UPC : 78200176778
- GTIN : 00782001767785
- Country of Origin : Mexico
- Weight : 3
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Certification : UL listed
