2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
GFN2

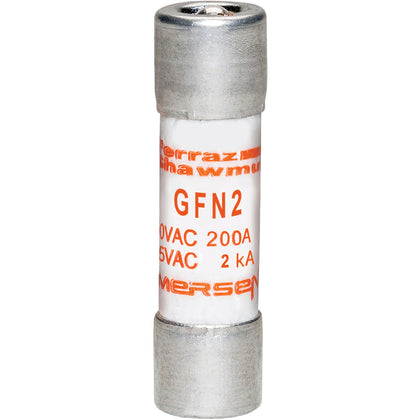

GFN2 - Mersen GFN Series midget time-delay fuse with visual pin indicator for supplemental circuit protection.Mersen GFN2 is a low voltage, indicating midget fuse designed for applications requiring time-delay characteristics and blown fuse indication, such as solenoid or control circuits. It features a glass or poly tube body, ferrule terminals, cartridge termination, and dimensions of 13/32 inch diameter by 1-1/2 inch length. Time-delay response at 12 seconds at 200% rating with tin-plated copper contacts. Compatible with UltraSafe fuse holders.Key Specifications
- Manufacturer: Mersen
- Series: GFN
- Amperage Rating: 2A
- Voltage Rating: 250VAC
- Fuse Class: Midget
- Speed: Time-Delay
- Indicating: Yes, pin indicator
- Body Style: Cylindrical, cartridge
- Body Material: Glass or poly tube
- Dimensions: 13/32 in x 1-1/2 in
- Terminal Type: Ferrule
- Mounting: Clip
- Standards: UL 248-14, CSA C22.2 No. 248.14
Specifications
- Part Number: GFN2
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : GFN
- Type : GFN
- Voltage : 240 AC
- Amperage : 2
- AIC rating : 100kA@240V
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Diameter : 0.41
- Class Rating : Midget
- Configuration : Single
- Barrels : 1
Product Data
- UPC : 078200176165
- GTIN : 00782001761653
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 3
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Certification : UL listed
