Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
GFN12

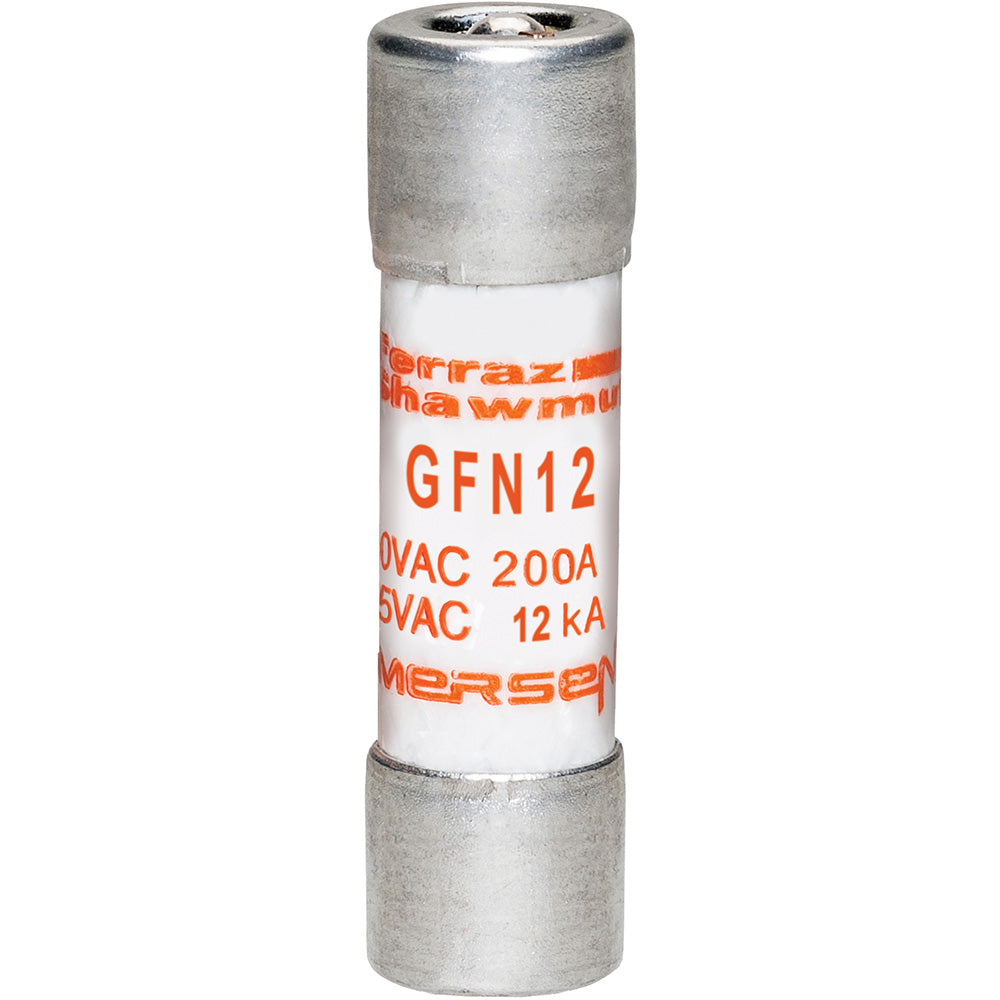

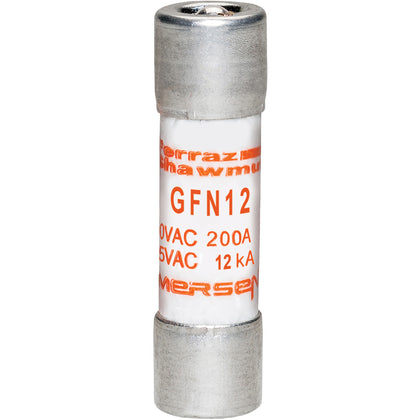

GFN12 - Mersen GFN Series midget time-delay fuse with pin indicator for visual blown fuse indication.Mersen GFN12 is a low voltage, indicating, non-rejection midget class fuse rated at 12A with ferrule terminals and clip mounting. It features a cylindrical polytube body measuring 13/32 inch diameter by 1-1/2 inch length, 12 second time-delay at 200% rating, and tin-plated copper contacts. Designed for supplemental protection in solenoid or control circuits, not for branch circuit protection. Compatible with UltraSafe fuse holders.Key Specifications
- Amperage Rating: 12A
- Voltage Rating: 250VAC
- Class: Midget
- Series: GFN
- Speed/Characteristic: Time Delay
- Interrupt Rating: 10kA
- Indication: Pin/Visual Indicator
- Terminal Type: Ferrule
- Mounting Type: Clip
- Body Style: Cylindrical
- Body Material: Polytube
- Dimensions: 13/32 in. Dia x 1-1/2 in. L
- Certifications: UL Listed (File E33925), CSA Certified (C22.2 No. 248.14)
Specifications
- Part Number: GFN12
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : GFN
- Type : GFN
- Voltage : 240 AC
- Amperage : 12
- AIC rating : 100kA@240V
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Diameter : 0.41
- Class Rating : Midget
- Configuration : Single
- Barrels : 2
Product Data
- UPC : 78200176776
- GTIN : 00782001767761
- Country of Origin : Mexico
- Weight : 3
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Certification : UL listed
