Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

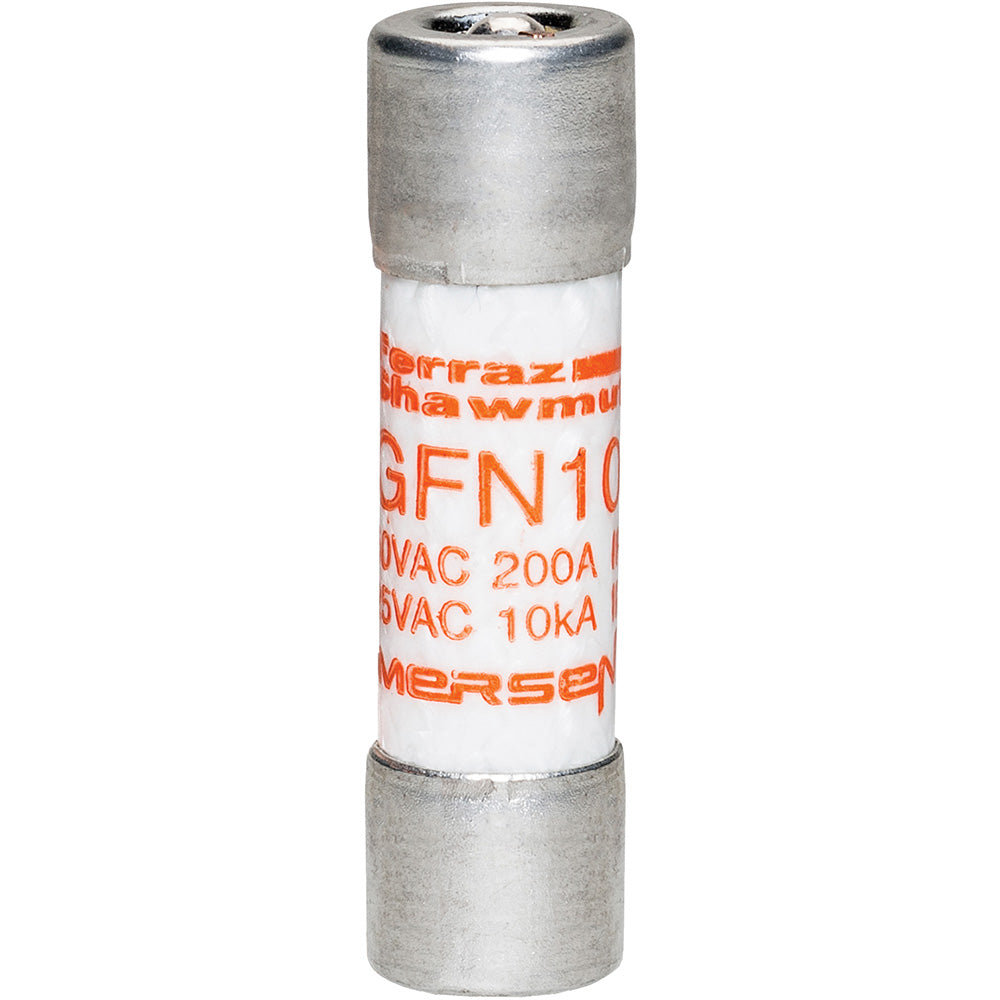

GFN10
GFN10 - Mersen GFN time delay midget fuse with pin indication for supplemental circuit protection.This low voltage fuse features a 10 A rating, 250 VAC, non-rejection design, ferrule terminals, and clip mounting in a 13/32 in dia x 1-1/2 in long cylindrical poly tube body. It provides 8-12 second response time at 200% overload with visual blown fuse indication.
- Series: GFN
- Amperage: 10 A
- Voltage: 250 VAC
- Class: Midget
- Speed: Time Delay
- Indication: Pin/Visual
- Interrupt Rating: 200 kA AC
- Mounting: Clip
- Terminals: Ferrule
- Dimensions: 13/32 in x 1-1/2 in
- Certifications: UL 248-14, CSA C22.2 No. 248.14
Specifications
- Part Number: GFN10
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : GFN
- Type : GFN
- Voltage : 240 AC
- Amperage : 10
- AIC rating : 100kA@240V
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Diameter : 0.41
- Class Rating : Midget
- Configuration : Single
- Barrels : 1
Product Data
- UPC : 78200176743
- GTIN : 00782001767433
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 3
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Certification : UL listed
