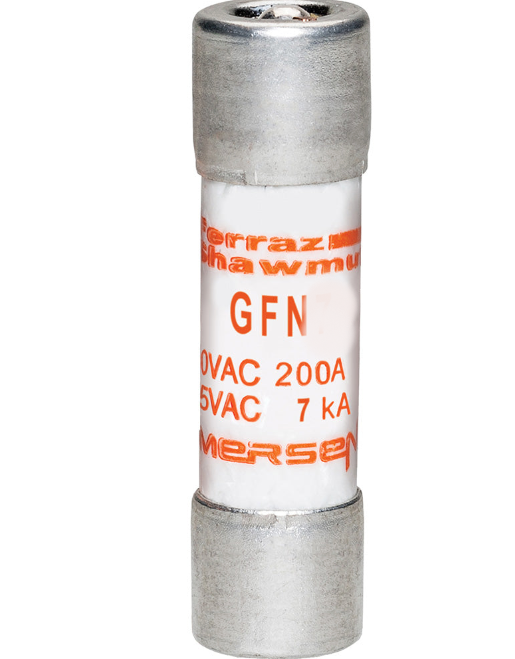

GFN1/10 - Mersen Ferraz Shawmut 1/10A 250V AC Midget Time-Delay Fuse

GFN1/10

GFN1/10 is a Mersen midget time-delay fuse with visual pin indicator for equipment protection and remote signaling applications. This ferrule-mount fuse features a built-in blown fuse indicator that pops out to provide visual indication when the fuse operates, and can be used to trip a switch for remote signaling. The fuse is rated for 250VAC with a 12-second time-delay at 200% rating and is not intended for branch circuit protection.

• Amperage Rating: 0.1 Amp (1/10A)
• Voltage Rating: 250VAC
• Fuse Class: Midget
• Speed Characteristic: Time-Delay
• Mounting Type: Ferrule
• Indication System: Visual Pin Indicator
• Connection Terminal Material: Tin-Plated Copper
• Body Material: PolyTube
• Physical Dimensions: 1.5 inches x 13/32 inches (10mm x 38mm)
• Interrupting Rating: 200,000 AIC at 250VAC
• Certifications: UL Listed to Standard 248-14, CSA Certified to Standard C22.2 No. 248.14
• Compatible with UltraSafe fuse holders (1/10A - 10A)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: GFN1/10
• Manufacturer : Mersen
• Brand : Mersen
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : GFN
• Type : GFN
• Voltage : 240 AC
• Amperage : 1
• AIC rating : 100kA@240V
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• Diameter : 0.41
• Class Rating : Midget
• Configuration : Single
• Barrels : 1

Product Data

• UPC : 78200176151
• GTIN : 00782001761516
• Country of Origin : Mexico
• Weight : 3
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• Certification : UL listed
