2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Siemens
- Sub-Category:Disconnect
Description
GF321NR

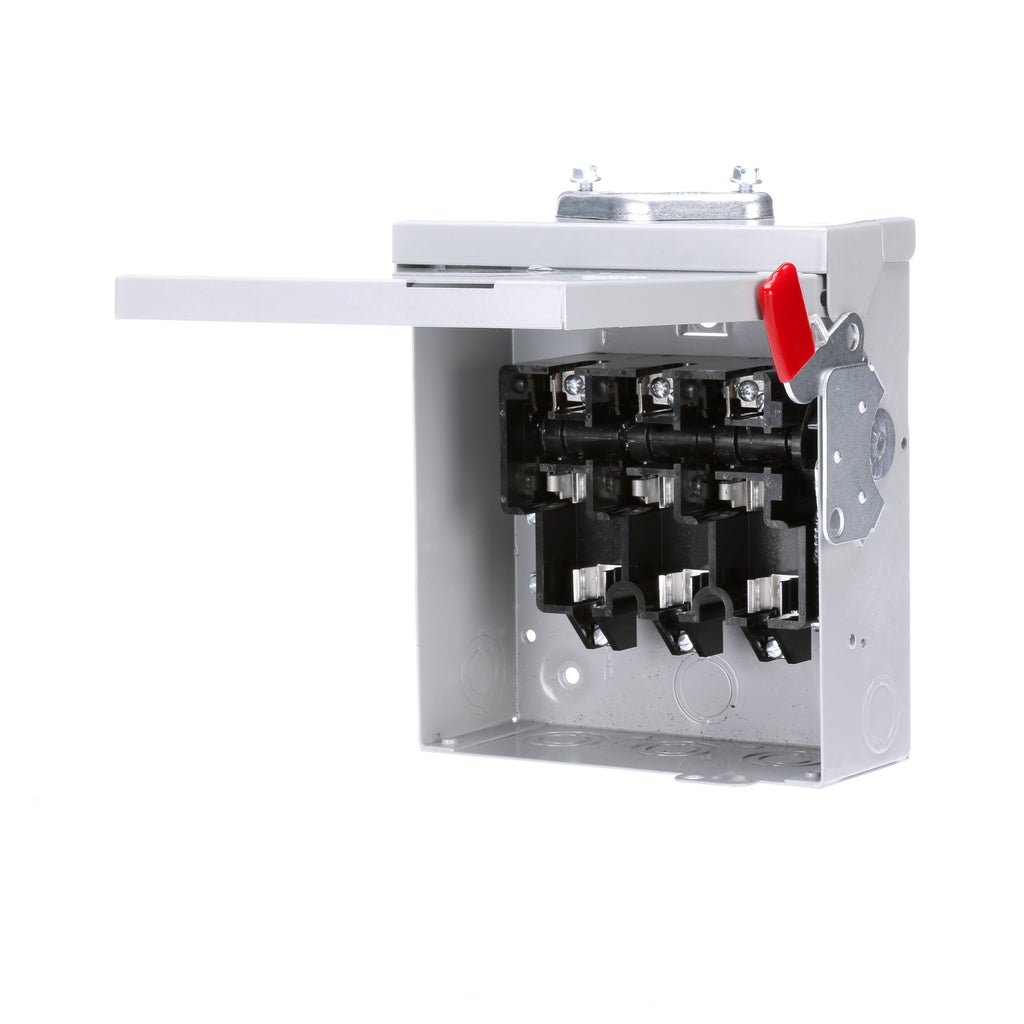

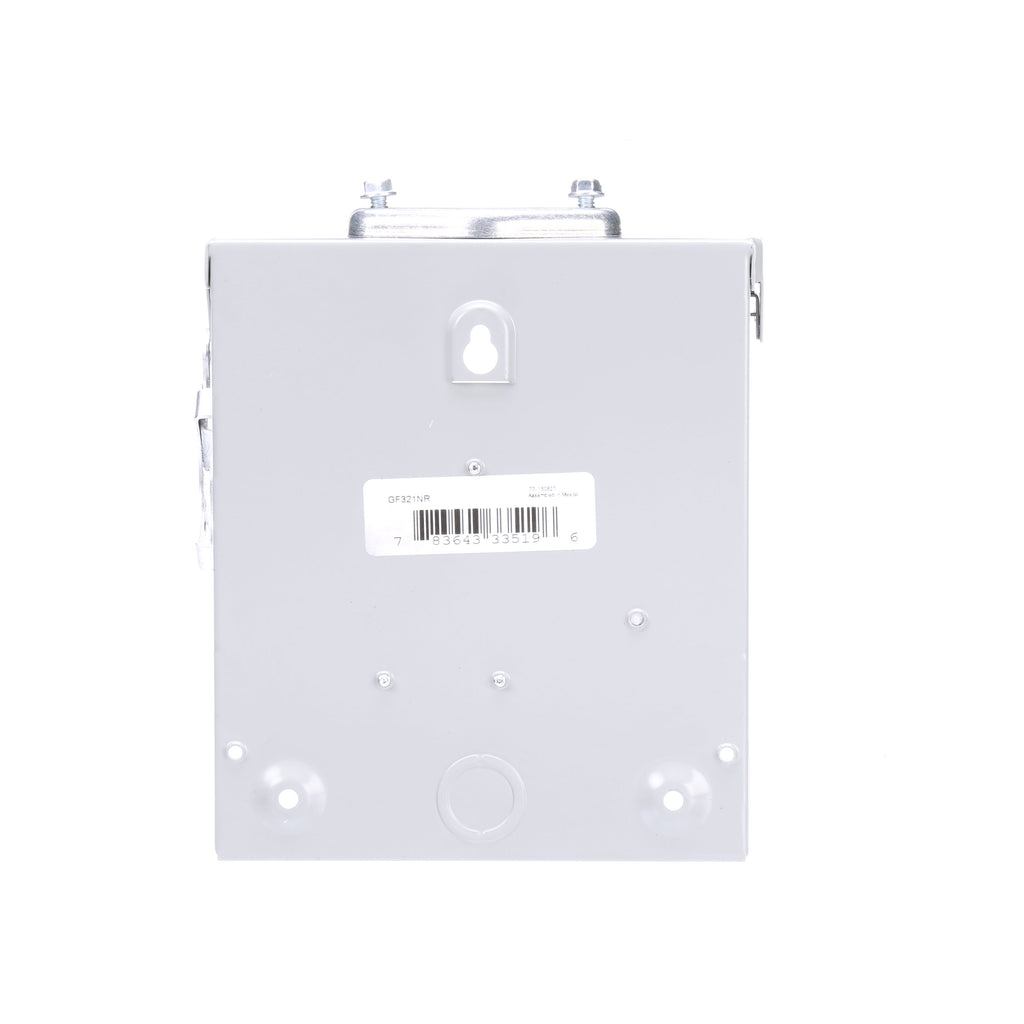

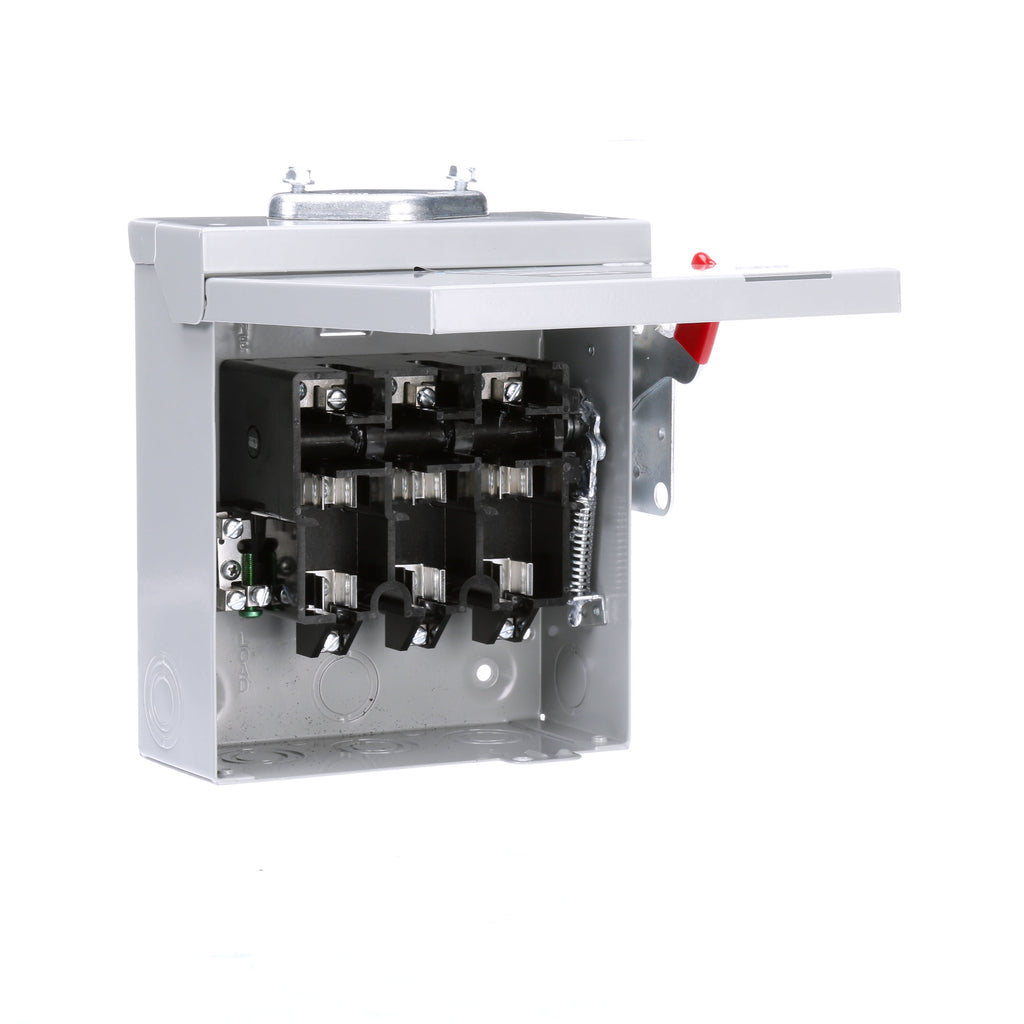

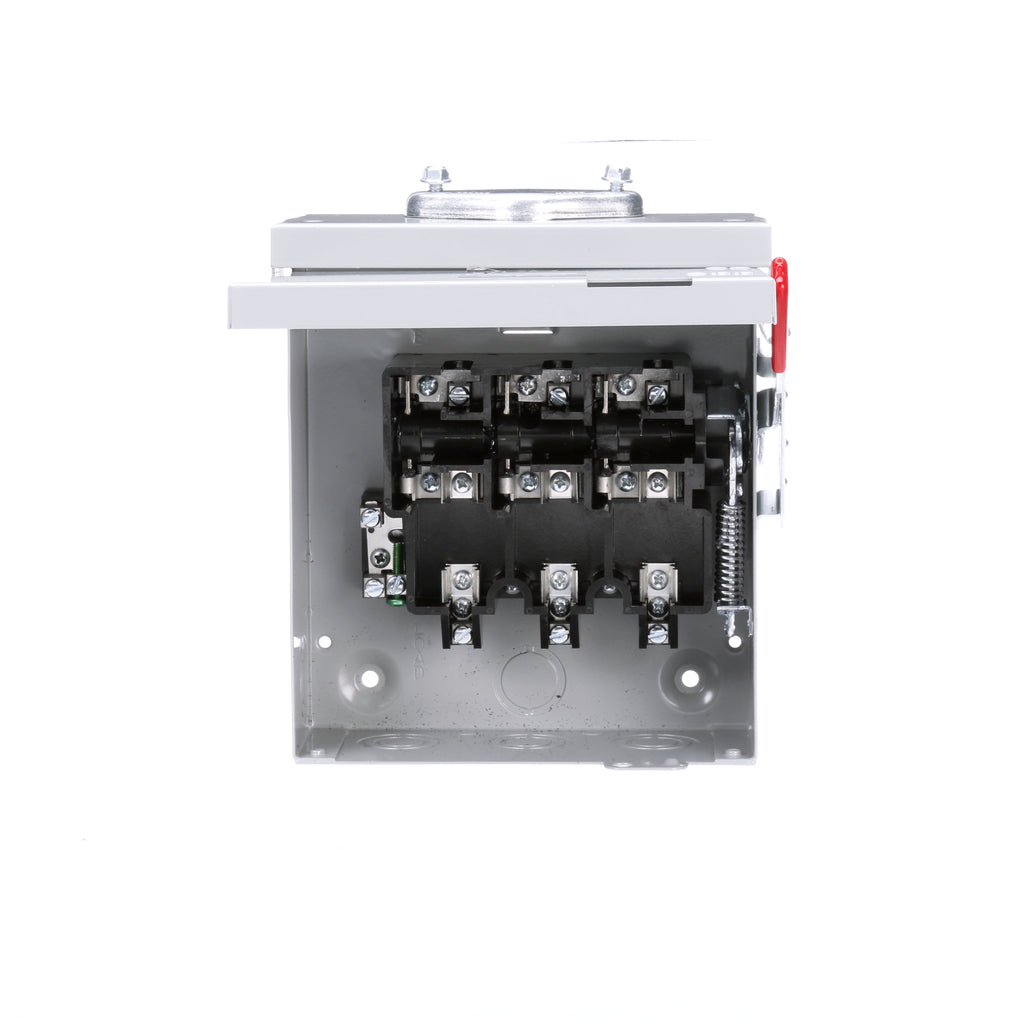

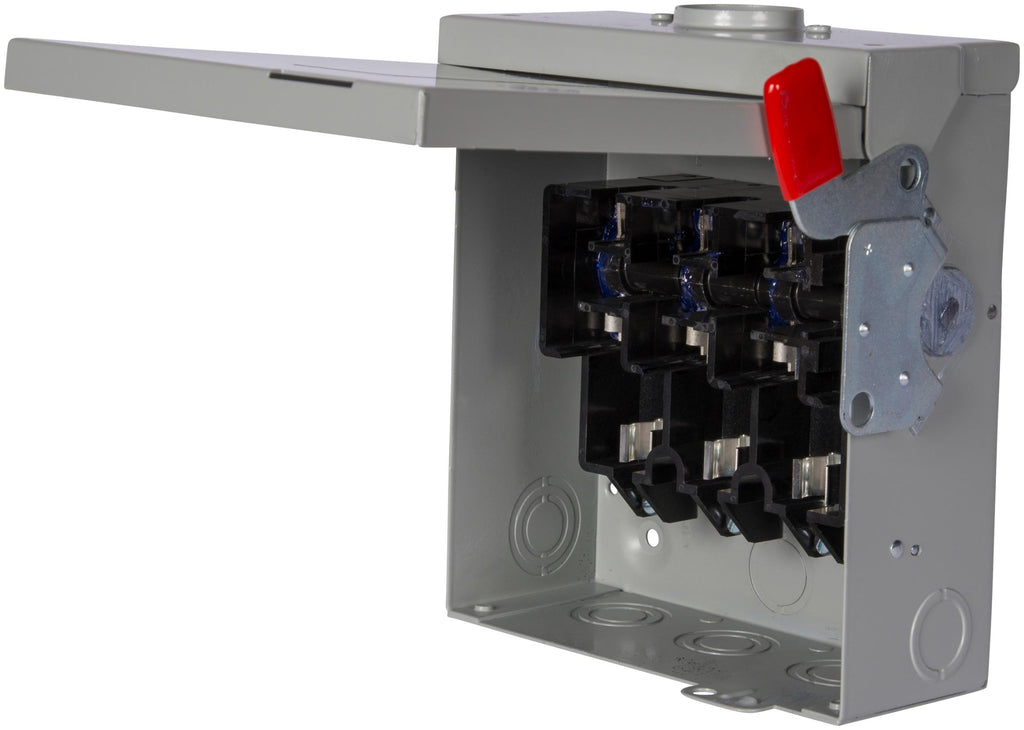

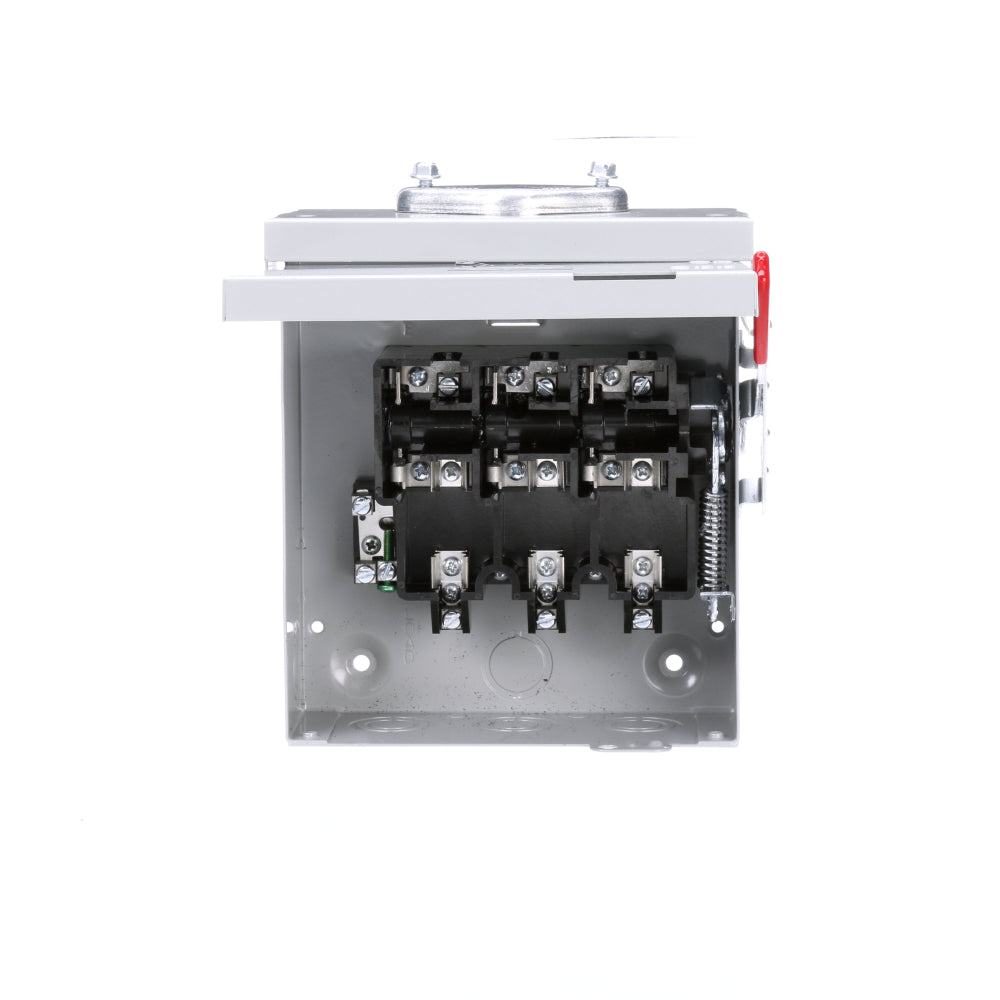

GF321NR - Siemens General Duty Fusible Safety Switch, 3-pole, 30A, 240VAC, NEMA 3R outdoor enclosure with solid neutral.This Siemens low voltage enclosed safety switch features a 3-pole, 4-wire design rated for 240VAC/250VDC at 30 amps. It is a single-throw fusible switch (3-fuses) in a surface-mount NEMA 3R steel enclosure for outdoor use, service entrance labeled, suitable for general duty applications.
- Amperage: 30A
- Voltage AC: 240V
- Voltage DC: 250V
- Poles: 3
- Wires: 4 (3-pole + solid neutral)
- Mounting Type: Surface
- Enclosure: NEMA 3R (outdoor)
- Fuse Type: Fusible (3-fuse, Class H/K/R/T)
- Horsepower Rating (Std fuse): 1-1/2 HP 1PH 2W, 3 HP 3PH 3W
- Horsepower Rating (Time delay fuse): 3 HP 1PH 2W, 7-1/2 HP 3PH 3W
Specifications
- Part Number: GF321NR
- Manufacturer : Siemens
- Brand : Siemens
- Category : Switch
- Item Subcategory : Disconnect
- Section : Fusible
- Family : VBII Series
- Type : GF
- Voltage : 240 AC
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 100kA@240V
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Fuse Class : R
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : Nema 3R
- Compatible Frames : MEP
Product Data
- UPC : 783643335196
- GTIN : 00783164001464
- Country of Origin : Mexico
- Dimensions : 4.724 x 7.874 x 7.874 inch
- Weight : 4.806
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Certification : UL listed
