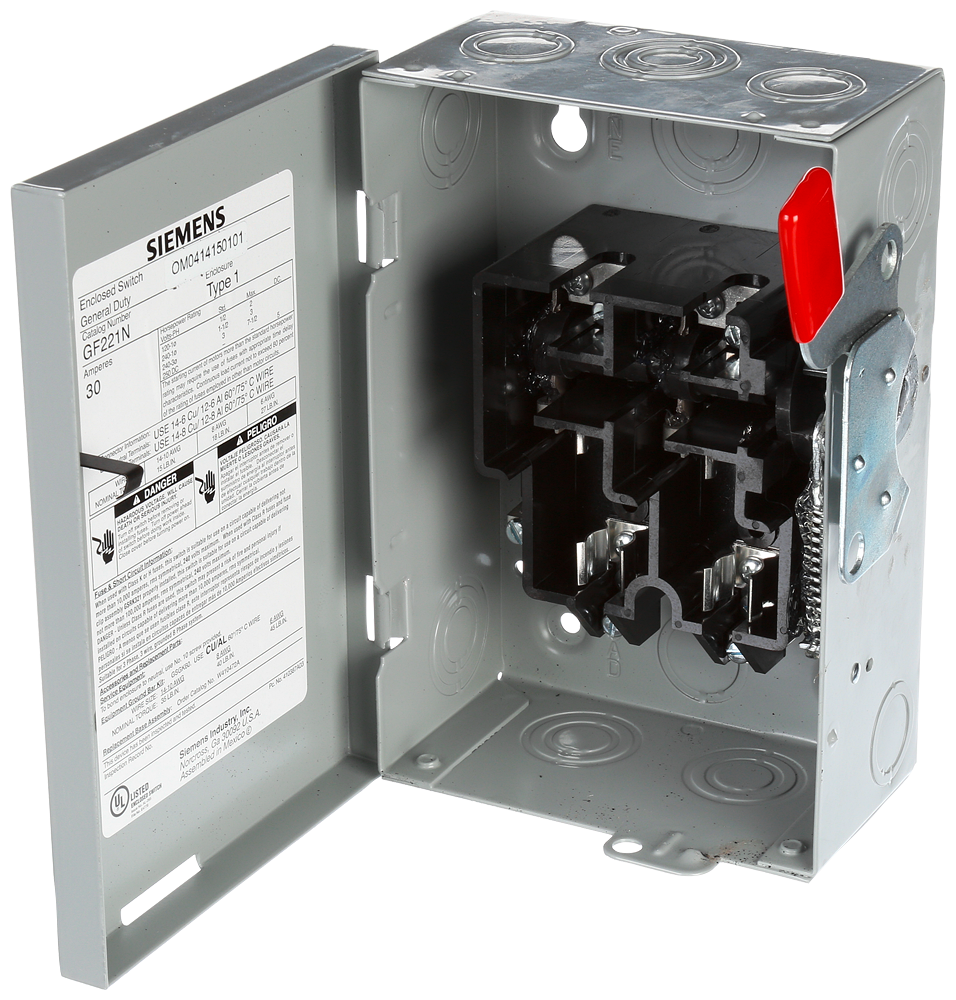

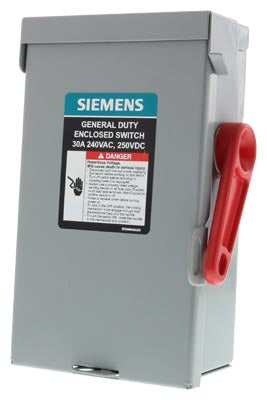

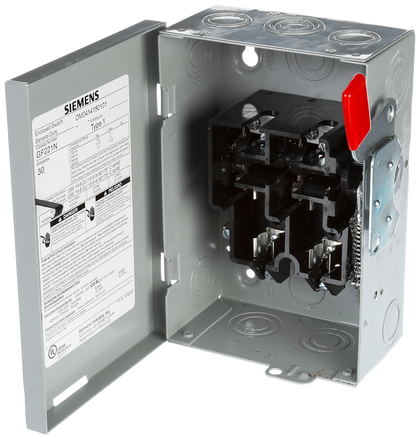

GF221NA Siemens Disconnect 5V Switch

GF221NA

GF221NA is a Siemens VBII general duty enclosed safety switch rated for 240 VAC, 30 amperes, 2 poles with fusible disconnect capability and NEMA Type 1 enclosure rating.

This double break safety switch features quick-make and quick-break switching action with visible blade design for easy on/off confirmation. The switch is rated 10,000 AIC with Class K or H fuses, or 100,000 AIC with Class R fuses. It meets UL 98 for switches, UL 50 for enclosures, and NEMA Standard KS-1 for enclosed switches. The unit is suitable for use as service entrance equipment and meets 2020 NEC 230.62 requirements with the addition of an optional line side barrier kit. Oversize lugs accommodate wire up to 2 AWG for easy termination.

• Manufacturer: Siemens
• Part Number: GF221NA
• Amperage: 30 A
• Voltage: 240 VAC
• Poles: 2
• Enclosure Type: NEMA 1
• Switch Type: Fusible, Double Break
• Interrupt Rating: 10,000 AIC (Class K/H fuses) or 100,000 AIC (Class R fuses)
• Standards: UL 98, UL 50, NEMA KS-1
• Material: Steel
• Series: A Series VBII

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: GF221NA
• Manufacturer : Siemens
• Brand : Siemens
• Category : Switch
• Item Subcategory : Disconnect
• Section : Fusible
• Family : VBII Series
• Voltage : 240 AC
• Amperage : 30
• Poles : 2
• AIC rating : 100kA@240V
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : Nema 1
• Compatible Frames : MEP

Product Data

• UPC : 804766753602
• GTIN : 00804766753602
• Country of Origin : Mexico
• Dimensions : 5.906 x 3.937 x 8.661 inch
• Weight : 2.998
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• Certification : UL listed
