Product Info
- Manufacturer:MERSEN USA EP CORP
Description
GDL8/10

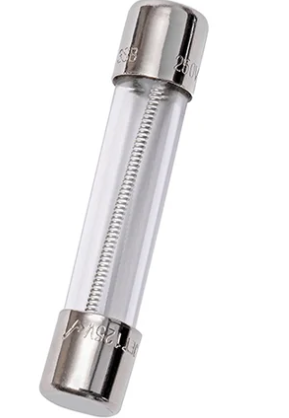

GDL8/10 is a time delay glass fuse rated for 8/10 amps and 250 volts AC, designed for reliable circuit protection.This miniature fuse features a glass body with a physical size of 1/4" x 1 1/4" and offers an interrupting rating of 35 AIC at 250VAC and 10,000 AIC at 125VAC. It is UL Listed and CSA Certified, ensuring compliance with safety standards.
- Key Specifications
- Amperage: 8/10 Amps
- Voltage Rating: 250 Volts AC
- Fuse Type: Time Delay Glass Fuse
- Physical Size: 1/4" diameter x 1 1/4" length
- Interrupting Rating: 35 AIC @ 250VAC
- Interrupting Rating: 10,000 AIC @ 125VAC
- Certifications: UL Listed, CSA Certified
- Mounting Type: Clip
- Fuse Class: Supplemental
Specifications
- Part Number: GDL8/10
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Type : GDL Series
- Voltage : 250
- Amperage : 0.8
Product Data
- UPC : 782001763374
- GTIN : 00051712627542
- Country of Origin : China
- Dimensions : x 1-1/4" x
- Weight : 5.19
- Certification : CSA, UL
