Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
GDL5

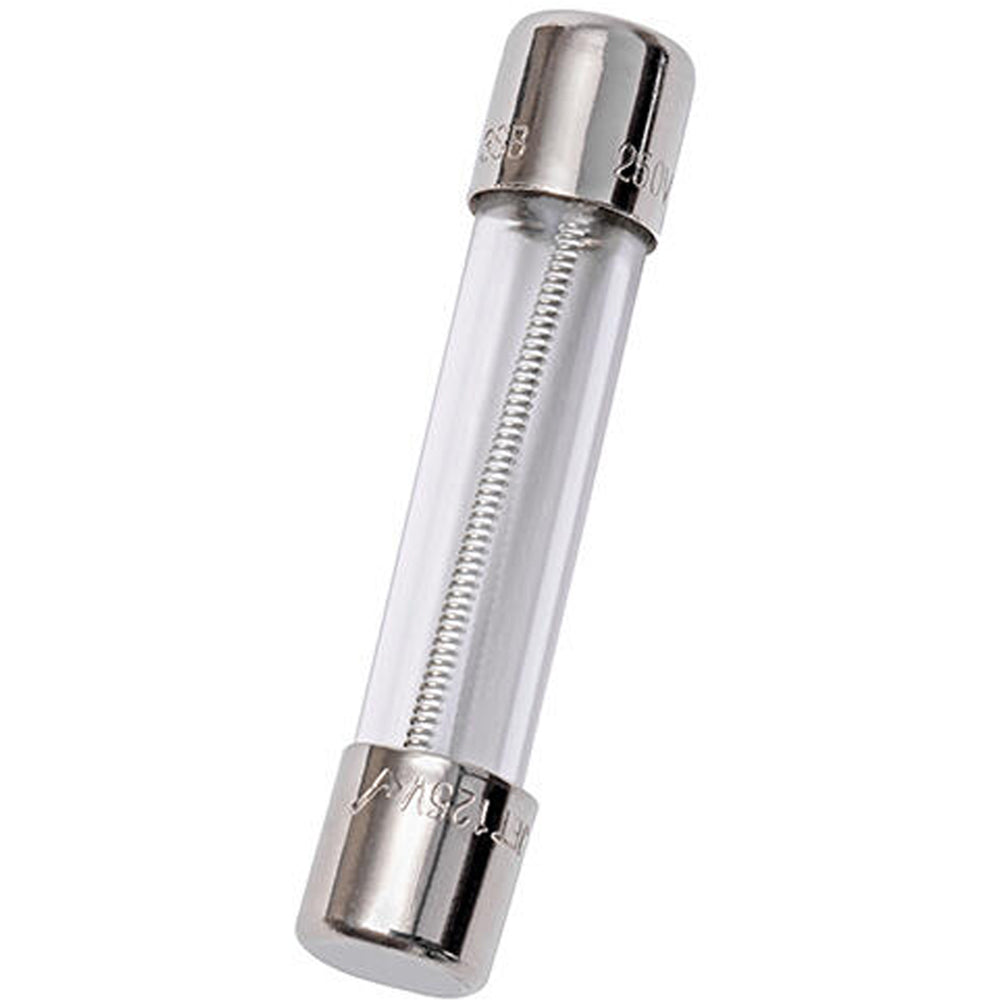

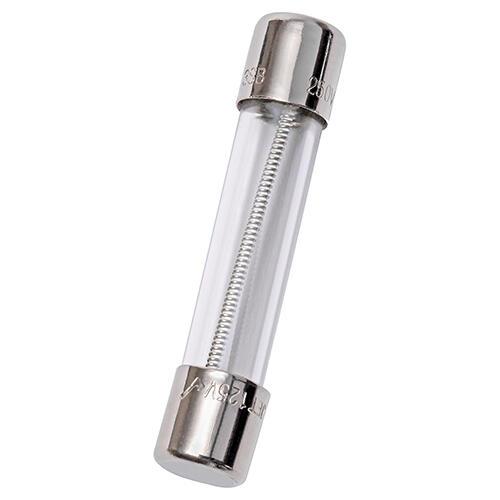

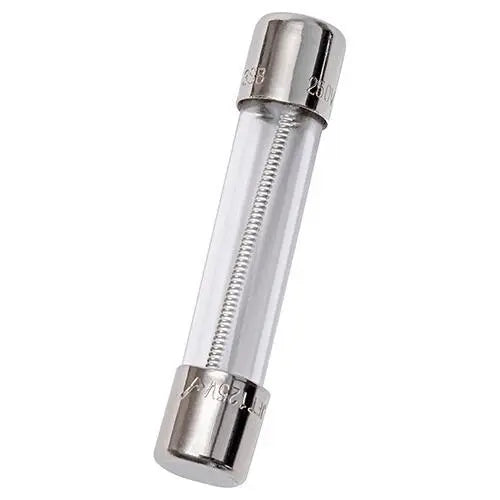

GDL5 is a 5 amp, 250 volt time-delay miniature glass fuse designed for clip mounting in low-current circuits.This Eaton GDL5 fuse features a 6.3x32 mm (1/4 inch x 1-1/4 inch) cylindrical glass body with a ferrule connection terminal. It is rated for 5 amps and 250 volts AC with a 200 amp interrupt rating, providing reliable overcurrent protection with a time-delay characteristic suitable for electronic applications. The fuse is UL recognized, CSA approved, and RoHS compliant.
- Amperage Rating: 5 A
- Voltage Rating: 250 V AC
- Fuse Size: 6.3 x 32 mm (1/4 in x 1-1/4 in)
- Mounting Type: Clip
- Interrupt Rating: 200 AIC
- Fuse Type: Time-Delay
- Body Material: Glass
- Connection Type: Ferrule
- Fuse Class: Supplemental
- Certifications: UL, CSA, RoHS Compliant
Specifications
- Part Number: GDL5
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Type : GDL
- Voltage : 250
- Amperage : 5
- AIC rating : 200A@250V
- Diameter : 0.25
- Barrels : 1
- Velocity : Time Delay
Product Data
- UPC : 782001763336
- GTIN : 00782001763336
- Country of Origin : China
- Dimensions : x 1-1/4" x
- Weight : 0.6
- Certification : CSA, UL
