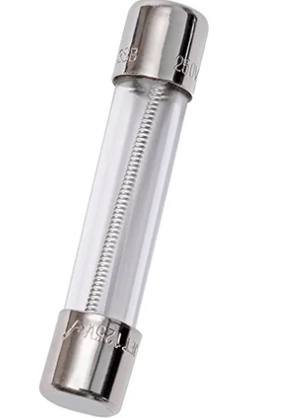

GDL3-1/2 - Mersen 3.5A 250VAC Time Delay Miniature Fuse Glass Body Clip Mount

GDL3-1/2

GDL3-1/2 is a Mersen miniature time-delay fuse rated at 3.5 amps and 250 volts AC with a glass body and clip mounting.This fuse features a time-delay characteristic suitable for electronic applications, with a 1/4" x 1 1/4" glass body and ferrule terminal type. It is UL Listed and CSA Certified for safety and reliability, with an interrupting rating of 100 AIC at 250VAC. The fuse is supplemental class, designed for clip mounting, and RoHS compliant.

Key Specifications
• Amperage: 3.5 A
• Voltage Rating: 250 VAC
• Fuse Type: Miniature Time Delay
• Body Material: Glass
• Mounting Type: Clip
• Terminal Type: Ferrule
• Interrupt Rating: 100 AIC @ 250VAC
• Fuse Class: Supplemental
• Certifications: UL Listed, CSA Certified
• Size: 1/4" x 1 1/4" (6.3 x 32 mm)
• RoHS Compliant: Yes

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: GDL3-1/2
• Brand : Mersen
• Category : Fuse
• Type : GDL Series
• Voltage : 250
• Amperage : 3.5

Product Data

• UPC : 006893823351
• GTIN : 00068938233518
• Weight : 0.08
