Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
GDL2

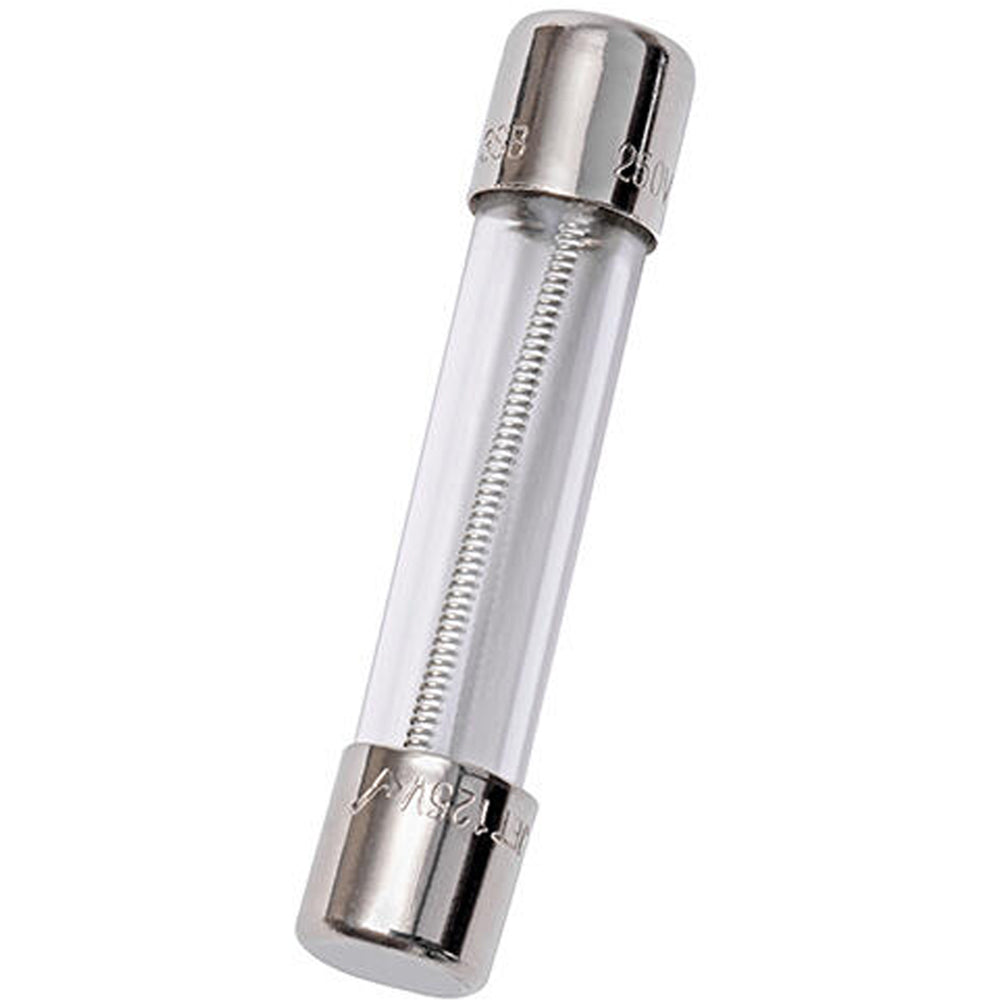

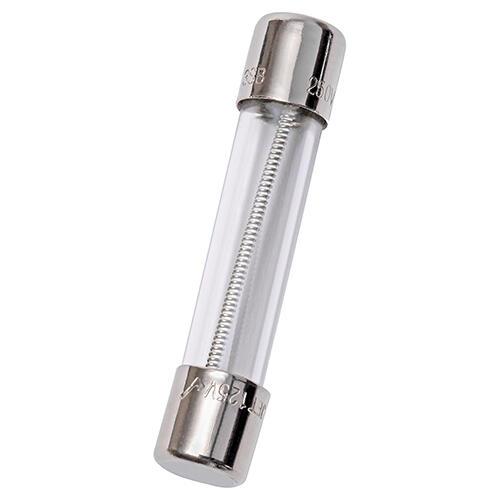

GDL2 is a 2 amp, 250 volt AC time-delay miniature glass fuse designed for low-current circuit protection.This Mersen Ferraz Shawmut GDL2 fuse features a glass tube body with ferrule terminals, measuring 1/4 inch diameter by 1-1/4 inch length. It offers a 250 VAC voltage rating and time-delay characteristics suitable for protecting appliances, electronics, and lighting circuits. The fuse is UL and CSA certified with an interrupt rating of 35 AIC at 250 VAC and 10,000 AIC at 125 VAC.
- Key Specifications
- Amperage: 2 A
- Voltage Rating: 250 VAC
- Fuse Type: Time-Delay
- Body Style: Glass Tube
- Size: 1/4 inch diameter x 1-1/4 inch length (6.3 x 32 mm)
- Terminal Type: Ferrule
- Interrupt Rating: 35 AIC @ 250 VAC, 10,000 AIC @ 125 VAC
- Certifications: UL Listed, CSA Certified
- Series: GDL
- Mounting Type: Fuse Block (Non-Rejection)
Specifications
- Part Number: GDL2
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Type : GDL
- Voltage : 250
- Amperage : 2
- AIC rating : 100A@250V
- Diameter : 0.25
- Barrels : 1
- Velocity : Time Delay
Product Data
- UPC : 782001763268
- GTIN : 00782001763268
- Country of Origin : China
- Dimensions : x 1-1/4" x
- Weight : 5
- Certification : CSA, UL
