Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

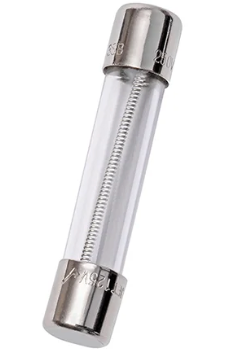

GDL2-1/2
GDL2-1/2 is a 2.5 amp, 250 volt time delay miniature fuse with a cylindrical glass body designed for reliable circuit protection.This fuse features a 1 1/4 inch overall length and 1/4 inch diameter glass body, providing time delay characteristics suitable for protecting sensitive electronic equipment. It has an interrupting rating of 100A at 250V AC and 10kA at 125V AC, making it capable of safely interrupting fault currents. The fuse is UL listed and CSA certified, ensuring compliance with industry safety standards.
- Key Specifications
- Amperage: 2.5 A
- Voltage Rating: 250 V AC
- Fuse Type: Time Delay
- Body Material: Glass
- Body Style: Cylindrical
- Overall Length: 1 1/4 inch (32 mm)
- Diameter: 1/4 inch (6 mm)
- Interrupting Rating: 100 A @ 250 V AC, 10 kA @ 125 V AC
- Poles: Single element
- Mounting Type: Clip mount compatible
- Certifications: UL Listed, CSA Certified
Specifications
- Part Number: GDL2-1/2
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Type : GDL
- Voltage : 250
- Amperage : 2
- AIC rating : 100A@250V
- Diameter : 0.25
- Barrels : 1
- Velocity : Time Delay
Product Data
- UPC : 782001763282
- GTIN : 00782001763282
- Country of Origin : China
- Dimensions : x 1-1/4" x
- Weight : 0.01
- Certification : UL, CSA
