Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
GDG8/100

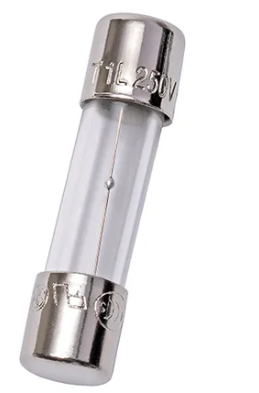

GDG8/100 is a supplemental, time-delay miniature glass fuse designed for electronic circuit protection.
This Eaton fuse features a 5x20mm glass body with ferrule terminals, offering reliable overcurrent protection in a compact form factor. It is suitable for applications requiring a slow-blow response to inrush currents and is recognized by UL and CSA for safety compliance.
-
Key Specifications
- Amperage: 0.08A
- Voltage: 250VAC
- Poles: Not applicable (single element fuse)
- Mounting Type: Ferrule (clip/holder)
- Interrupt Rating: 35A at 250VAC
- Series/Frame: GDG
- Trip Unit: Time-delay (slow-blow)
- Certifications: UL & CSA recognized
- Body Material: Glass
- Physical Size: 5mm x 20mm
- Application: Supplemental protection for electronic circuits
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: GDG8/100
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : GDG Series
- Type : GDG
- Voltage : 250
- Amperage : 8
- AIC rating : 35kA@250Vac
- Connection : Ferrule
- Diameter : 5
Product Data
- UPC : 78200129539
- GTIN : 00782001295394
- Weight : 0.15
