Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
GDG7

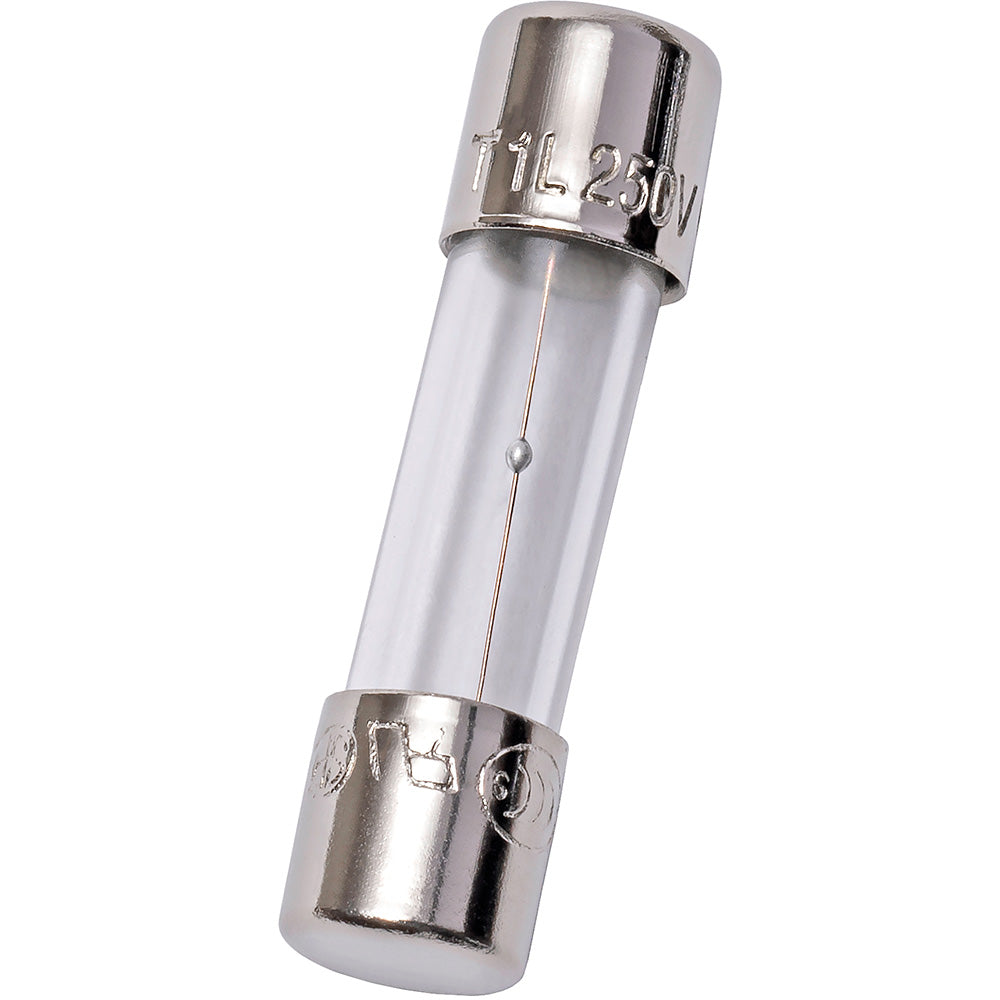

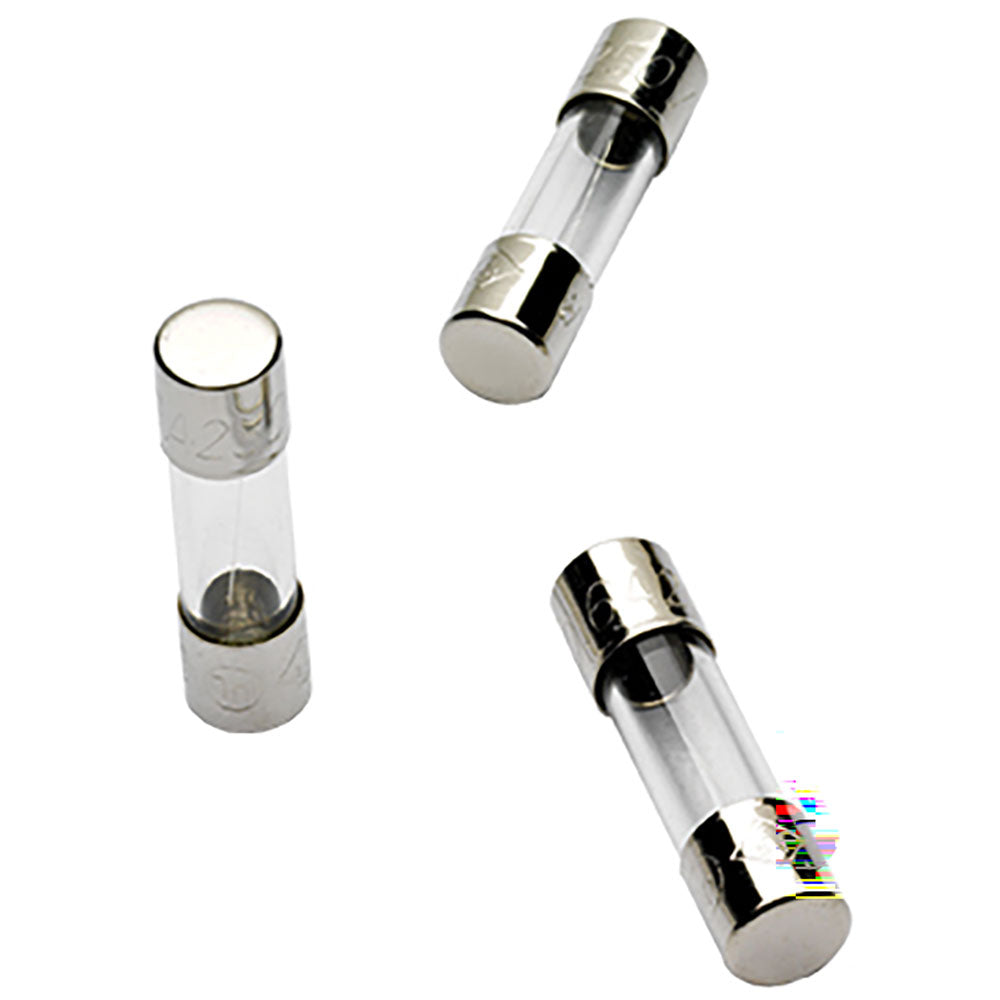

GDG7 is a 7A, 250VAC time delay glass fuse designed for supplemental protection in a variety of electrical circuits. This 5x20mm fuse features a glass body and is recognized by UL and CSA for reliable performance. The GDG7 fuse is engineered for applications requiring time delay characteristics, making it suitable for protecting sensitive equipment from inrush currents. Its compact size and glass construction provide efficient circuit protection in a small footprint.
- Part Number: GDG7
- Manufacturer: Eaton
- Amperage: 7A
- Voltage Rating: 250VAC
- Body Material: Glass
- Physical Size: 5mm x 20mm
- Fuse Class: Supplemental
- Speed Type: Time Delay
- Interrupting Rating: 70 AIC @ 250VAC
- Mounting: Clip
- Certifications: UL, CSA Recognized
- Series: GDG
Specifications
- Part Number: GDG7
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : GDG Series
- Type : GDG
- Voltage : 250
- Amperage : 7
- AIC rating : 80kA@250Vac
- Connection : Ferrule
- Diameter : 5
Product Data
- UPC : 06893828000
- GTIN : 00068938280000
- Weight : 0.08
- Certification : Ul Listed Csa Certified
