Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
GDG2/10

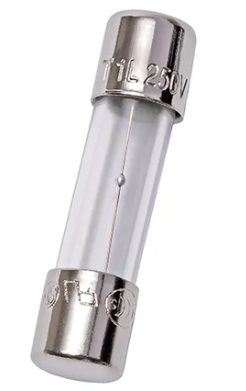

GDG2/10 is a miniature time-delay glass fuse rated for 0.2 amps and 250 volts AC with a 5x20mm ferrule size.
This Eaton Mersen fuse features a glass body with ferrule terminals, designed for supplemental circuit protection. It is UL and CSA recognized, providing reliable time-delay performance suitable for protecting sensitive electronic equipment. The fuse has a 35 amp interrupting rating at 250VAC and complies with RoHS standards.
- Amperage Rating: 0.2 A
- Voltage Rating: 250 VAC
- Fuse Type: Time-Delay
- Material: Glass Body
- Terminal Type: Ferrule
- Size: 5 x 20 mm
- Interrupting Rating: 35 AIC @ 250 VAC
- Certifications: UL and CSA Recognized
- Mounting Type: Clip
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: GDG2/10
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : GDG Series
- Type : GDG
- Voltage : 250
- Amperage : 2
- AIC rating : 35kA@250Vac
- Connection : Ferrule
- Diameter : 5
Product Data
- UPC : 78200176433
- GTIN : 00782001764333
- Weight : 0.15
