Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
GDG1

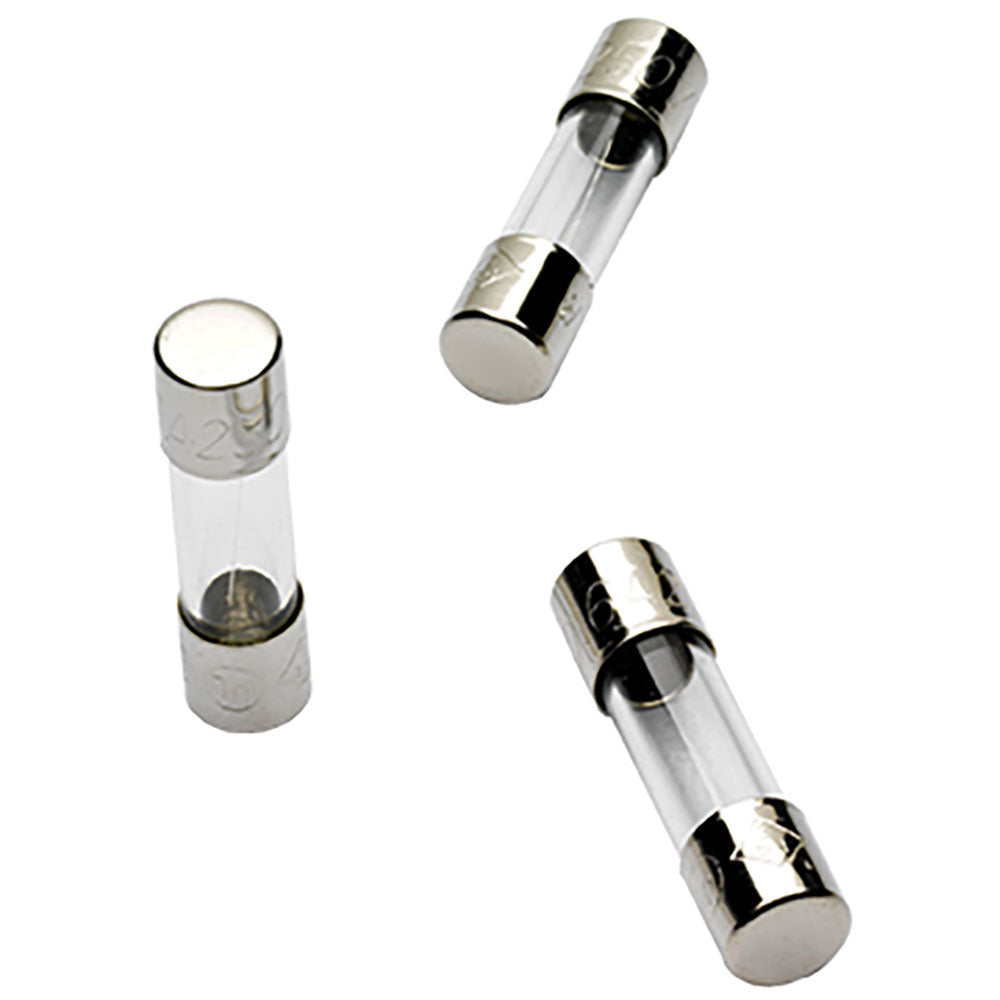

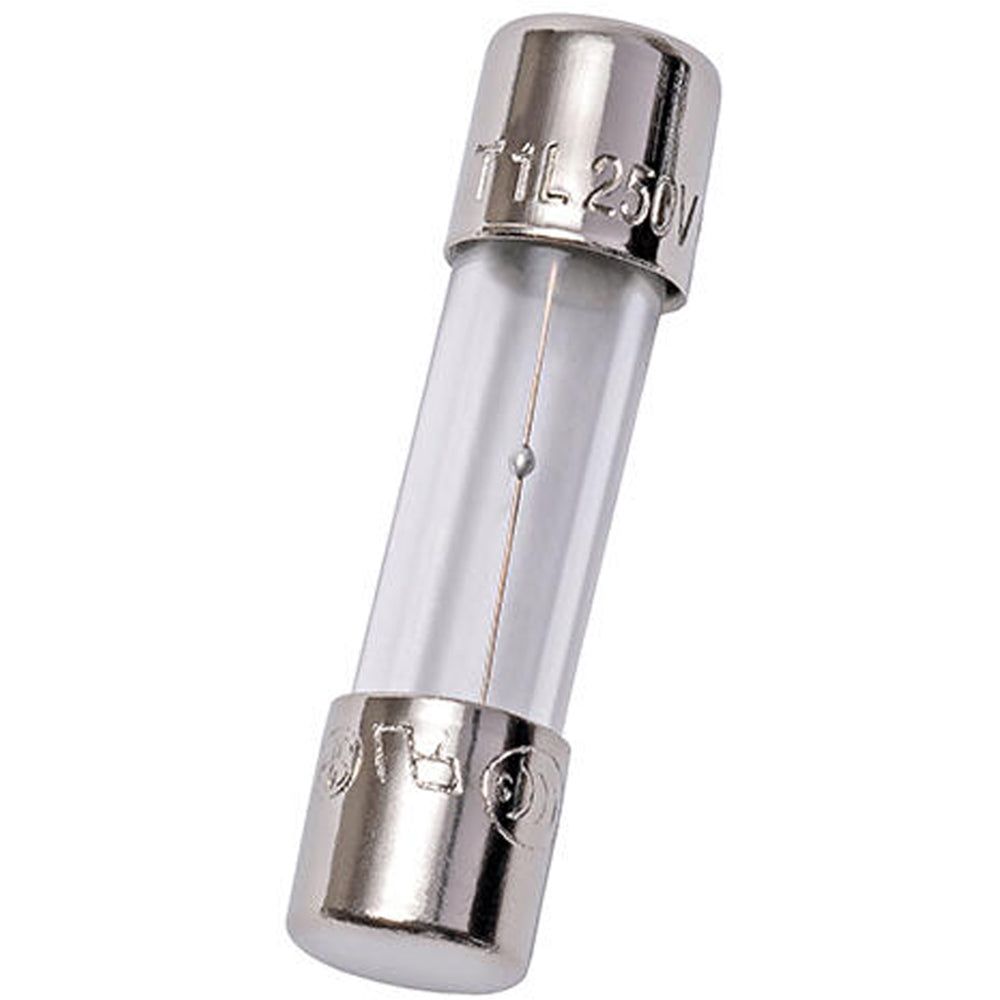

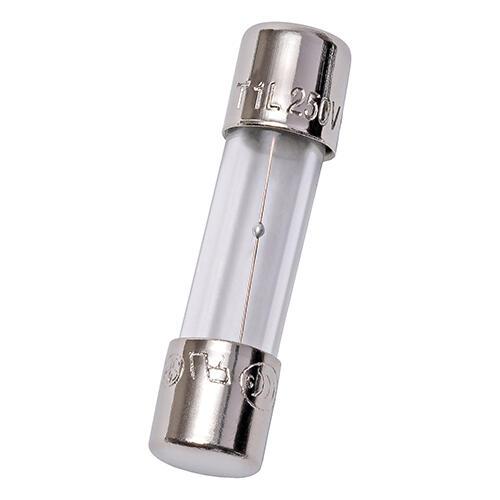

GDG1 is a 1.25 amp, 250 volt AC time-delay glass fuse designed for miniature fuse applications.This Eaton GDG1 fuse features a cylindrical glass body measuring 5x20mm with a ferrule connection type and clip mounting. It offers a 35 amp interrupt rating at 250 volts AC, suitable for protecting electronic circuits with time-delay characteristics. The fuse complies with RoHS standards and is UL, CSA, SEMKO, and VDE recognized, meeting IEC 127-2 Sheet 3 requirements.
- Amperage: 1.25A
- Voltage Rating: 250V AC
- Poles: Single
- Mounting Type: Clip
- Interrupt Rating: 35A at 250V AC
- Series/Frame: GDG
- Body Style: Cylindrical Glass
- Connection Type: Ferrule
- Speed: Time-Delay
- Certifications: UL, CSA, SEMKO, VDE, RoHS
- Dimensions: 5mm diameter x 20mm length
Specifications
- Part Number: GDG1
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : GDG Series
- Type : GDG
- Voltage : 250
- Amperage : 1
- AIC rating : 35kA@250Vac
- Connection : Ferrule
- Diameter : 5
Product Data
- UPC : 078200176440
- GTIN : 00782001764401
- Weight : 0.005
