Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
GDG1/32

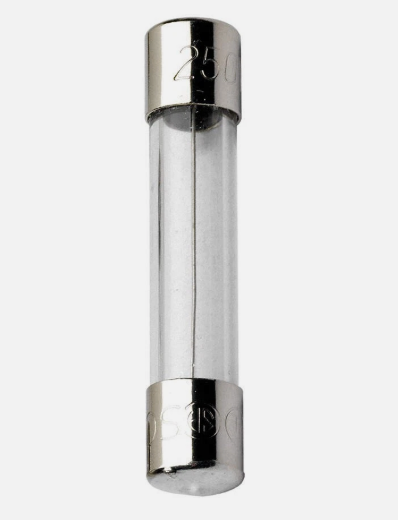

GDG1/32 is a 0.031 amp, 250 volt AC time-delay glass fuse designed for supplemental protection in electronic circuits.This Eaton GDG series fuse features a 5 mm x 20 mm cylindrical glass body with ferrule connection terminals and clip mounting. It has a time-delay characteristic suitable for applications requiring temporary current surges without blowing. The fuse is rated for 35 amp interrupt capacity at 250 volts AC and complies with UL and CSA recognition standards. It is RoHS compliant and designed to IEC 60127-2 standards.
- Key Specifications
- Amperage: 0.031 A
- Voltage Rating: 250 V AC
- Fuse Type: Time-Delay (Slow Blow)
- Fuse Size: 5 mm x 20 mm
- Interrupt Rating: 35 A at 250 V AC
- Body Material: Glass
- Mounting Type: Clip
- Connection Type: Ferrule
- Fuse Class: Supplemental
- Certifications: UL & CSA Recognized, RoHS Compliant
Specifications
- Part Number: GDG1/32
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : GDG Series
- Type : GDG
- Voltage : 250
- Amperage : 1
- AIC rating : 35kA@250Vac
- Connection : Ferrule
- Diameter : 5
Product Data
- UPC : 78200129535
- GTIN : 00782001295356
- Weight : 0.005
