Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
GD3090

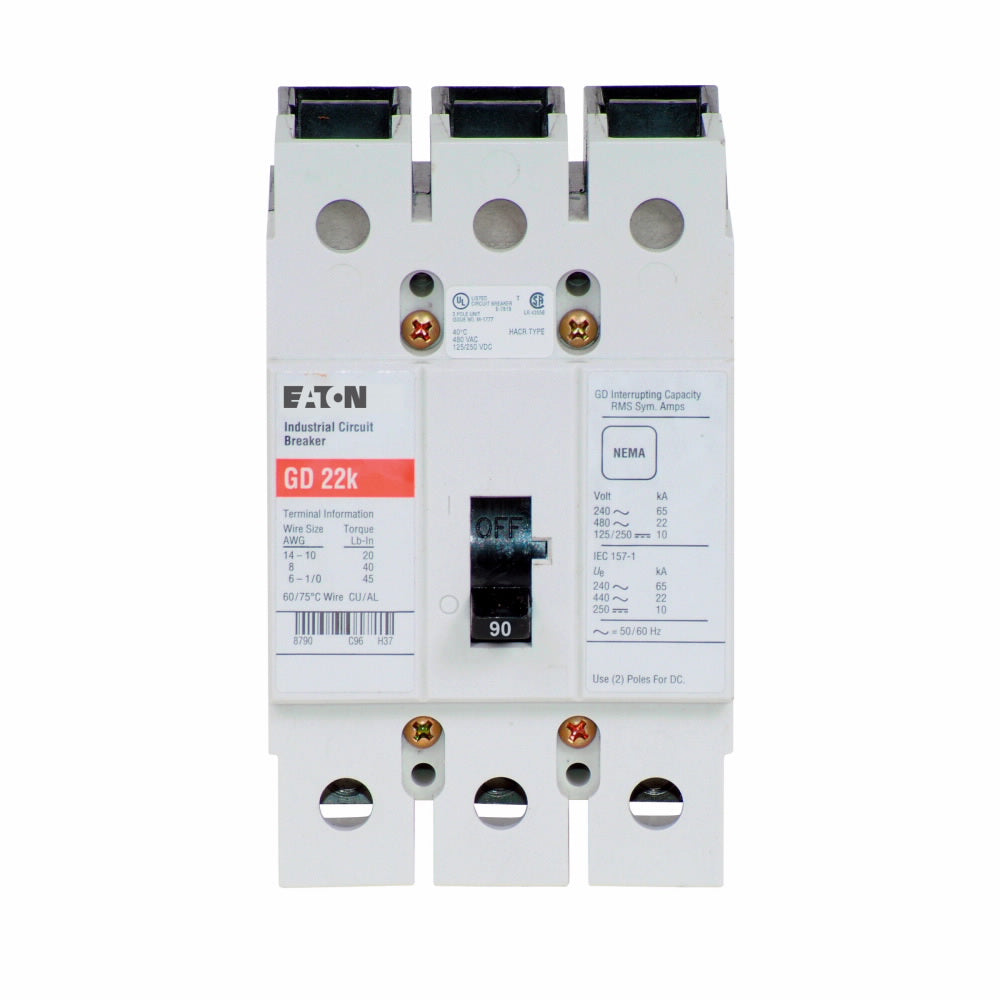

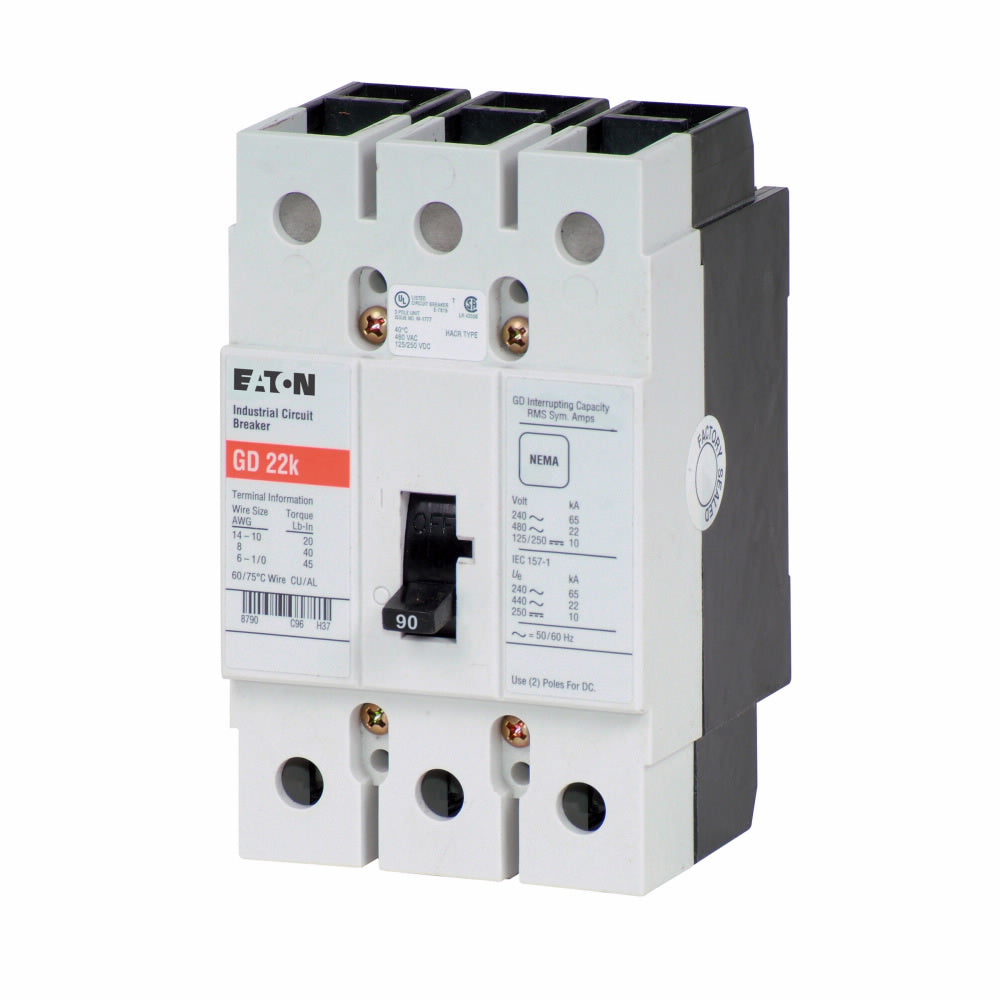

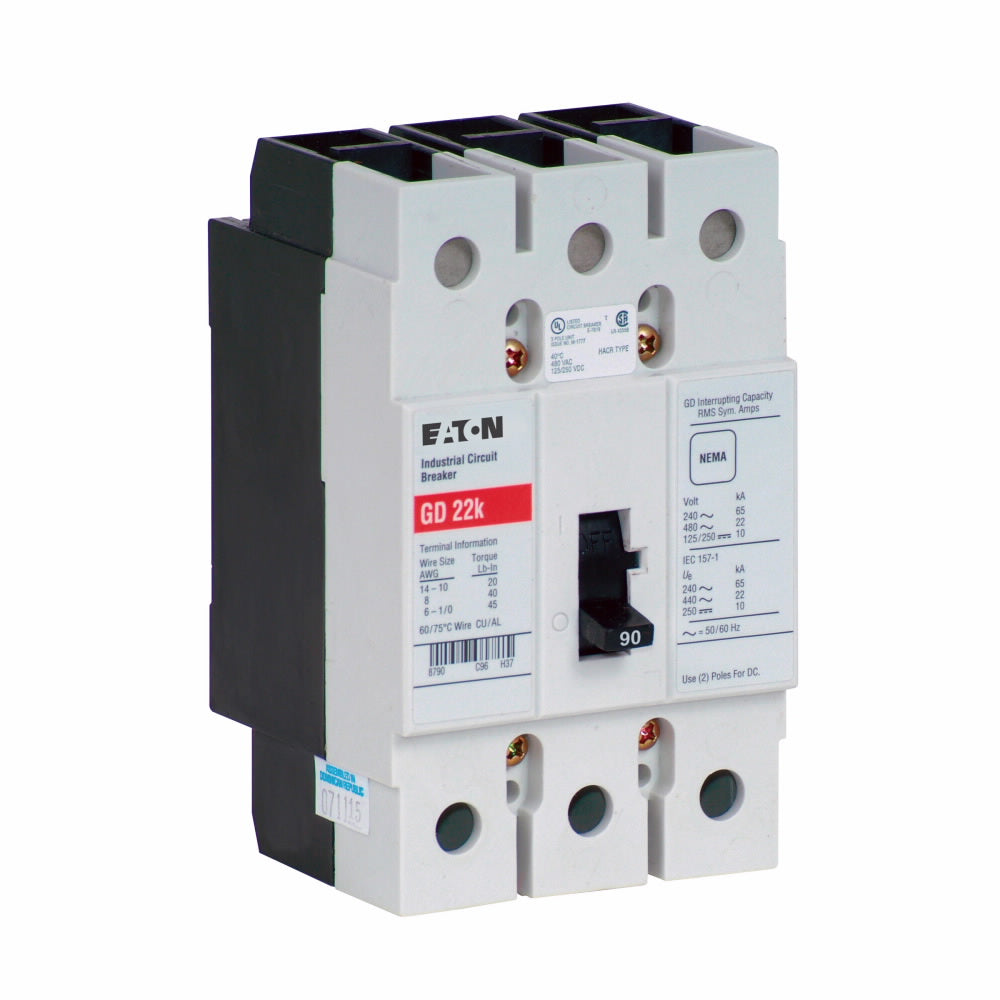

GD3090 is a Cutler Hammer molded case circuit breaker designed for reliable power distribution in commercial and industrial applications.
This 3-pole, 90A, 480VAC/250VDC circuit breaker features a G-frame design, fixed thermal/magnetic trip unit, and panel mounting. It offers a 22kA interrupting capacity at 480VAC, meets UL 489 standards, and is CSA and UL listed for safety and compliance.
-
Key Specifications
- Part Number: GD3090
- Manufacturer: Cutler Hammer (Eaton)
- Amperage: 90A
- Voltage: 480VAC, 250VDC
- Poles: 3
- Mounting Type: Panel
- Interrupt Rating: 22kA @ 480VAC
- Series/Frame: C Series, G-Frame
- Trip Unit: Fixed Thermal / Fixed Magnetic
- Certifications: UL 489, CSA, UL
- Termination: Includes line and load terminal lugs
- Standard Interrupting Capacity
- Feed-thru design
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: GD3090
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : GD
- Voltage : 480
- Amperage : 90
- Phase : 3
- Poles : 3
- AIC rating : 22kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : G Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 786679231227
- GTIN : 00786679231227
- Country of Origin : Dominican Republic
- Dimensions : 2.63 in x 4.88 in x 3 in (Length/Depth x Height x Width)
- Weight : 2.1
- Certification : UL Listed
